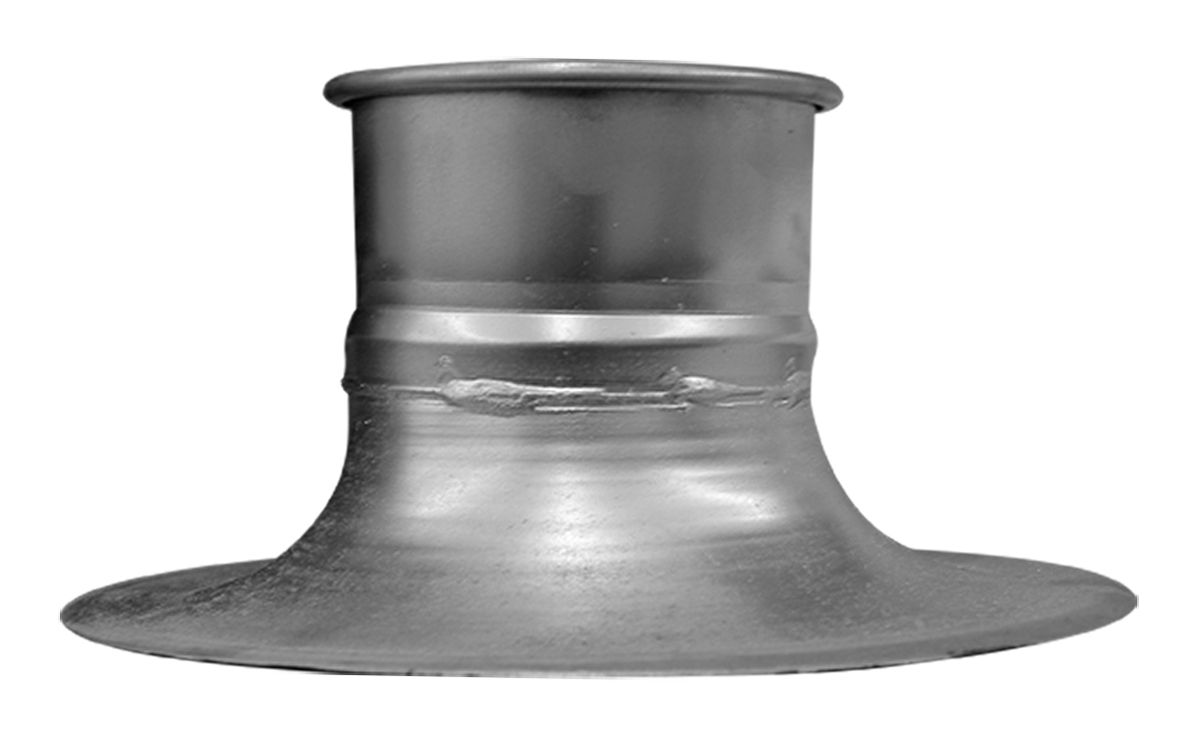

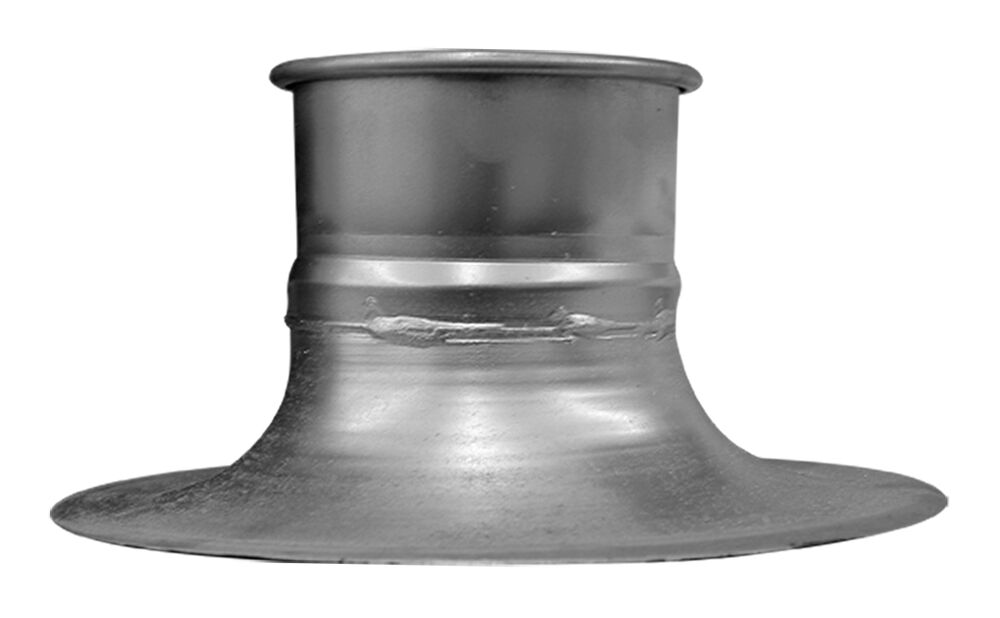

Nordfab’s QF® Bell Mouth Hood has a flared end to increase the capture ratio of air, dust, and smoke as well as increase laminar air flow. The QF (rolled edge) end allows quick connection to Nordfab duct fittings.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes, end options, and material / gauge options.
Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
| ø A in | Material | Thickness | Length (in) | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|
| 3 | Galv | 20ga | 0.9 | 3251-0300-100000 | 8010004355 | |
| 4 | Galv | 20ga | 1.05 | 3251-0400-100000 | 8010004356 | |
| 5 | Galv | 20ga | 1.15 | 3251-0500-100000 | 8010004357 | |
| 6 | Galv | 20ga | 1.85 | 3251-0600-100000 | 8010004358 | |
| 7 | Galv | 20ga | 1.95 | 3251-0700-100000 | 8010004359 | |
| 8 | Galv | 20ga | 2.1 | 3251-0800-100000 | 8010004360 | |
| 9 | Galv | 20ga | 2.25 | 3251-0900-100000 | 8010004361 | |
| 10 | Galv | 20ga | 3 | 3251-1000-100000 | 8010004340 | |
| 11 | Galv | 20ga | 3.7 | 3251-1100-100000 | 8010004341 | |
| 12 | Galv | 20ga | 4.1 | 3251-1200-100000 | 8010004342 | |
| 13 | Galv | 20ga | 4.5 | 3251-1300-100000 | 8010004343 | |
| 14 | Galv | 20ga | 5.75 | 3251-1400-100000 | 8010004344 | |
| 15 | Galv | 20ga | 6.25 | 3251-1500-100000 | 8010004345 | |
| 16 | Galv | 20ga | 7.5 | 3251-1600-100000 | 8010004346 | |
| 17 | Galv | 20ga | 8.25 | 3251-1700-100000 | 8010004347 | |
| 18 | Galv | 20ga | 9.5 | 3251-1800-100000 | 8010004348 | |
| 19 | Galv | 20ga | 10.1 | 3251-1900-100000 | 8010004349 | |
| 20 | Galv | 20ga | 10.75 | 3251-2000-100000 | 8010004350 | |
| 21 | Galv | 20ga | 11.5 | 3251-2100-100000 | 8010004351 | |
| 22 | Galv | 20ga | 12.25 | 3251-2200-100000 | 8010004352 | |
| 23 | Galv | 20ga | 12.9 | 3251-2300-100000 | 8010004353 | |
| 24 | Galv | 20ga | 14.5 | 3251-2400-100000 | 8010004354 | |
| 3 | 304SS | 20ga | 0.9 | 3251-0300-200000 | 8010004333 | |
| 4 | 304SS | 20ga | 1.05 | 3251-0400-200000 | 8010004334 | |
| 5 | 304SS | 20ga | 1.15 | 3251-0500-200000 | 8010004335 | |
| 6 | 304SS | 20ga | 1.85 | 3251-0600-200000 | 8010004336 | |
| 7 | 304SS | 20ga | 1.95 | 3251-0700-200000 | 8010004337 | |
| 8 | 304SS | 20ga | 2.1 | 3251-0800-200000 | 8010004338 | |
| 9 | 304SS | 20ga | 2.25 | 3251-0900-200000 | 8010004339 | |
| 10 | 304SS | 20ga | 3 | 3251-1000-200000 | 8010004318 | |
| 11 | 304SS | 20ga | 3.7 | 3251-1100-200000 | 8010004319 | |
| 12 | 304SS | 20ga | 4.1 | 3251-1200-200000 | 8010004320 | |
| 13 | 304SS | 20ga | 4.5 | 3251-1300-200000 | 8010004321 | |
| 14 | 304SS | 20ga | 5.75 | 3251-1400-200000 | 8010004322 | |
| 15 | 304SS | 20ga | 6.25 | 3251-1500-200000 | 8010004323 | |
| 16 | 304SS | 20ga | 7.5 | 3251-1600-200000 | 8010004324 | |
| 17 | 304SS | 20ga | 8.25 | 3251-1700-200000 | 8010004325 | |
| 18 | 304SS | 20ga | 9.5 | 3251-1800-200000 | 8010004326 | |
| 19 | 304SS | 20ga | 10.1 | 3251-1900-200000 | 8010004327 | |
| 20 | 304SS | 20ga | 10.75 | 3251-2000-200000 | 8010004328 | |
| 21 | 304SS | 20ga | 11.5 | 3251-2100-200000 | 8010004329 | |
| 22 | 304SS | 20ga | 12.25 | 3251-2200-200000 | 8010004330 | |
| 23 | 304SS | 20ga | 12.9 | 3251-2300-200000 | 8010004331 | |
| 24 | 304SS | 20ga | 14.5 | 3251-2400-200000 | 8010004332 |
