Quick-Fit® Long Radius Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation. Learn more about the advantages of Quick-Fit ducting.

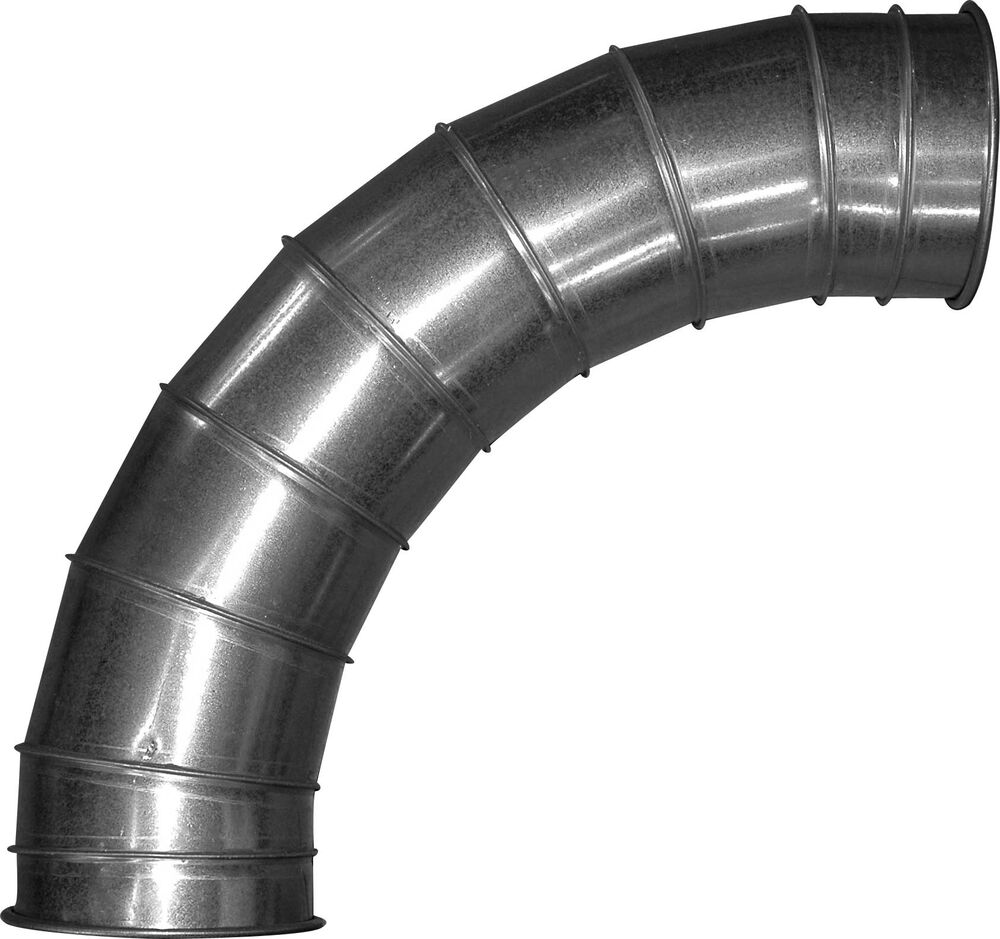

Long Radius Nordfab QF® elbows, also referred to as Bends, are available in 90°, 60°, 45°, and 30° with radiuses of 1.5 or 2.5. Standard elbows are also available with radiuses of 1.0 or 1.5.
Galvanized QF Elbows in sizes 3″-7″ are press formed halves stitch welded together. QF elbows in sizes 8″-24″ are segmented (gored). Stainless steel QF Elbows sizes 3″-6″ are tubed.
Elbows in heavier gauges can be supplied in solid welded construction at an additional cost. For highly abrasive applications or placement in a high wear area within the duct line, Nordfab long radius elbows in 14 gauge steel construction or 12 gauge may be the solution to reduce the frequency and cost of replacing worn-through elbows.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| Request a Quote |
|---|
| Download our Elbows Product Data sheet |
| Download our QF Elbow Revit® families |
Download our Elbows Product Data sheet
If you need flanged connections or larger sizes than those shown below, please see our flanged elbow options
| ø A in | Angle degree | Center line radius | Material | Thickness | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 3 | 90 | 1.5 | Galv | 24ga | 0.9 | 3210-0390-104500 | 8010005954 |
| 3 | 60 | 1.5 | Galv | 24ga | 0.65 | 3210-0360-104500 | 8010005953 |
| 3 | 45 | 1.5 | Galv | 24ga | 0.9 | 3210-0345-104500 | 8010005952 |
| 3 | 30 | 1.5 | Galv | 24ga | 0.8 | 3210-0330-104500 | 8010005951 |
| 4 | 90 | 1.5 | Galv | 24ga | 1 | 3210-0490-106000 | 8010005958 |
| 4 | 60 | 1.5 | Galv | 24ga | 0.8 | 3210-0460-106000 | 8010005957 |
| 4 | 45 | 1.5 | Galv | 24ga | 1.05 | 3210-0445-106000 | 8010005956 |
| 4 | 30 | 1.5 | Galv | 24ga | 0.96 | 3210-0430-106000 | 8010005955 |
| 5 | 90 | 1.5 | Galv | 24ga | 1.2 | 3210-0590-107500 | 8010005962 |
| 5 | 60 | 1.5 | Galv | 24ga | 1.15 | 3210-0560-107500 | 8010005961 |
| 5 | 45 | 1.5 | Galv | 24ga | 1.6 | 3210-0545-107500 | 8010005960 |
| 5 | 30 | 1.5 | Galv | 24ga | 1.4 | 3210-0530-107500 | 8010005959 |
| 6 | 90 | 1.5 | Galv | 24ga | 1.5 | 3210-0690-109000 | 8010005966 |
| 6 | 60 | 1.5 | Galv | 24ga | 1.35 | 3210-0660-109000 | 8010005965 |
| 6 | 45 | 1.5 | Galv | 24ga | 2.2 | 3210-0645-109000 | 8010005964 |
| 6 | 30 | 1.5 | Galv | 24ga | 1.8 | 3210-0630-109000 | 8010005963 |
| 7 | 90 | 1.5 | Galv | 24ga | 2.2 | 3210-0790-110500 | 8010005970 |
| 7 | 60 | 1.5 | Galv | 24ga | 1.65 | 3210-0760-110500 | 8010005969 |
| 7 | 45 | 1.5 | Galv | 24ga | 2.9 | 3210-0745-110500 | 8010005968 |
| 7 | 30 | 1.5 | Galv | 24ga | 2.6 | 3210-0730-110500 | 8010005967 |
| 8 | 90 | 2.5 | Galv | 22ga | 6.1 | 3210-0890-120000 | 8040400852 |
| 8 | 60 | 2.5 | Galv | 22ga | 4.4 | 3210-0860-120000 | 8040400851 |
| 8 | 45 | 2.5 | Galv | 22ga | 7.65 | 3210-0845-120000 | 8040400850 |
| 8 | 30 | 2.5 | Galv | 22ga | 5.56 | 3210-0830-120000 | 8040400849 |
| 9 | 90 | 2.5 | Galv | 22ga | 7.6 | 3210-0990-122500 | 8040400856 |
| 9 | 60 | 2.5 | Galv | 22ga | 5.5 | 3210-0960-122500 | 8040400855 |
| 9 | 45 | 2.5 | Galv | 22ga | 10.87 | 3210-0945-122500 | 8040400854 |
| 9 | 30 | 2.5 | Galv | 22ga | 7.79 | 3210-0930-122500 | 8040400853 |
| 10 | 90 | 2.5 | Galv | 22ga | 9 | 3210-1090-125000 | 8040400860 |
| 10 | 60 | 2.5 | Galv | 22ga | 6.7 | 3210-1060-125000 | 8040400859 |
| 10 | 45 | 2.5 | Galv | 22ga | 13.38 | 3210-1045-125000 | 8040400858 |
| 10 | 30 | 2.5 | Galv | 22ga | 9.45 | 3210-1030-125000 | 8040400857 |
| 11 | 90 | 2.5 | Galv | 22ga | 10.5 | 3210-1190-127500 | 8040400864 |
| 11 | 60 | 2.5 | Galv | 22ga | 7.5 | 3210-1160-127500 | 8040400863 |
| 11 | 45 | 2.5 | Galv | 22ga | 16.25 | 3210-1145-127500 | 8040400862 |
| 11 | 30 | 2.5 | Galv | 22ga | 11.4 | 3210-1130-127500 | 8040400861 |
| 12 | 90 | 2.5 | Galv | 22ga | 12.4 | 3210-1290-130000 | 8040400868 |
| 12 | 60 | 2.5 | Galv | 22ga | 8.96 | 3210-1260-130000 | 8040400867 |
| 12 | 45 | 2.5 | Galv | 22ga | 22 | 3210-1245-130000 | 8040400866 |
| 12 | 30 | 2.5 | Galv | 22ga | 13.08 | 3210-1230-130000 | 8040400865 |
| 13 | 90 | 2.5 | Galv | 20ga | 14.26 | 3210-1390-132500 | 8040400872 |
| 13 | 60 | 2.5 | Galv | 20ga | 12.25 | 3210-1360-132500 | 8040400871 |
| 13 | 45 | 2.5 | Galv | 20ga | 25 | 3210-1345-132500 | 8040400870 |
| 13 | 30 | 2.5 | Galv | 20ga | 16.3 | 3210-1330-132500 | 8040400869 |
| 14 | 90 | 2.5 | Galv | 20ga | 19 | 3210-1490-135000 | 8040400876 |
| 14 | 60 | 2.5 | Galv | 20ga | 13.7 | 3210-1460-135000 | 8040400875 |
| 14 | 45 | 2.5 | Galv | 20ga | 29.04 | 3210-1445-135000 | 8040400874 |
| 14 | 30 | 2.5 | Galv | 20ga | 20.92 | 3210-1430-135000 | 8040400873 |
| 15 | 90 | 2.5 | Galv | 20ga | 21.25 | 3210-1590-137500 | 8040400880 |
| 15 | 60 | 2.5 | Galv | 20ga | 16 | 3210-1560-137500 | 8040400879 |
| 15 | 45 | 2.5 | Galv | 20ga | 32.1 | 3210-1545-137500 | 8040400878 |
| 15 | 30 | 2.5 | Galv | 20ga | 23.1 | 3210-1530-137500 | 8040400877 |
| 16 | 90 | 2.5 | Galv | 20ga | 24 | 3210-1690-140000 | 8040400884 |
| 16 | 60 | 2.5 | Galv | 20ga | 18.83 | 3210-1660-140000 | 8040400883 |
| 16 | 45 | 2.5 | Galv | 20ga | 36.8 | 3210-1645-140000 | 8040400882 |
| 16 | 30 | 2.5 | Galv | 20ga | 25.58 | 3210-1630-140000 | 8040400881 |
| 17 | 90 | 2.5 | Galv | 20ga | 27.5 | 3210-1790-142500 | 8040400888 |
| 17 | 60 | 2.5 | Galv | 20ga | 19.2 | 3210-1760-142500 | 8040400887 |
| 17 | 45 | 2.5 | Galv | 20ga | 41 | 3210-1745-142500 | 8040400886 |
| 17 | 30 | 2.5 | Galv | 20ga | 28.1 | 3210-1730-142500 | 8040400885 |
| 18 | 90 | 2.5 | Galv | 20ga | 30.9 | 3210-1890-145000 | 8040400892 |
| 18 | 60 | 2.5 | Galv | 20ga | 20.81 | 3210-1860-145000 | 8040400891 |
| 18 | 45 | 2.5 | Galv | 20ga | 45.93 | 3210-1845-145000 | 8040400890 |
| 18 | 30 | 2.5 | Galv | 20ga | 31.86 | 3210-1830-145000 | 8040400889 |
| 19 | 90 | 2.5 | Galv | 20ga | 35.97 | 3210-1990-147500 | 8040400896 |
| 19 | 60 | 2.5 | Galv | 20ga | 25.35 | 3210-1960-147500 | 8040400895 |
| 19 | 45 | 2.5 | Galv | 20ga | 58 | 3210-1945-147500 | 8040400894 |
| 19 | 30 | 2.5 | Galv | 20ga | 38.94 | 3210-1930-147500 | 8040400893 |
| 20 | 90 | 2.5 | Galv | 20ga | 35.97 | 3210-2090-150000 | 8040400900 |
| 20 | 60 | 2.5 | Galv | 20ga | 25.35 | 3210-2060-150000 | 8040400899 |
| 20 | 45 | 2.5 | Galv | 20ga | 58 | 3210-2045-150000 | 8040400898 |
| 20 | 30 | 2.5 | Galv | 20ga | 38.94 | 3210-2030-150000 | 8040400897 |
| 21 | 90 | 2.5 | Galv | 20ga | 43.06 | 3210-2190-152500 | 8040400904 |
| 21 | 60 | 2.5 | Galv | 20ga | 30.28 | 3210-2160-152500 | 8040400903 |
| 21 | 45 | 2.5 | Galv | 20ga | 67.52 | 3210-2145-152500 | 8040400902 |
| 21 | 30 | 2.5 | Galv | 20ga | 46.68 | 3210-2130-152500 | 8040400901 |
| 22 | 90 | 2.5 | Galv | 20ga | 43.06 | 3210-2290-155000 | 8040400908 |
| 22 | 60 | 2.5 | Galv | 20ga | 30.28 | 3210-2260-155000 | 8040400907 |
| 22 | 45 | 2.5 | Galv | 20ga | 67.52 | 3210-2245-155000 | 8040400906 |
| 22 | 30 | 2.5 | Galv | 20ga | 46.68 | 3210-2230-155000 | 8040400905 |
| 23 | 90 | 2.5 | Galv | 20ga | 55.5 | 3210-2390-157500 | 8040400912 |
| 23 | 60 | 2.5 | Galv | 20ga | 42.5 | 3210-2360-157500 | 8040400911 |
| 23 | 45 | 2.5 | Galv | 20ga | 75.74 | 3210-2345-157500 | 8040400910 |
| 23 | 30 | 2.5 | Galv | 20ga | 60.43 | 3210-2330-157500 | 8040400909 |
| 24 | 90 | 2.5 | Galv | 20ga | 55.5 | 3210-2490-160000 | 8040400916 |
| 24 | 60 | 2.5 | Galv | 20ga | 42.5 | 3210-2460-160000 | 8040400915 |
| 24 | 45 | 2.5 | Galv | 20ga | 75.74 | 3210-2445-160000 | 8040400914 |
| 24 | 30 | 2.5 | Galv | 20ga | 60.43 | 3210-2430-160000 | 8040400913 |
| 7 | 90 | 2.5 | 304SS | 22ga | 2.2 | 3210-0790-217500 | 8040400920 |
| 7 | 60 | 2.5 | 304SS | 22ga | 1.65 | 3210-0760-217500 | 8040400919 |
| 7 | 45 | 2.5 | 304SS | 22ga | 2.9 | 3210-0745-217500 | 8040400918 |
| 7 | 30 | 2.5 | 304SS | 22ga | 2.6 | 3210-0730-217500 | 8040400917 |
| 8 | 90 | 2.5 | 304SS | 22ga | 6.1 | 3210-0890-220000 | 8040400924 |
| 8 | 60 | 2.5 | 304SS | 22ga | 4.4 | 3210-0860-220000 | 8040400923 |
| 8 | 45 | 2.5 | 304SS | 22ga | 7.65 | 3210-0845-220000 | 8040400922 |
| 8 | 30 | 2.5 | 304SS | 22ga | 5.56 | 3210-0830-220000 | 8040400921 |
| 9 | 90 | 2.5 | 304SS | 22ga | 7.6 | 3210-0990-222500 | 8040400928 |
| 9 | 60 | 2.5 | 304SS | 22ga | 5.5 | 3210-0960-222500 | 8040400927 |
| 9 | 45 | 2.5 | 304SS | 22ga | 10.87 | 3210-0945-222500 | 8040400926 |
| 9 | 30 | 2.5 | 304SS | 22ga | 7.79 | 3210-0930-222500 | 8040400925 |
| 10 | 90 | 2.5 | 304SS | 22ga | 9 | 3210-1090-225000 | 8040400932 |
| 10 | 60 | 2.5 | 304SS | 22ga | 6.7 | 3210-1060-225000 | 8040400931 |
| 10 | 45 | 2.5 | 304SS | 22ga | 13.38 | 3210-1045-225000 | 8040400930 |
| 10 | 30 | 2.5 | 304SS | 22ga | 9.45 | 3210-1030-225000 | 8040400929 |
| 11 | 90 | 2.5 | 304SS | 22ga | 10.5 | 3210-1190-227500 | 8040400936 |
| 11 | 60 | 2.5 | 304SS | 22ga | 7.5 | 3210-1160-227500 | 8040400935 |
| 11 | 45 | 2.5 | 304SS | 22ga | 16.25 | 3210-1145-227500 | 8040400934 |
| 11 | 30 | 2.5 | 304SS | 22ga | 11.4 | 3210-1130-227500 | 8040400933 |
| 12 | 90 | 2.5 | 304SS | 22ga | 12.4 | 3210-1290-230000 | 8040400940 |
| 12 | 60 | 2.5 | 304SS | 22ga | 8.96 | 3210-1260-230000 | 8040400939 |
| 12 | 45 | 2.5 | 304SS | 22ga | 22 | 3210-1245-230000 | 8040400938 |
| 12 | 30 | 2.5 | 304SS | 22ga | 13.08 | 3210-1230-230000 | 8040400937 |
| 13 | 90 | 2.5 | 304SS | 20ga | 14.26 | 3210-1390-232500 | 8040400944 |
| 13 | 60 | 2.5 | 304SS | 20ga | 12.25 | 3210-1360-232500 | 8040400943 |
| 13 | 45 | 2.5 | 304SS | 20ga | 25 | 3210-1345-232500 | 8040400942 |
| 13 | 30 | 2.5 | 304SS | 20ga | 16.3 | 3210-1330-232500 | 8040400941 |
| 14 | 90 | 2.5 | 304SS | 20ga | 19 | 3210-1490-235000 | 8040400948 |
| 14 | 60 | 2.5 | 304SS | 20ga | 13.7 | 3210-1460-235000 | 8040400947 |
| 14 | 45 | 2.5 | 304SS | 20ga | 29.04 | 3210-1445-235000 | 8040400946 |
| 14 | 30 | 2.5 | 304SS | 20ga | 20.92 | 3210-1430-235000 | 8040400945 |
| 15 | 90 | 2.5 | 304SS | 20ga | 21.25 | 3210-1590-237500 | 8040400952 |
| 15 | 60 | 2.5 | 304SS | 20ga | 16 | 3210-1560-237500 | 8040400951 |
| 15 | 45 | 2.5 | 304SS | 20ga | 32.1 | 3210-1545-237500 | 8040400950 |
| 15 | 30 | 2.5 | 304SS | 20ga | 23.1 | 3210-1530-237500 | 8040400949 |
| 16 | 90 | 2.5 | 304SS | 20ga | 24 | 3210-1690-240000 | 8040400956 |
| 16 | 60 | 2.5 | 304SS | 20ga | 18.83 | 3210-1660-240000 | 8040400955 |
| 16 | 45 | 2.5 | 304SS | 20ga | 36.8 | 3210-1645-240000 | 8040400954 |
| 16 | 30 | 2.5 | 304SS | 20ga | 25.58 | 3210-1630-240000 | 8040400953 |
| 17 | 90 | 2.5 | 304SS | 20ga | 27.5 | 3210-1790-242500 | 8040400960 |
| 17 | 60 | 2.5 | 304SS | 20ga | 19.2 | 3210-1760-242500 | 8040400959 |
| 17 | 45 | 2.5 | 304SS | 20ga | 41 | 3210-1745-242500 | 8040400958 |
| 17 | 30 | 2.5 | 304SS | 20ga | 28.1 | 3210-1730-242500 | 8040400957 |
| 18 | 90 | 2.5 | 304SS | 20ga | 30.9 | 3210-1890-245000 | 8040400964 |
| 18 | 60 | 2.5 | 304SS | 20ga | 20.81 | 3210-1860-245000 | 8040400963 |
| 18 | 45 | 2.5 | 304SS | 20ga | 45.93 | 3210-1845-245000 | 8040400962 |
| 18 | 30 | 2.5 | 304SS | 20ga | 31.86 | 3210-1830-245000 | 8040400961 |
| 19 | 90 | 2.5 | 304SS | 20ga | 35.97 | 3210-1990-247500 | 8040400968 |
| 19 | 60 | 2.5 | 304SS | 20ga | 25.35 | 3210-1960-247500 | 8040400967 |
| 19 | 45 | 2.5 | 304SS | 20ga | 58 | 3210-1945-247500 | 8040400966 |
| 19 | 30 | 2.5 | 304SS | 20ga | 38.94 | 3210-1930-247500 | 8040400965 |
| 20 | 90 | 2.5 | 304SS | 20ga | 35.97 | 3210-2090-250000 | 8040400972 |
| 20 | 60 | 2.5 | 304SS | 20ga | 25.35 | 3210-2060-250000 | 8040400971 |
| 20 | 45 | 2.5 | 304SS | 20ga | 58 | 3210-2045-250000 | 8040400970 |
| 20 | 30 | 2.5 | 304SS | 20ga | 38.94 | 3210-2030-250000 | 8040400969 |
| 21 | 90 | 2.5 | 304SS | 20ga | 43.06 | 3210-2190-252500 | 8040400976 |
| 21 | 60 | 2.5 | 304SS | 20ga | 30.28 | 3210-2160-252500 | 8040400975 |
| 21 | 45 | 2.5 | 304SS | 20ga | 67.52 | 3210-2145-252500 | 8040400974 |
| 21 | 30 | 2.5 | 304SS | 20ga | 46.68 | 3210-2130-252500 | 8040400973 |
| 22 | 90 | 2.5 | 304SS | 20ga | 43.06 | 3210-2290-255000 | 8040400980 |
| 22 | 60 | 2.5 | 304SS | 20ga | 30.28 | 3210-2260-255000 | 8040400979 |
| 22 | 45 | 2.5 | 304SS | 20ga | 67.52 | 3210-2245-255000 | 8040400978 |
| 22 | 30 | 2.5 | 304SS | 20ga | 46.68 | 3210-2230-255000 | 8040400977 |
| 23 | 90 | 2.5 | 304SS | 20ga | 55.5 | 3210-2390-257500 | 8040400984 |
| 23 | 60 | 2.5 | 304SS | 20ga | 42.5 | 3210-2360-257500 | 8040400983 |
| 23 | 45 | 2.5 | 304SS | 20ga | 75.74 | 3210-2345-257500 | 8040400982 |
| 23 | 30 | 2.5 | 304SS | 20ga | 60.43 | 3210-2330-257500 | 8040400981 |
| 24 | 90 | 2.5 | 304SS | 20ga | 55.5 | 3210-2490-260000 | 8040400988 |
| 24 | 60 | 2.5 | 304SS | 20ga | 42.5 | 3210-2460-260000 | 8040400987 |
| 24 | 45 | 2.5 | 304SS | 20ga | 75.74 | 3210-2445-260000 | 8040400986 |
| 24 | 30 | 2.5 | 304SS | 20ga | 60.43 | 3210-2430-260000 | 8040400985 |
