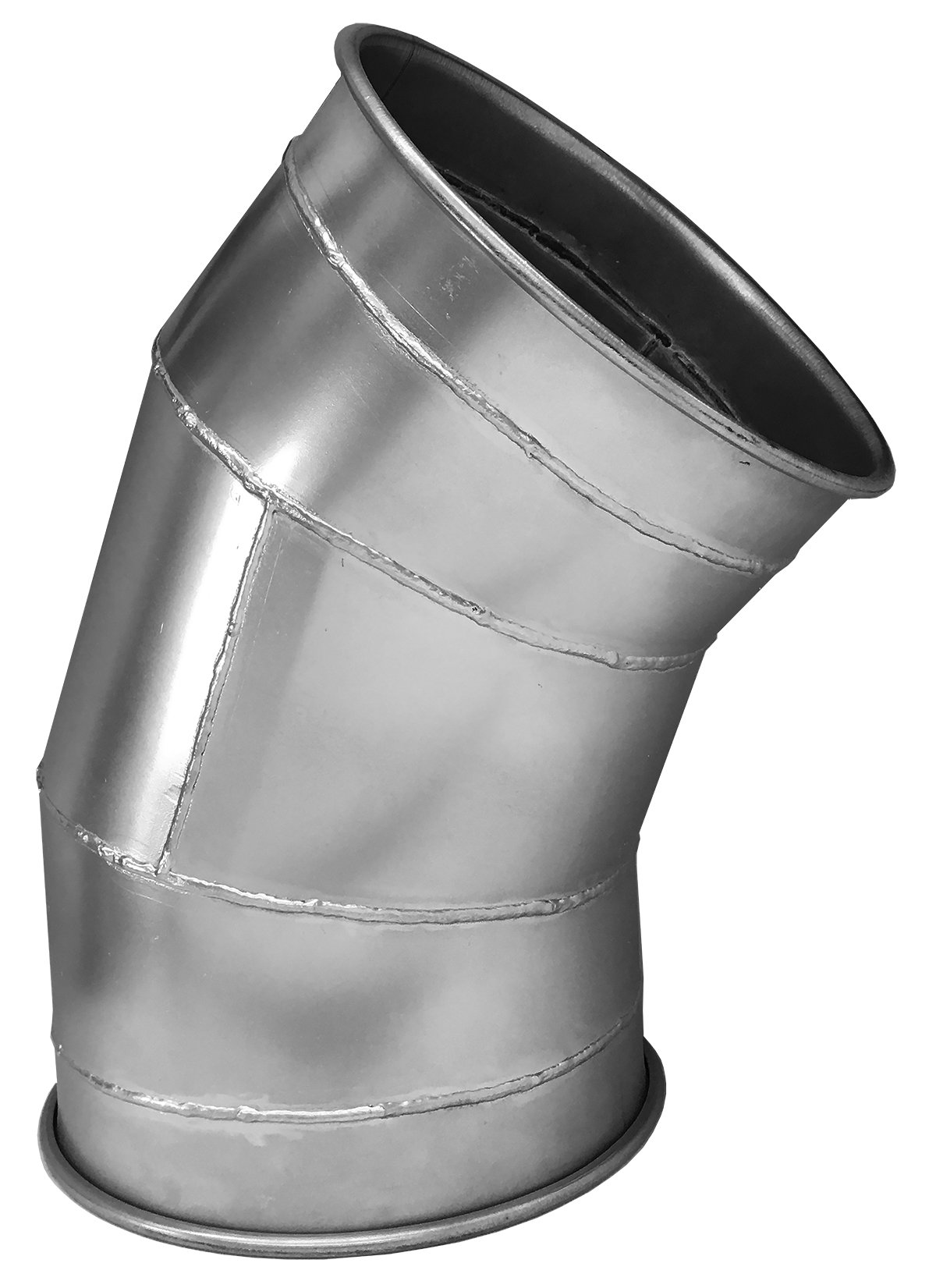

Quick-Fit® 14 gauge Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation. Learn more about the advantages of Quick-Fit ducting.
Available in 90°, 60°, 45°, and 30° with a radius of 1.5. Other CLRs available upon request. Long radius 14ga elbows are also available.
All 14 gauge elbows are supplied in solid-welded construction, providing a leak-free seam. Elimination of air leakage improves dust collection system efficiency, providing energy cost savings. Heavier gauge construction reduces the frequency and cost of replacing worn-through elbows in heavily abrasive or high wear applications.
This is a directional elbow supplied with an arrow to indicate the direction of flow.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| Request a Quote |
|---|
| Download our Elbows Product Data sheet |
| Download our QF Elbow Revit® families |
Learn more about the benefits and availability of heavy gauge ducting from Nordfab
If you need flanged connections or larger sizes than those shown below, please see our flanged elbow options
| ø A in | Angle degree | Center line radius | Material | Thickness | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 8 | 90 | 1.5 | Galv | 14ga | 19 | 4210-0890-112000 | 8040400360 |
| 8 | 60 | 1.5 | Galv | 14ga | 11 | 4210-0860-112000 | 8040400359 |
| 8 | 45 | 1.5 | Galv | 14ga | 10 | 4210-0845-112000 | 8040400358 |
| 8 | 30 | 1.5 | Galv | 14ga | 6 | 4210-0830-112000 | 8040400357 |
| 9 | 90 | 1.5 | Galv | 14ga | 24 | 4210-0990-113500 | 8040400364 |
| 9 | 60 | 1.5 | Galv | 14ga | 14 | 4210-0960-113500 | 8040400363 |
| 9 | 45 | 1.5 | Galv | 14ga | 12 | 4210-0945-113500 | 8040400362 |
| 9 | 30 | 1.5 | Galv | 14ga | 7 | 4210-0930-113500 | 8040400361 |
| 10 | 90 | 1.5 | Galv | 14ga | 29 | 4210-1090-115000 | 8040400368 |
| 10 | 60 | 1.5 | Galv | 14ga | 17 | 4210-1060-115000 | 8040400367 |
| 10 | 45 | 1.5 | Galv | 14ga | 15 | 4210-1045-115000 | 8040400366 |
| 10 | 30 | 1.5 | Galv | 14ga | 9 | 4210-1030-115000 | 8040400365 |
| 11 | 90 | 1.5 | Galv | 14ga | 35 | 4210-1190-116500 | 8040400372 |
| 11 | 60 | 1.5 | Galv | 14ga | 21 | 4210-1160-116500 | 8040400371 |
| 11 | 45 | 1.5 | Galv | 14ga | 18 | 4210-1145-116500 | 8040400370 |
| 11 | 30 | 1.5 | Galv | 14ga | 11 | 4210-1130-116500 | 8040400369 |
| 12 | 90 | 1.5 | Galv | 14ga | 42 | 4210-1290-118000 | 8040400376 |
| 12 | 60 | 1.5 | Galv | 14ga | 25 | 4210-1260-118000 | 8040400375 |
| 12 | 45 | 1.5 | Galv | 14ga | 21 | 4210-1245-118000 | 8040400374 |
| 12 | 30 | 1.5 | Galv | 14ga | 13 | 4210-1230-118000 | 8040400373 |
| 13 | 90 | 1.5 | Galv | 14ga | 46 | 4210-1390-119500 | 8040400380 |
| 13 | 60 | 1.5 | Galv | 14ga | 28 | 4210-1360-119500 | 8040400379 |
| 13 | 45 | 1.5 | Galv | 14ga | 23 | 4210-1345-119500 | 8040400378 |
| 13 | 30 | 1.5 | Galv | 14ga | 14 | 4210-1330-119500 | 8040400377 |
| 14 | 90 | 1.5 | Galv | 14ga | 50 | 4210-1490-121000 | 8040400384 |
| 14 | 60 | 1.5 | Galv | 14ga | 30 | 4210-1460-121000 | 8040400383 |
| 14 | 45 | 1.5 | Galv | 14ga | 25 | 4210-1445-121000 | 8040400382 |
| 14 | 30 | 1.5 | Galv | 14ga | 15 | 4210-1430-121000 | 8040400381 |
| 15 | 90 | 1.5 | Galv | 14ga | 54 | 4210-1590-122500 | 8040400388 |
| 15 | 60 | 1.5 | Galv | 14ga | 32 | 4210-1560-122500 | 8040400387 |
| 15 | 45 | 1.5 | Galv | 14ga | 27 | 4210-1545-122500 | 8040400386 |
| 15 | 30 | 1.5 | Galv | 14ga | 16 | 4210-1530-122500 | 8040400385 |
| 16 | 90 | 1.5 | Galv | 14ga | 59 | 4210-1690-124000 | 8040400392 |
| 16 | 60 | 1.5 | Galv | 14ga | 35 | 4210-1660-124000 | 8040400391 |
| 16 | 45 | 1.5 | Galv | 14ga | 30 | 4210-1645-124000 | 8040400390 |
| 16 | 30 | 1.5 | Galv | 14ga | 18 | 4210-1630-124000 | 8040400389 |
| 17 | 90 | 1.5 | Galv | 14ga | 63 | 4210-1790-125500 | 8040400396 |
| 17 | 60 | 1.5 | Galv | 14ga | 38 | 4210-1760-125500 | 8040400395 |
| 17 | 45 | 1.5 | Galv | 14ga | 32 | 4210-1745-125500 | 8040400394 |
| 17 | 30 | 1.5 | Galv | 14ga | 19 | 4210-1730-125500 | 8040400393 |
| 18 | 90 | 1.5 | Galv | 14ga | 68 | 4210-1890-127000 | 8040400400 |
| 18 | 60 | 1.5 | Galv | 14ga | 41 | 4210-1860-127000 | 8040400399 |
| 18 | 45 | 1.5 | Galv | 14ga | 34 | 4210-1845-127000 | 8040400398 |
| 18 | 30 | 1.5 | Galv | 14ga | 20 | 4210-1830-127000 | 8040400397 |
| 19 | 90 | 1.5 | Galv | 14ga | 97 | 4210-1990-128500 | 8040400404 |
| 19 | 60 | 1.5 | Galv | 14ga | 58 | 4210-1960-128500 | 8040400403 |
| 19 | 45 | 1.5 | Galv | 14ga | 49 | 4210-1945-128500 | 8040400402 |
| 19 | 30 | 1.5 | Galv | 14ga | 29 | 4210-1930-128500 | 8040400401 |
| 20 | 90 | 1.5 | Galv | 14ga | 97 | 4210-2090-130000 | 8040400408 |
| 20 | 60 | 1.5 | Galv | 14ga | 58 | 4210-2060-130000 | 8040400407 |
| 20 | 45 | 1.5 | Galv | 14ga | 49 | 4210-2045-130000 | 8040400406 |
| 20 | 30 | 1.5 | Galv | 14ga | 29 | 4210-2030-130000 | 8040400405 |
| 21 | 90 | 1.5 | Galv | 14ga | 103 | 4210-2190-131500 | 8040400412 |
| 21 | 60 | 1.5 | Galv | 14ga | 62 | 4210-2160-131500 | 8040400411 |
| 21 | 45 | 1.5 | Galv | 14ga | 52 | 4210-2145-131500 | 8040400410 |
| 21 | 30 | 1.5 | Galv | 14ga | 31 | 4210-2130-131500 | 8040400409 |
| 22 | 90 | 1.5 | Galv | 14ga | 103 | 4210-2290-133000 | 8040400416 |
| 22 | 60 | 1.5 | Galv | 14ga | 62 | 4210-2260-133000 | 8040400415 |
| 22 | 45 | 1.5 | Galv | 14ga | 52 | 4210-2245-133000 | 8040400414 |
| 22 | 30 | 1.5 | Galv | 14ga | 31 | 4210-2230-133000 | 8040400413 |
| 23 | 90 | 1.5 | Galv | 14ga | 131 | 4210-2390-134500 | 8040400420 |
| 23 | 60 | 1.5 | Galv | 14ga | 79 | 4210-2360-134500 | 8040400419 |
| 23 | 45 | 1.5 | Galv | 14ga | 66 | 4210-2345-134500 | 8040400418 |
| 23 | 30 | 1.5 | Galv | 14ga | 39 | 4210-2330-134500 | 8040400417 |
| 24 | 90 | 1.5 | Galv | 14ga | 131 | 4210-2490-136000 | 8040400424 |
| 24 | 60 | 1.5 | Galv | 14ga | 79 | 4210-2460-136000 | 8040400423 |
| 24 | 45 | 1.5 | Galv | 14ga | 66 | 4210-2445-136000 | 8040400422 |
| 24 | 30 | 1.5 | Galv | 14ga | 39 | 4210-2430-136000 | 8040400421 |
