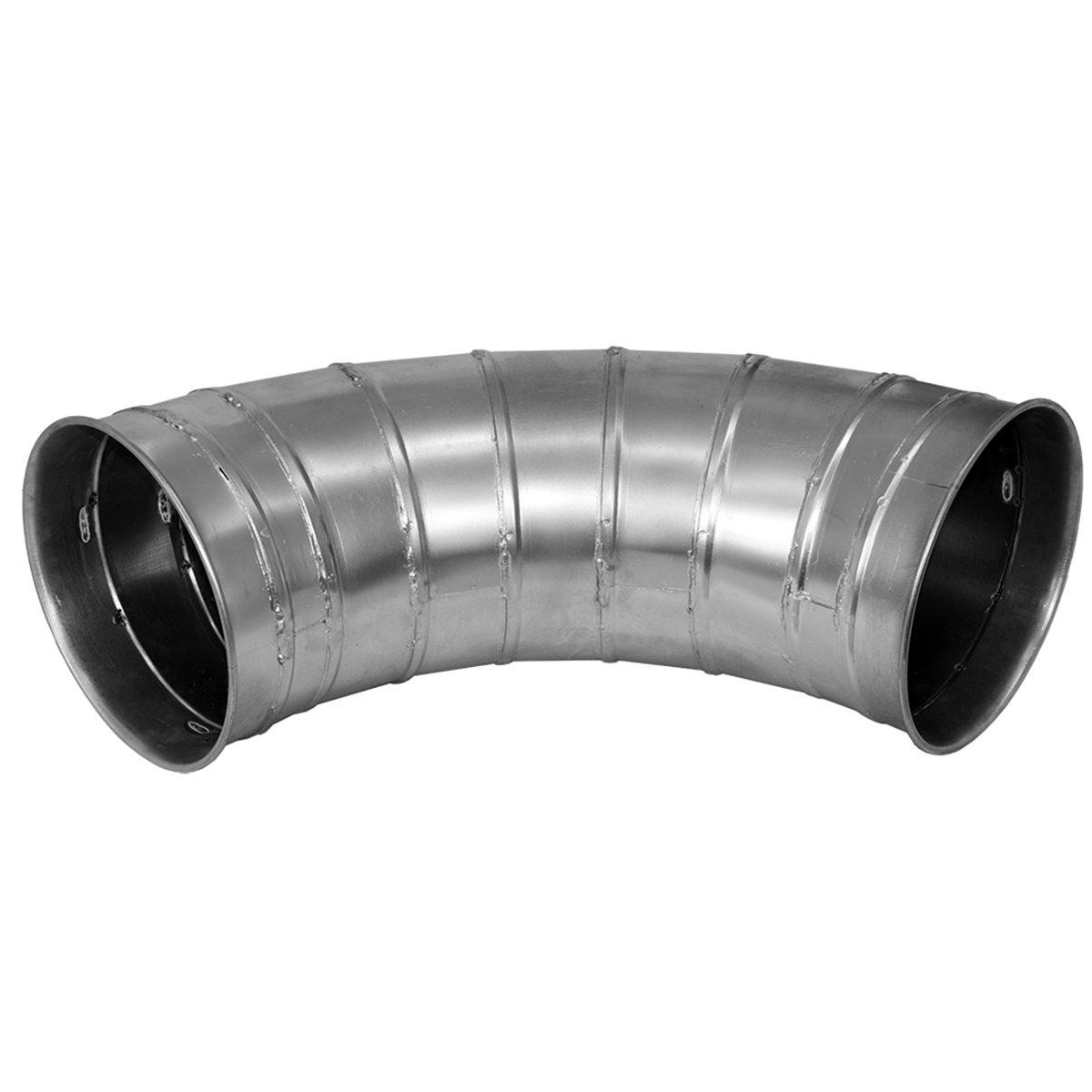

Quick-Fit® 16 gauge Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation. Learn more about the advantages of Quick-Fit ducting.
Available in 90°, 60°, 45°, and 30° with a radius of 1.5. Other CLRs available upon request. Long radius16ga elbows are also available.
QF® Elbows in 16 gauge steel are constructed of gores lapped over one another and spot welded. Heavier gauge construction may be the solution to reduce the frequency and cost of replacing worn-through elbows in high wear applications.
This is a directional elbow supplied with an arrow to indicate the direction of flow.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options. Interior buffing available upon request for additional cost.
| Request a Quote |
|---|
| Download our Elbows Product Data sheet |
| Download our QF Elbow Revit® families |
Learn more about the benefits and availability of heavy gauge ducting from Nordfab
If you need flanged connections or larger sizes than those shown below, please see our flanged elbow options
| ø A in | Angle degree | Center line radius | Material | Thickness | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 7 | 90 | 1.5 | Galv | 16ga | 9.42 | 3212-0790-110500 | 8010003614 |
| 7 | 60 | 1.5 | Galv | 16ga | 8.65 | 3212-0760-110500 | 8010003612 |
| 7 | 45 | 1.5 | Galv | 16ga | 7.82 | 3212-0745-110500 | 8010003610 |
| 7 | 30 | 1.5 | Galv | 16ga | 5.18 | 3212-0730-110500 | 8010003608 |
| 8 | 90 | 1.5 | Galv | 16ga | 13.64 | 3212-0890-112000 | 8010003624 |
| 8 | 60 | 1.5 | Galv | 16ga | 11.9 | 3212-0860-112000 | 8010003622 |
| 8 | 45 | 1.5 | Galv | 16ga | 9.56 | 3212-0845-112000 | 8010003620 |
| 8 | 30 | 1.5 | Galv | 16ga | 6.79 | 3212-0830-112000 | 8010003618 |
| 9 | 90 | 1.5 | Galv | 16ga | 16.64 | 3212-0990-113500 | 8010003634 |
| 9 | 60 | 1.5 | Galv | 16ga | 14.21 | 3212-0960-113500 | 8010003632 |
| 9 | 45 | 1.5 | Galv | 16ga | 11.3 | 3212-0945-113500 | 8010003630 |
| 9 | 30 | 1.5 | Galv | 16ga | 8.4 | 3212-0930-113500 | 8010003628 |
| 10 | 90 | 1.5 | Galv | 16ga | 21.54 | 3212-1090-115000 | 8010003464 |
| 10 | 60 | 1.5 | Galv | 16ga | 17.29 | 3212-1060-115000 | 8010003462 |
| 10 | 45 | 1.5 | Galv | 16ga | 13.97 | 3212-1045-115000 | 8010003460 |
| 10 | 30 | 1.5 | Galv | 16ga | 9.77 | 3212-1030-115000 | 8010003458 |
| 11 | 90 | 1.5 | Galv | 16ga | 27.65 | 3212-1190-116500 | 8010003474 |
| 11 | 60 | 1.5 | Galv | 16ga | 20.65 | 3212-1160-116500 | 8010003472 |
| 11 | 45 | 1.5 | Galv | 16ga | 16.92 | 3212-1145-116500 | 8010003470 |
| 11 | 30 | 1.5 | Galv | 16ga | 11.44 | 3212-1130-116500 | 8010003468 |
| 12 | 90 | 1.5 | Galv | 16ga | 33.76 | 3212-1290-118000 | 8010003484 |
| 12 | 60 | 1.5 | Galv | 16ga | 24 | 3212-1260-118000 | 8010003482 |
| 12 | 45 | 1.5 | Galv | 16ga | 20.4 | 3212-1245-118000 | 8010003480 |
| 12 | 30 | 1.5 | Galv | 16ga | 13.1 | 3212-1230-118000 | 8010003478 |
| 13 | 90 | 1.5 | Galv | 16ga | 40.07 | 3212-1390-119500 | 8010003494 |
| 13 | 60 | 1.5 | Galv | 16ga | 28.68 | 3212-1360-119500 | 8010003492 |
| 13 | 45 | 1.5 | Galv | 16ga | 23.85 | 3212-1345-119500 | 8010003490 |
| 13 | 30 | 1.5 | Galv | 16ga | 16.09 | 3212-1330-119500 | 8010003488 |
| 14 | 90 | 1.5 | Galv | 16ga | 46.38 | 3212-1490-121000 | 8010003504 |
| 14 | 60 | 1.5 | Galv | 16ga | 33.35 | 3212-1460-121000 | 8010003502 |
| 14 | 45 | 1.5 | Galv | 16ga | 27.6 | 3212-1445-121000 | 8010003500 |
| 14 | 30 | 1.5 | Galv | 16ga | 19.07 | 3212-1430-121000 | 8010003498 |
| 15 | 90 | 1.5 | Galv | 16ga | 52.61 | 3212-1590-122500 | 8010003514 |
| 15 | 60 | 1.5 | Galv | 16ga | 37.09 | 3212-1560-122500 | 8010003512 |
| 15 | 45 | 1.5 | Galv | 16ga | 30.56 | 3212-1545-122500 | 8010003510 |
| 15 | 30 | 1.5 | Galv | 16ga | 22.94 | 3212-1530-122500 | 8010003508 |
| 16 | 90 | 1.5 | Galv | 16ga | 58.83 | 3212-1690-124000 | 8010003524 |
| 16 | 60 | 1.5 | Galv | 16ga | 40.83 | 3212-1660-124000 | 8010003522 |
| 16 | 45 | 1.5 | Galv | 16ga | 34.1 | 3212-1645-124000 | 8010003520 |
| 16 | 30 | 1.5 | Galv | 16ga | 25.86 | 3212-1630-124000 | 8010003518 |
| 17 | 90 | 1.5 | Galv | 16ga | 66.14 | 3212-1790-125500 | 8010003534 |
| 17 | 60 | 1.5 | Galv | 16ga | 45.85 | 3212-1760-125500 | 8010003532 |
| 17 | 45 | 1.5 | Galv | 16ga | 39.8 | 3212-1745-125500 | 8010003530 |
| 17 | 30 | 1.5 | Galv | 16ga | 29.4 | 3212-1730-125500 | 8010003528 |
| 18 | 90 | 1.5 | Galv | 16ga | 73.44 | 3212-1890-127000 | 8010003544 |
| 18 | 60 | 1.5 | Galv | 16ga | 50.87 | 3212-1860-127000 | 8010003542 |
| 18 | 45 | 1.5 | Galv | 16ga | 44.36 | 3212-1845-127000 | 8010003540 |
| 18 | 30 | 1.5 | Galv | 16ga | 33.31 | 3212-1830-127000 | 8010003538 |
| 19 | 90 | 1.5 | Galv | 16ga | 85.4 | 3212-1990-128500 | 8010003554 |
| 19 | 60 | 1.5 | Galv | 16ga | 62.19 | 3212-1960-128500 | 8010003552 |
| 19 | 45 | 1.5 | Galv | 16ga | 52.6 | 3212-1945-128500 | 8010003550 |
| 19 | 30 | 1.5 | Galv | 16ga | 42.15 | 3212-1930-128500 | 8010003548 |
| 20 | 90 | 1.5 | Galv | 16ga | 85.4 | 3212-2090-130000 | 8010003564 |
| 20 | 60 | 1.5 | Galv | 16ga | 62.19 | 3212-2060-130000 | 8010003562 |
| 20 | 45 | 1.5 | Galv | 16ga | 52.6 | 3212-2045-130000 | 8010003560 |
| 20 | 30 | 1.5 | Galv | 16ga | 42.15 | 3212-2030-130000 | 8010003558 |
| 21 | 90 | 1.5 | Galv | 16ga | 107.98 | 3212-2190-131500 | 8010003574 |
| 21 | 60 | 1.5 | Galv | 16ga | 74.56 | 3212-2160-131500 | 8010003572 |
| 21 | 45 | 1.5 | Galv | 16ga | 59.1 | 3212-2145-131500 | 8010003570 |
| 21 | 30 | 1.5 | Galv | 16ga | 51.09 | 3212-2130-131500 | 8010003568 |
| 22 | 90 | 1.5 | Galv | 16ga | 107.98 | 3212-2290-133000 | 8010003584 |
| 22 | 60 | 1.5 | Galv | 16ga | 74.56 | 3212-2260-133000 | 8010003582 |
| 22 | 45 | 1.5 | Galv | 16ga | 59.1 | 3212-2245-133000 | 8010003580 |
| 22 | 30 | 1.5 | Galv | 16ga | 51.09 | 3212-2230-133000 | 8010003578 |
| 23 | 90 | 1.5 | Galv | 16ga | 132.63 | 3212-2390-134500 | 8010003594 |
| 23 | 60 | 1.5 | Galv | 16ga | 86.93 | 3212-2360-134500 | 8010003592 |
| 23 | 45 | 1.5 | Galv | 16ga | 64.78 | 3212-2345-134500 | 8010003590 |
| 23 | 30 | 1.5 | Galv | 16ga | 56.91 | 3212-2330-134500 | 8010003588 |
| 24 | 90 | 1.5 | Galv | 16ga | 132.63 | 3212-2490-136000 | 8010003604 |
| 24 | 60 | 1.5 | Galv | 16ga | 86.93 | 3212-2460-136000 | 8010003602 |
| 24 | 45 | 1.5 | Galv | 16ga | 64.78 | 3212-2445-136000 | 8010003600 |
| 24 | 30 | 1.5 | Galv | 16ga | 56.91 | 3212-2430-136000 | 8010003598 |
| 7 | 90 | 1.5 | 304SS | 16ga | 9.42 | 3212-0790-210500 | 8010003432 |
| 7 | 60 | 1.5 | 304SS | 16ga | 8.65 | 3212-0760-210500 | 8010003430 |
| 7 | 45 | 1.5 | 304SS | 16ga | 7.82 | 3212-0745-210500 | 8010003428 |
| 7 | 30 | 1.5 | 304SS | 16ga | 5.18 | 3212-0730-210500 | 8010003426 |
| 8 | 90 | 1.5 | 304SS | 16ga | 13.64 | 3212-0890-212000 | 8010003442 |
| 8 | 60 | 1.5 | 304SS | 16ga | 11.9 | 3212-0860-212000 | 8010003440 |
| 8 | 45 | 1.5 | 304SS | 16ga | 9.56 | 3212-0845-212000 | 8010003438 |
| 8 | 30 | 1.5 | 304SS | 16ga | 6.79 | 3212-0830-212000 | 8010003436 |
| 9 | 90 | 1.5 | 304SS | 16ga | 16.64 | 3212-0990-213500 | 8010003452 |
| 9 | 60 | 1.5 | 304SS | 16ga | 14.21 | 3212-0960-213500 | 8010003450 |
| 9 | 45 | 1.5 | 304SS | 16ga | 11.3 | 3212-0945-213500 | 8010003448 |
| 9 | 30 | 1.5 | 304SS | 16ga | 8.4 | 3212-0930-213500 | 8010003446 |
| 10 | 90 | 1.5 | 304SS | 16ga | 21.54 | 3212-1090-215000 | 8010003282 |
| 10 | 60 | 1.5 | 304SS | 16ga | 17.29 | 3212-1060-215000 | 8010003280 |
| 10 | 45 | 1.5 | 304SS | 16ga | 13.97 | 3212-1045-215000 | 8010003278 |
| 10 | 30 | 1.5 | 304SS | 16ga | 9.77 | 3212-1030-215000 | 8010003276 |
| 11 | 90 | 1.5 | 304SS | 16ga | 27.65 | 3212-1190-216500 | 8010003292 |
| 11 | 60 | 1.5 | 304SS | 16ga | 20.65 | 3212-1160-216500 | 8010003290 |
| 11 | 45 | 1.5 | 304SS | 16ga | 16.92 | 3212-1145-216500 | 8010003288 |
| 11 | 30 | 1.5 | 304SS | 16ga | 11.44 | 3212-1130-216500 | 8010003286 |
| 12 | 90 | 1.5 | 304SS | 16ga | 33.76 | 3212-1290-218000 | 8010003302 |
| 12 | 60 | 1.5 | 304SS | 16ga | 24 | 3212-1260-218000 | 8010003300 |
| 12 | 45 | 1.5 | 304SS | 16ga | 20.4 | 3212-1245-218000 | 8010003298 |
| 12 | 30 | 1.5 | 304SS | 16ga | 13.1 | 3212-1230-218000 | 8010003296 |
| 13 | 90 | 1.5 | 304SS | 16ga | 40.07 | 3212-1390-219500 | 8010003312 |
| 13 | 60 | 1.5 | 304SS | 16ga | 28.68 | 3212-1360-219500 | 8010003310 |
| 13 | 45 | 1.5 | 304SS | 16ga | 23.85 | 3212-1345-219500 | 8010003308 |
| 13 | 30 | 1.5 | 304SS | 16ga | 16.09 | 3212-1330-219500 | 8010003306 |
| 14 | 90 | 1.5 | 304SS | 16ga | 46.38 | 3212-1490-221000 | 8010003322 |
| 14 | 60 | 1.5 | 304SS | 16ga | 33.35 | 3212-1460-221000 | 8010003320 |
| 14 | 45 | 1.5 | 304SS | 16ga | 27.6 | 3212-1445-221000 | 8010003318 |
| 14 | 30 | 1.5 | 304SS | 16ga | 19.07 | 3212-1430-221000 | 8010003316 |
| 15 | 90 | 1.5 | 304SS | 16ga | 52.61 | 3212-1590-222500 | 8010003332 |
| 15 | 60 | 1.5 | 304SS | 16ga | 37.09 | 3212-1560-222500 | 8010003330 |
| 15 | 45 | 1.5 | 304SS | 16ga | 30.56 | 3212-1545-222500 | 8010003328 |
| 15 | 30 | 1.5 | 304SS | 16ga | 22.94 | 3212-1530-222500 | 8010003326 |
| 16 | 90 | 1.5 | 304SS | 16ga | 58.83 | 3212-1690-224000 | 8010003342 |
| 16 | 60 | 1.5 | 304SS | 16ga | 40.83 | 3212-1660-224000 | 8010003340 |
| 16 | 45 | 1.5 | 304SS | 16ga | 34.1 | 3212-1645-224000 | 8010003338 |
| 16 | 30 | 1.5 | 304SS | 16ga | 25.86 | 3212-1630-224000 | 8010003336 |
| 17 | 90 | 1.5 | 304SS | 16ga | 66.14 | 3212-1790-225500 | 8010003352 |
| 17 | 60 | 1.5 | 304SS | 16ga | 45.85 | 3212-1760-225500 | 8010003350 |
| 17 | 45 | 1.5 | 304SS | 16ga | 39.8 | 3212-1745-225500 | 8010003348 |
| 17 | 30 | 1.5 | 304SS | 16ga | 29.4 | 3212-1730-225500 | 8010003346 |
| 18 | 90 | 1.5 | 304SS | 16ga | 73.44 | 3212-1890-227000 | 8010003362 |
| 18 | 60 | 1.5 | 304SS | 16ga | 50.87 | 3212-1860-227000 | 8010003360 |
| 18 | 45 | 1.5 | 304SS | 16ga | 44.36 | 3212-1845-227000 | 8010003358 |
| 18 | 30 | 1.5 | 304SS | 16ga | 33.31 | 3212-1830-227000 | 8010003356 |
| 19 | 90 | 1.5 | 304SS | 16ga | 85.4 | 3212-1990-228500 | 8010003372 |
| 19 | 60 | 1.5 | 304SS | 16ga | 62.19 | 3212-1960-228500 | 8010003370 |
| 19 | 45 | 1.5 | 304SS | 16ga | 52.6 | 3212-1945-228500 | 8010003368 |
| 19 | 30 | 1.5 | 304SS | 16ga | 42.15 | 3212-1930-228500 | 8010003366 |
| 20 | 90 | 1.5 | 304SS | 16ga | 85.4 | 3212-2090-230000 | 8010003382 |
| 20 | 60 | 1.5 | 304SS | 16ga | 62.19 | 3212-2060-230000 | 8010003380 |
| 20 | 45 | 1.5 | 304SS | 16ga | 52.6 | 3212-2045-230000 | 8010003378 |
| 20 | 30 | 1.5 | 304SS | 16ga | 42.15 | 3212-2030-230000 | 8010003376 |
| 21 | 90 | 1.5 | 304SS | 16ga | 107.98 | 3212-2190-231500 | 8010003392 |
| 21 | 60 | 1.5 | 304SS | 16ga | 74.56 | 3212-2160-231500 | 8010003390 |
| 21 | 45 | 1.5 | 304SS | 16ga | 59.1 | 3212-2145-231500 | 8010003388 |
| 21 | 30 | 1.5 | 304SS | 16ga | 51.09 | 3212-2130-231500 | 8010003386 |
| 22 | 90 | 1.5 | 304SS | 16ga | 107.98 | 3212-2290-233000 | 8010003402 |
| 22 | 60 | 1.5 | 304SS | 16ga | 74.56 | 3212-2260-233000 | 8010003400 |
| 22 | 45 | 1.5 | 304SS | 16ga | 59.1 | 3212-2245-233000 | 8010003398 |
| 22 | 30 | 1.5 | 304SS | 16ga | 51.09 | 3212-2230-233000 | 8010003396 |
| 23 | 90 | 1.5 | 304SS | 16ga | 132.63 | 3212-2390-234500 | 8010003412 |
| 23 | 60 | 1.5 | 304SS | 16ga | 86.93 | 3212-2360-234500 | 8010003410 |
| 23 | 45 | 1.5 | 304SS | 16ga | 64.78 | 3212-2345-234500 | 8010003408 |
| 23 | 30 | 1.5 | 304SS | 16ga | 56.91 | 3212-2330-234500 | 8010003406 |
| 24 | 90 | 1.5 | 304SS | 16ga | 132.63 | 3212-2490-236000 | 8010003422 |
| 24 | 60 | 1.5 | 304SS | 16ga | 86.93 | 3212-2460-236000 | 8010003420 |
| 24 | 45 | 1.5 | 304SS | 16ga | 64.78 | 3212-2445-236000 | 8010003418 |
| 24 | 30 | 1.5 | 304SS | 16ga | 56.91 | 3212-2430-236000 | 8010003416 |
