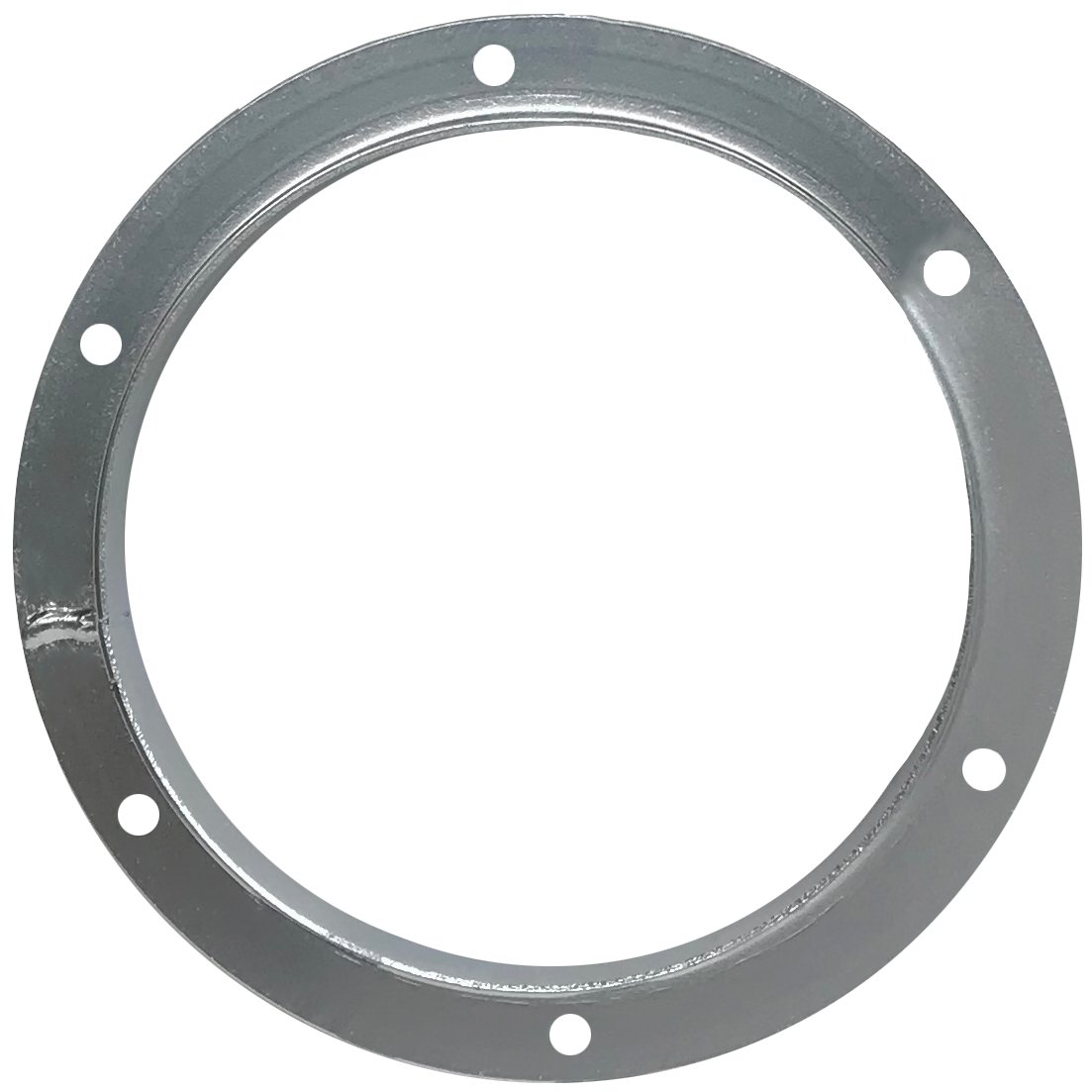

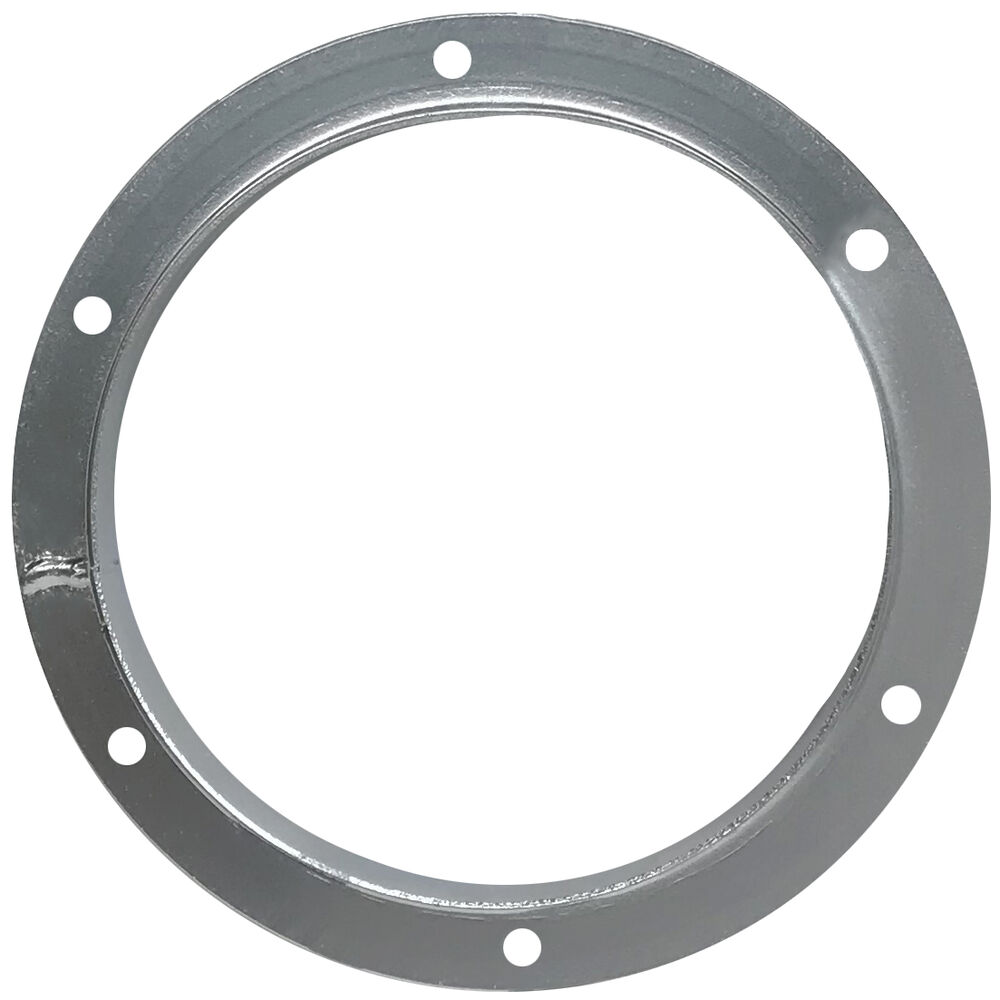

Nordfab Angle Flanges are industry standard sizes and hole patterns.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / custom options.
| ø A in | Material | T mm | Length (in) | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|
| 3 | Galv | 1 | 0.7 | 3261-0300-100000 | 8010000140 | |
| 4 | Galv | 1 | 0.9 | 3261-0400-100000 | 8010000141 | |
| 5 | Galv | 1 | 1.2 | 3261-0500-100000 | 8010000142 | |
| 6 | Galv | 1.25 | 1.4 | 3261-0600-100000 | 8010000143 | |
| 7 | Galv | 1.25 | 1.7 | 3261-0700-100000 | 8010000144 | |
| 8 | Galv | 1.25 | 1.9 | 3261-0800-100000 | 8010000145 | |
| 9 | Galv | 1.25 | 2.6 | 3261-0900-100000 | 8010000146 | |
| 10 | Galv | 1.25 | 3 | 3261-1000-100000 | 8010000147 | |
| 11 | Galv | 1.25 | 3.3 | 3261-1100-100000 | 8010000148 | |
| 12 | Galv | 1.5 | 3.9 | 3261-1200-100000 | 8010000149 | |
| 13 | Galv | 1.5 | 4.3 | 3261-1300-100000 | 8010000150 | |
| 14 | Galv | 1.5 | 4.8 | 3261-1400-100000 | 8010000151 | |
| 15 | Galv | 1.5 | 7.3 | 3261-1500-100000 | 8010000152 | |
| 16 | Galv | 1.5 | 8 | 3261-1600-100000 | 8010000153 | |
| 17 | Galv | 1.5 | 8.3 | 3261-1700-100000 | 8010000154 | |
| 18 | Galv | 1.5 | 8.5 | 3261-1800-100000 | 8010000155 | |
| 19 | Galv | 1.5 | 8.8 | 3261-1900-100000 | 8010000156 | |
| 20 | Galv | 1.5 | 9.5 | 3261-2000-100000 | 8010000157 | |
| 21 | Galv | 1.5 | 10.3 | 3261-2100-100000 | 8010000158 | |
| 22 | Galv | 1.5 | 10.8 | 3261-2200-100000 | 8010000159 | |
| 23 | Galv | 1.5 | 11.3 | 3261-2300-100000 | 8010000160 | |
| 24 | Galv | 1.5 | 11.5 | 3261-2400-100000 | 8010000161 | |
| 25 | Galv | 1.5 | 12 | 3261-2500-100000 | 8010000162 | |
| 26 | Galv | 2 | 16.8 | 3261-2600-100000 | 8010000163 | |
| 27 | Galv | 2 | 17.4 | 3261-2700-100000 | 8010000164 | |
| 28 | Galv | 2 | 18 | 3261-2800-100000 | 8010000165 | |
| 29 | Galv | 2 | 18.8 | 3261-2900-100000 | 8010000166 | |
| 30 | Galv | 2 | 19.5 | 3261-3000-100000 | 8010000167 | |
| 31 | Galv | 2 | 20.4 | 3261-3100-100000 | 8010000168 | |
| 32 | Galv | 2 | 20.8 | 3261-3200-100000 | 8010000169 | |
| 33 | Galv | 2 | 21.3 | 3261-3300-100000 | 8010000170 | |
| 34 | Galv | 2 | 22 | 3261-3400-100000 | 8010000171 | |
| 35 | Galv | 2 | 22.5 | 3261-3500-100000 | 8010000172 | |
| 36 | Galv | 2 | 23 | 3261-3600-100000 | 8010000173 | |
| 37 | Galv | 2 | 23.8 | 3261-3700-100000 | 8010000174 | |
| 38 | Galv | 2 | 24.5 | 3261-3800-100000 | 8010000175 | |
| 39 | Galv | 2 | 25 | 3261-3900-100000 | 8010000176 | |
| 40 | Galv | 2 | 25.8 | 3261-4000-100000 | 8010000177 | |
| 41 | Galv | 2 | 26.1 | 3261-4100-100000 | 8010000178 | |
| 42 | Galv | 2 | 26.5 | 3261-4200-100000 | 8010000179 | |
| 43 | Galv | 2 | 27.4 | 3261-4300-100000 | 8010000180 | |
| 44 | Galv | 2 | 28 | 3261-4400-100000 | 8010000181 | |
| 45 | Galv | 2 | 28.6 | 3261-4500-100000 | 8010000182 | |
| 46 | Galv | 2 | 29 | 3261-4600-100000 | 8010000183 | |
| 47 | Galv | 2 | 29.9 | 3261-4700-100000 | 8010000184 | |
| 48 | Galv | 2 | 30.8 | 3261-4800-100000 | 8010000185 | |
| 49 | Galv | 2 | 31.5 | 3261-4900-100000 | 8010000186 | |
| 50 | Galv | 2 | 32 | 3261-5000-100000 | 8010000187 | |
| 51 | Galv | 2 | 33 | 3261-5100-100000 | 8010000188 | |
| 52 | Galv | 2 | 33.4 | 3261-5200-100000 | 8010000189 | |
| 53 | Galv | 2 | 34 | 3261-5300-100000 | 8010000190 | |
| 54 | Galv | 2 | 34.8 | 3261-5400-100000 | 8010000191 | |
| 55 | Galv | 2 | 35 | 3261-5500-100000 | 8010000192 | |
| 56 | Galv | 2 | 36 | 3261-5600-100000 | 8010000193 | |
| 57 | Galv | 2 | 36.5 | 3261-5700-100000 | 8010000194 | |
| 58 | Galv | 2 | 37 | 3261-5800-100000 | 8010000195 | |
| 59 | Galv | 2 | 0.7 | 3261-5900-100000 | 8010000196 | |
| 60 | Galv | 2 | 38.5 | 3261-6000-100000 | 8010000197 | |
| 61 | Galv | 2 | 39 | 3261-6100-100000 | 8010000198 | |
| 62 | Galv | 2 | 39.8 | 3261-6200-100000 | 8010000199 | |
| 63 | Galv | 2 | 40 | 3261-6300-100000 | 8010000200 | |
| 64 | Galv | 2 | 41 | 3261-6400-100000 | 8010000201 | |
| 65 | Galv | 2 | 42 | 3261-6500-100000 | 8010000202 | |
| 66 | Galv | 2 | 42.4 | 3261-6600-100000 | 8010000203 | |
| 67 | Galv | 2 | 43 | 3261-6700-100000 | 8010000204 | |
| 68 | Galv | 2 | 43.5 | 3261-6800-100000 | 8010000205 | |
| 69 | Galv | 2 | 45 | 3261-6900-100000 | 8010000206 | |
| 70 | Galv | 2 | 44.9 | 3261-7000-100000 | 8010000207 | |
| 71 | Galv | 2 | 46 | 3261-7100-100000 | 8010000208 | |
| 72 | Galv | 2 | 46.3 | 3261-7200-100000 | 8010000209 | |
| 3 | 304SS | 1 | 0.7 | 3261-0300-200000 | 8010000000 | |
| 4 | 304SS | 1 | 0.9 | 3261-0400-200000 | 8010000001 | |
| 5 | 304SS | 1 | 1.2 | 3261-0500-200000 | 8010000002 | |
| 6 | 304SS | 1.25 | 1.4 | 3261-0600-200000 | 8010000003 | |
| 7 | 304SS | 1.25 | 1.7 | 3261-0700-200000 | 8010000004 | |
| 8 | 304SS | 1.25 | 1.9 | 3261-0800-200000 | 8010000005 | |
| 9 | 304SS | 1.25 | 2.6 | 3261-0900-200000 | 8010000006 | |
| 10 | 304SS | 1.25 | 3 | 3261-1000-200000 | 8010000007 | |
| 11 | 304SS | 1.25 | 3.3 | 3261-1100-200000 | 8010000008 | |
| 12 | 304SS | 1.5 | 3.9 | 3261-1200-200000 | 8010000009 | |
| 13 | 304SS | 1.5 | 4.3 | 3261-1300-200000 | 8010000010 | |
| 14 | 304SS | 1.5 | 4.8 | 3261-1400-200000 | 8010000011 | |
| 15 | 304SS | 1.5 | 7.3 | 3261-1500-200000 | 8010000012 | |
| 16 | 304SS | 1.5 | 8 | 3261-1600-200000 | 8010000013 | |
| 17 | 304SS | 1.5 | 8.3 | 3261-1700-200000 | 8010000014 | |
| 18 | 304SS | 1.5 | 8.5 | 3261-1800-200000 | 8010000015 | |
| 19 | 304SS | 1.5 | 8.8 | 3261-1900-200000 | 8010000016 | |
| 20 | 304SS | 1.5 | 9.5 | 3261-2000-200000 | 8010000017 | |
| 21 | 304SS | 1.5 | 10.3 | 3261-2100-200000 | 8010000018 | |
| 22 | 304SS | 1.5 | 10.8 | 3261-2200-200000 | 8010000019 | |
| 23 | 304SS | 1.5 | 11.3 | 3261-2300-200000 | 8010000020 | |
| 24 | 304SS | 1.5 | 11.5 | 3261-2400-200000 | 8010000021 | |
| 25 | 304SS | 1.5 | 12 | 3261-2500-200000 | 8010000022 | |
| 26 | 304SS | 2 | 16.8 | 3261-2600-200000 | 8010000023 | |
| 27 | 304SS | 2 | 17.4 | 3261-2700-200000 | 8010000024 | |
| 28 | 304SS | 2 | 18 | 3261-2800-200000 | 8010000025 | |
| 29 | 304SS | 2 | 18.8 | 3261-2900-200000 | 8010000026 | |
| 30 | 304SS | 2 | 19.5 | 3261-3000-200000 | 8010000027 | |
| 31 | 304SS | 2 | 20.4 | 3261-3100-200000 | 8010000028 | |
| 32 | 304SS | 2 | 20.8 | 3261-3200-200000 | 8010000029 | |
| 33 | 304SS | 2 | 21.3 | 3261-3300-200000 | 8010000030 | |
| 34 | 304SS | 2 | 22 | 3261-3400-200000 | 8010000031 | |
| 35 | 304SS | 2 | 22.5 | 3261-3500-200000 | 8010000032 | |
| 36 | 304SS | 2 | 23 | 3261-3600-200000 | 8010000033 | |
| 37 | 304SS | 2 | 23.8 | 3261-3700-200000 | 8010000034 | |
| 38 | 304SS | 2 | 24.5 | 3261-3800-200000 | 8010000035 | |
| 39 | 304SS | 2 | 25 | 3261-3900-200000 | 8010000036 | |
| 40 | 304SS | 2 | 25.8 | 3261-4000-200000 | 8010000037 | |
| 41 | 304SS | 2 | 26.1 | 3261-4100-200000 | 8010000038 | |
| 42 | 304SS | 2 | 26.5 | 3261-4200-200000 | 8010000039 | |
| 43 | 304SS | 2 | 27.4 | 3261-4300-200000 | 8010000040 | |
| 44 | 304SS | 2 | 28 | 3261-4400-200000 | 8010000041 | |
| 45 | 304SS | 2 | 28.6 | 3261-4500-200000 | 8010000042 | |
| 46 | 304SS | 2 | 29 | 3261-4600-200000 | 8010000043 | |
| 47 | 304SS | 2 | 29.9 | 3261-4700-200000 | 8010000044 | |
| 48 | 304SS | 2 | 30.8 | 3261-4800-200000 | 8010000045 | |
| 49 | 304SS | 2 | 31.5 | 3261-4900-200000 | 8010000046 | |
| 50 | 304SS | 2 | 32 | 3261-5000-200000 | 8010000047 | |
| 51 | 304SS | 2 | 33 | 3261-5100-200000 | 8010000048 | |
| 52 | 304SS | 2 | 33.4 | 3261-5200-200000 | 8010000049 | |
| 53 | 304SS | 2 | 34 | 3261-5300-200000 | 8010000050 | |
| 54 | 304SS | 2 | 34.8 | 3261-5400-200000 | 8010000051 | |
| 55 | 304SS | 2 | 35 | 3261-5500-200000 | 8010000052 | |
| 56 | 304SS | 2 | 36 | 3261-5600-200000 | 8010000053 | |
| 57 | 304SS | 2 | 36.5 | 3261-5700-200000 | 8010000054 | |
| 58 | 304SS | 2 | 37 | 3261-5800-200000 | 8010000055 | |
| 59 | 304SS | 2 | 0.7 | 3261-5900-200000 | 8010000056 | |
| 60 | 304SS | 2 | 38.5 | 3261-6000-200000 | 8010000057 | |
| 61 | 304SS | 2 | 39 | 3261-6100-200000 | 8010000058 | |
| 62 | 304SS | 2 | 39.8 | 3261-6200-200000 | 8010000059 | |
| 63 | 304SS | 2 | 40 | 3261-6300-200000 | 8010000060 | |
| 64 | 304SS | 2 | 41 | 3261-6400-200000 | 8010000061 | |
| 65 | 304SS | 2 | 42 | 3261-6500-200000 | 8010000062 | |
| 66 | 304SS | 2 | 42.4 | 3261-6600-200000 | 8010000063 | |
| 67 | 304SS | 2 | 43 | 3261-6700-200000 | 8010000064 | |
| 68 | 304SS | 2 | 43.5 | 3261-6800-200000 | 8010000065 | |
| 69 | 304SS | 2 | 45 | 3261-6900-200000 | 8010000066 | |
| 70 | 304SS | 2 | 44.9 | 3261-7000-200000 | 8010000067 | |
| 71 | 304SS | 2 | 46 | 3261-7100-200000 | 8010000068 | |
| 72 | 304SS | 2 | 46.3 | 3261-7200-200000 | 8010000069 |
