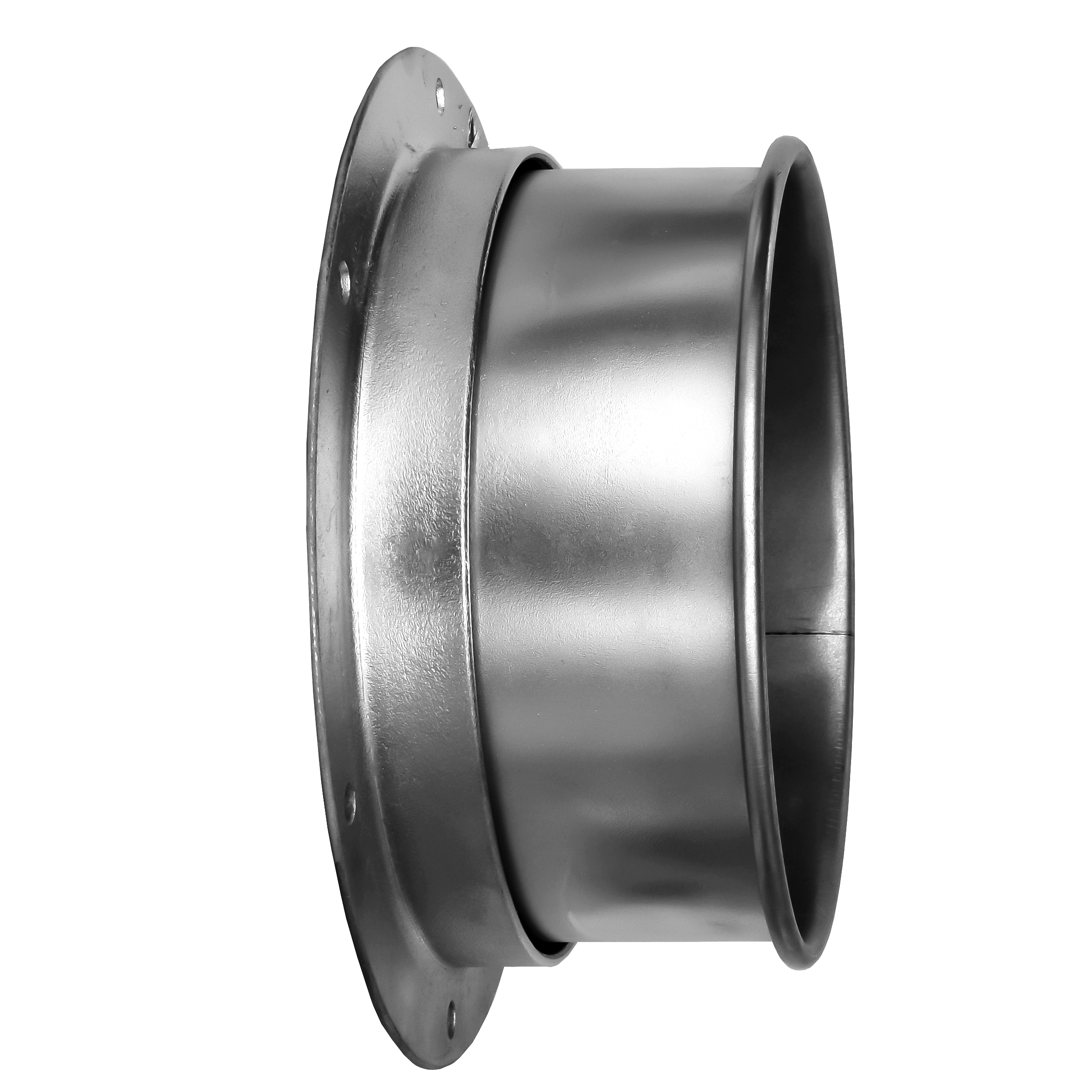

Nordfab’s QF® 18 gauge Angle Flange Adapter is fitted with an industry standard Angle Flange on one end and a Quick-Fit (QF) rolled edge at the other, allowing quick connection of QF duct pipe or fittings to flanged pipes or fittings.
If a custom bolt hole pattern is required, specify a Flat Flange (FFL) instead of an Angle Flange (ANGFL) and provide the hole pattern. If no hole pattern drawing is provided, flat flange will be blank. Flanges are retained with a Van Stone lip allowing easy rotation and alignment during installation.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
| ø A in | Material | Thickness | Length (in) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|
| 3 | Galv | 18ga | 5 | 3250-0318-100000 | 8040401863 |
| 4 | Galv | 18ga | 3.5 | 3250-0418-100000 | 8040401864 |
| 5 | Galv | 18ga | 3.5 | 3250-0518-100000 | 8040401865 |
| 6 | Galv | 18ga | 3.5 | 3250-0618-100000 | 8040401866 |
| 7 | Galv | 18ga | 3.5 | 3250-0718-100000 | 8040401867 |
| 8 | Galv | 18ga | 3.5 | 3250-0818-100000 | 8040401868 |
| 9 | Galv | 18ga | 3.5 | 3250-0918-100000 | 8040401869 |
| 10 | Galv | 18ga | 3.5 | 3250-1018-100000 | 8040401870 |
| 11 | Galv | 18ga | 3.5 | 3250-1118-100000 | 8040401871 |
| 12 | Galv | 18ga | 3.5 | 3250-1218-100000 | 8040401872 |
| 13 | Galv | 18ga | 5 | 3250-1318-100000 | 8040401873 |
| 14 | Galv | 18ga | 5 | 3250-1418-100000 | 8040401874 |
| 15 | Galv | 18ga | 5 | 3250-1518-100000 | 8040401875 |
| 16 | Galv | 18ga | 5 | 3250-1618-100000 | 8040401876 |
| 17 | Galv | 18ga | 5 | 3250-1718-100000 | 8040401877 |
| 18 | Galv | 18ga | 5 | 3250-1818-100000 | 8040401878 |
| 19 | Galv | 18ga | 5 | 3250-1918-100000 | 8040401879 |
| 20 | Galv | 18ga | 5 | 3250-2018-100000 | 8040401880 |
| 21 | Galv | 18ga | 5 | 3250-2118-100000 | 8040401881 |
| 22 | Galv | 18ga | 5 | 3250-2218-100000 | 8040401882 |
| 23 | Galv | 18ga | 5 | 3250-2318-100000 | 8040401883 |
| 24 | Galv | 18ga | 5 | 3250-2418-100000 | 8040401884 |
| 8 | 304SS | 18ga | 3.5 | 3250-0818-200000 | 8040401885 |
| 9 | 304SS | 18ga | 3.5 | 3250-0918-200000 | 8040401886 |
| 10 | 304SS | 18ga | 3.5 | 3250-1018-200000 | 8040401887 |
| 11 | 304SS | 18ga | 3.5 | 3250-1118-200000 | 8040401888 |
| 12 | 304SS | 18ga | 3.5 | 3250-1218-200000 | 8040401889 |
| 13 | 304SS | 18ga | 5 | 3250-1318-200000 | 8040401890 |
| 14 | 304SS | 18ga | 5 | 3250-1418-200000 | 8040401891 |
| 15 | 304SS | 18ga | 5 | 3250-1518-200000 | 8040401892 |
| 16 | 304SS | 18ga | 5 | 3250-1618-200000 | 8040401893 |
| 17 | 304SS | 18ga | 5 | 3250-1718-200000 | 8040401894 |
| 18 | 304SS | 18ga | 5 | 3250-1818-200000 | 8040401895 |
| 19 | 304SS | 18ga | 5 | 3250-1918-200000 | 8040401896 |
| 20 | 304SS | 18ga | 5 | 3250-2018-200000 | 8040401897 |
| 21 | 304SS | 18ga | 5 | 3250-2118-200000 | 8040401898 |
| 22 | 304SS | 18ga | 5 | 3250-2218-200000 | 8040401899 |
| 23 | 304SS | 18ga | 5 | 3250-2318-200000 | 8040401900 |
| 24 | 304SS | 18ga | 5 | 3250-2418-200000 | 8040401901 |
