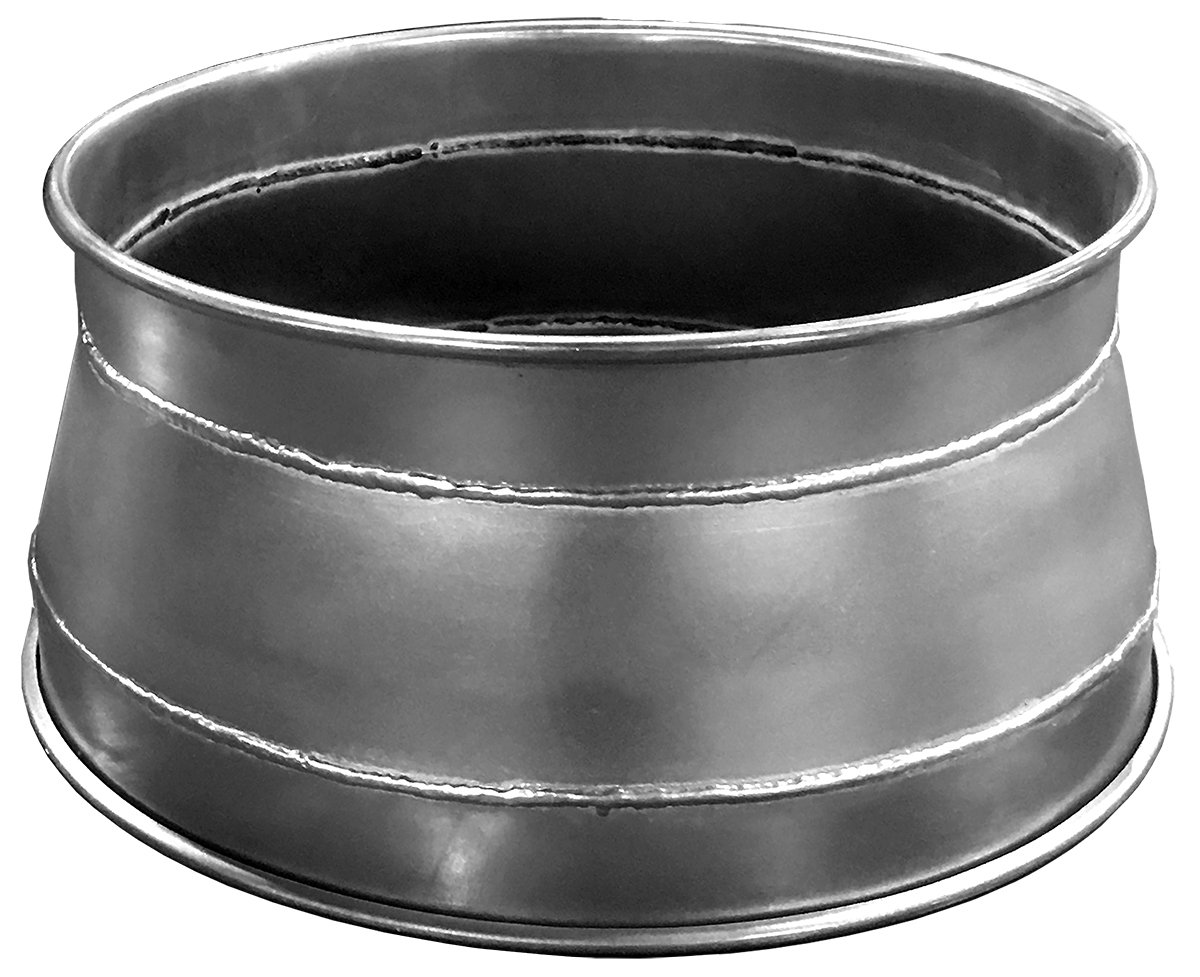

Los reductores Nordfab Quick-Fit® proporcionan la transición de un tamaño de tubería de conducto o de un accesorio a un tamaño más pequeño. La construcción de material de calibre 14 agrega durabilidad adicional para materiales abrasivos o aplicaciones de alto desgaste.
Al pedir reductores, especifique las dimensiones de los extremos A y B. Especifique también el estilo del extremo del reductor; los extremos QF son estándar.
Póngase en contacto con Nordfab o con su distribuidor local de Nordfab para obtener ayuda con tamaños más grandes y opciones de material/calibre.
Quick-Fit se ha utilizado en una amplia variedad de aplicaciones, donde se requiere recolección de polvo o transferencia de partículas finas. Quick-Fit ahorra tiempo y dinero en la instalación, es fácil de limpiar, se adapta a los conductos existentes y se puede reutilizar fácilmente durante las reconfiguraciones del taller. Obtenga más información sobre por qué Quick-Fit puede ser la mejor solución para usted.
| Solicitar cotización |
|---|
Descargue nuestra hoja de datos del producto reductor
Obtenga más información sobre los beneficios y la disponibilidad de los conductos de gran calibre de Nordfab
Si necesita conexiones bridadas o tamaños más grandes que los que se muestran a continuación, consulte nuestra página del producto reductor bridado
| Diameter | DiameterB | Material | Thickness | Length | Weight | LegacyArticleNo | ArticleNo |
|---|---|---|---|---|---|---|---|
| 8 | 6 | Galv | 14ga | 8 | 4222-0806-100000 | 8040026525 | |
| 8 | 7 | Galv | 14ga | 7 | 4222-0807-100000 | 8040026526 | |
| 9 | 6 | Galv | 14ga | 9 | 4222-0906-100000 | 8040026527 | |
| 9 | 7 | Galv | 14ga | 8 | 4222-0907-100000 | 8040026528 | |
| 9 | 8 | Galv | 14ga | 7 | 4222-0908-100000 | 8040026529 | |
| 10 | 6 | Galv | 14ga | 10 | 4222-1006-100000 | 8040026530 | |
| 10 | 7 | Galv | 14ga | 9 | 4222-1007-100000 | 8040026531 | |
| 10 | 8 | Galv | 14ga | 8 | 4222-1008-100000 | 8040026532 | |
| 10 | 9 | Galv | 14ga | 7 | 4222-1009-100000 | 8040026533 | |
| 11 | 6 | Galv | 14ga | 11 | 4222-1106-100000 | 8040026534 | |
| 11 | 7 | Galv | 14ga | 10 | 4222-1107-100000 | 8040026535 | |
| 11 | 8 | Galv | 14ga | 9 | 4222-1108-100000 | 8040026536 | |
| 11 | 9 | Galv | 14ga | 8 | 4222-1109-100000 | 8040026537 | |
| 11 | 10 | Galv | 14ga | 7 | 4222-1110-100000 | 8040026538 | |
| 12 | 6 | Galv | 14ga | 12 | 4222-1206-100000 | 8040026539 | |
| 12 | 7 | Galv | 14ga | 11 | 4222-1207-100000 | 8040026540 | |
| 12 | 8 | Galv | 14ga | 10 | 4222-1208-100000 | 8040026541 | |
| 12 | 9 | Galv | 14ga | 9 | 4222-1209-100000 | 8040026542 | |
| 12 | 10 | Galv | 14ga | 8 | 4222-1210-100000 | 8040026543 | |
| 12 | 11 | Galv | 14ga | 7 | 4222-1211-100000 | 8040026544 | |
| 13 | 6 | Galv | 14ga | 15 | 4222-1306-100000 | 8040026545 | |
| 13 | 7 | Galv | 14ga | 12 | 4222-1307-100000 | 8040026546 | |
| 13 | 8 | Galv | 14ga | 11 | 4222-1308-100000 | 8040026547 | |
| 13 | 9 | Galv | 14ga | 10 | 4222-1309-100000 | 8040026548 | |
| 13 | 10 | Galv | 14ga | 9 | 4222-1310-100000 | 8040026549 | |
| 13 | 11 | Galv | 14ga | 8 | 4222-1311-100000 | 8040026550 | |
| 13 | 12 | Galv | 14ga | 7 | 4222-1312-100000 | 8040026551 | |
| 14 | 6 | Galv | 14ga | 16 | 4222-1406-100000 | 8040026552 | |
| 14 | 7 | Galv | 14ga | 15 | 4222-1407-100000 | 8040026553 | |
| 14 | 8 | Galv | 14ga | 12 | 4222-1408-100000 | 8040026554 | |
| 14 | 9 | Galv | 14ga | 11 | 4222-1409-100000 | 8040026555 | |
| 14 | 10 | Galv | 14ga | 10 | 4222-1410-100000 | 8040026556 | |
| 14 | 11 | Galv | 14ga | 9 | 4222-1411-100000 | 8040026557 | |
| 14 | 12 | Galv | 14ga | 8 | 4222-1412-100000 | 8040026558 | |
| 14 | 13 | Galv | 14ga | 7 | 4222-1413-100000 | 8040026559 | |
| 15 | 6 | Galv | 14ga | 17 | 4222-1506-100000 | 8040026560 | |
| 15 | 7 | Galv | 14ga | 16 | 4222-1507-100000 | 8040026561 | |
| 15 | 8 | Galv | 14ga | 15 | 4222-1508-100000 | 8040026562 | |
| 15 | 9 | Galv | 14ga | 12 | 4222-1509-100000 | 8040026563 | |
| 15 | 10 | Galv | 14ga | 11 | 4222-1510-100000 | 8040026564 | |
| 15 | 11 | Galv | 14ga | 10 | 4222-1511-100000 | 8040026565 | |
| 15 | 12 | Galv | 14ga | 9 | 4222-1512-100000 | 8040026566 | |
| 15 | 13 | Galv | 14ga | 8 | 4222-1513-100000 | 8040026567 | |
| 15 | 14 | Galv | 14ga | 7 | 4222-1514-100000 | 8040026568 | |
| 16 | 6 | Galv | 14ga | 18 | 4222-1606-100000 | 8040026569 | |
| 16 | 7 | Galv | 14ga | 17 | 4222-1607-100000 | 8040026570 | |
| 16 | 8 | Galv | 14ga | 16 | 4222-1608-100000 | 8040026571 | |
| 16 | 9 | Galv | 14ga | 15 | 4222-1609-100000 | 8040026572 | |
| 16 | 10 | Galv | 14ga | 12 | 4222-1610-100000 | 8040026573 | |
| 16 | 11 | Galv | 14ga | 11 | 4222-1611-100000 | 8040026574 | |
| 16 | 12 | Galv | 14ga | 10 | 4222-1612-100000 | 8040026575 | |
| 16 | 13 | Galv | 14ga | 9 | 4222-1613-100000 | 8040026576 | |
| 16 | 14 | Galv | 14ga | 8 | 4222-1614-100000 | 8040026577 | |
| 16 | 15 | Galv | 14ga | 7 | 4222-1615-100000 | 8040026578 | |
| 17 | 7 | Galv | 14ga | 18 | 4222-1707-100000 | 8040026579 | |
| 17 | 8 | Galv | 14ga | 17 | 4222-1708-100000 | 8040026580 | |
| 17 | 9 | Galv | 14ga | 16 | 4222-1709-100000 | 8040026581 | |
| 17 | 10 | Galv | 14ga | 15 | 4222-1710-100000 | 8040026582 | |
| 17 | 11 | Galv | 14ga | 12 | 4222-1711-100000 | 8040026583 | |
| 17 | 12 | Galv | 14ga | 11 | 4222-1712-100000 | 8040026584 | |
| 17 | 13 | Galv | 14ga | 10 | 4222-1713-100000 | 8040026585 | |
| 17 | 14 | Galv | 14ga | 9 | 4222-1714-100000 | 8040026586 | |
| 17 | 15 | Galv | 14ga | 8 | 4222-1715-100000 | 8040026587 | |
| 17 | 16 | Galv | 14ga | 7 | 4222-1716-100000 | 8040026588 | |
| 18 | 8 | Galv | 14ga | 18 | 4222-1808-100000 | 8040026589 | |
| 18 | 9 | Galv | 14ga | 17 | 4222-1809-100000 | 8040026590 | |
| 18 | 10 | Galv | 14ga | 16 | 4222-1810-100000 | 8040026591 | |
| 18 | 11 | Galv | 14ga | 15 | 4222-1811-100000 | 8040026592 | |
| 18 | 12 | Galv | 14ga | 12 | 4222-1812-100000 | 8040026593 | |
| 18 | 13 | Galv | 14ga | 11 | 4222-1813-100000 | 8040026594 | |
| 18 | 14 | Galv | 14ga | 10 | 4222-1814-100000 | 8040026595 | |
| 18 | 15 | Galv | 14ga | 9 | 4222-1815-100000 | 8040026596 | |
| 18 | 16 | Galv | 14ga | 8 | 4222-1816-100000 | 8040026597 | |
| 18 | 17 | Galv | 14ga | 7 | 4222-1817-100000 | 8040026598 | |
| 19 | 9 | Galv | 14ga | 18 | 4222-1909-100000 | 8040026599 | |
| 19 | 10 | Galv | 14ga | 17 | 4222-1910-100000 | 8040026600 | |
| 19 | 11 | Galv | 14ga | 16 | 4222-1911-100000 | 8040026601 | |
| 19 | 12 | Galv | 14ga | 15 | 4222-1912-100000 | 8040026602 | |
| 19 | 13 | Galv | 14ga | 12 | 4222-1913-100000 | 8040026603 | |
| 19 | 14 | Galv | 14ga | 11 | 4222-1914-100000 | 8040026604 | |
| 19 | 15 | Galv | 14ga | 10 | 4222-1915-100000 | 8040026605 | |
| 19 | 16 | Galv | 14ga | 9 | 4222-1916-100000 | 8040026606 | |
| 19 | 17 | Galv | 14ga | 8 | 4222-1917-100000 | 8040026607 | |
| 19 | 18 | Galv | 14ga | 7 | 4222-1918-100000 | 8040026608 | |
| 20 | 10 | Galv | 14ga | 18 | 4222-2010-100000 | 8040026609 | |
| 20 | 11 | Galv | 14ga | 17 | 4222-2011-100000 | 8040026610 | |
| 20 | 12 | Galv | 14ga | 16 | 4222-2012-100000 | 8040026611 | |
| 20 | 13 | Galv | 14ga | 15 | 4222-2013-100000 | 8040026612 | |
| 20 | 14 | Galv | 14ga | 12 | 4222-2014-100000 | 8040026613 | |
| 20 | 15 | Galv | 14ga | 11 | 4222-2015-100000 | 8040026614 | |
| 20 | 16 | Galv | 14ga | 10 | 4222-2016-100000 | 8040026615 | |
| 20 | 17 | Galv | 14ga | 9 | 4222-2017-100000 | 8040026616 | |
| 20 | 18 | Galv | 14ga | 8 | 4222-2018-100000 | 8040026617 | |
| 20 | 19 | Galv | 14ga | 7 | 4222-2019-100000 | 8040026618 | |
| 21 | 11 | Galv | 14ga | 18 | 4222-2111-100000 | 8040026619 | |
| 21 | 12 | Galv | 14ga | 17 | 4222-2112-100000 | 8040026620 | |
| 21 | 13 | Galv | 14ga | 16 | 4222-2113-100000 | 8040026621 | |
| 21 | 14 | Galv | 14ga | 15 | 4222-2114-100000 | 8040026622 | |
| 21 | 15 | Galv | 14ga | 12 | 4222-2115-100000 | 8040026623 | |
| 21 | 16 | Galv | 14ga | 11 | 4222-2116-100000 | 8040026624 | |
| 21 | 17 | Galv | 14ga | 10 | 4222-2117-100000 | 8040026625 | |
| 21 | 18 | Galv | 14ga | 9 | 4222-2118-100000 | 8040026626 | |
| 21 | 19 | Galv | 14ga | 8 | 4222-2119-100000 | 8040026627 | |
| 21 | 20 | Galv | 14ga | 7 | 4222-2120-100000 | 8040026628 | |
| 22 | 12 | Galv | 14ga | 18 | 4222-2212-100000 | 8040026629 | |
| 22 | 13 | Galv | 14ga | 17 | 4222-2213-100000 | 8040026630 | |
| 22 | 14 | Galv | 14ga | 16 | 4222-2214-100000 | 8040026631 | |
| 22 | 15 | Galv | 14ga | 15 | 4222-2215-100000 | 8040026632 | |
| 22 | 16 | Galv | 14ga | 12 | 4222-2216-100000 | 8040026633 | |
| 22 | 17 | Galv | 14ga | 11 | 4222-2217-100000 | 8040026634 | |
| 22 | 18 | Galv | 14ga | 10 | 4222-2218-100000 | 8040026635 | |
| 22 | 19 | Galv | 14ga | 9 | 4222-2219-100000 | 8040026636 | |
| 22 | 20 | Galv | 14ga | 8 | 4222-2220-100000 | 8040026637 | |
| 22 | 21 | Galv | 14ga | 7 | 4222-2221-100000 | 8040026638 | |
| 23 | 13 | Galv | 14ga | 18 | 4222-2313-100000 | 8040026639 | |
| 23 | 14 | Galv | 14ga | 17 | 4222-2314-100000 | 8040026640 | |
| 23 | 15 | Galv | 14ga | 16 | 4222-2315-100000 | 8040026641 | |
| 23 | 16 | Galv | 14ga | 15 | 4222-2316-100000 | 8040026642 | |
| 23 | 17 | Galv | 14ga | 12 | 4222-2317-100000 | 8040026643 | |
| 23 | 18 | Galv | 14ga | 11 | 4222-2318-100000 | 8040026644 | |
| 23 | 19 | Galv | 14ga | 10 | 4222-2319-100000 | 8040026645 | |
| 23 | 20 | Galv | 14ga | 9 | 4222-2320-100000 | 8040026646 | |
| 23 | 21 | Galv | 14ga | 8 | 4222-2321-100000 | 8040026647 | |
| 23 | 22 | Galv | 14ga | 7 | 4222-2322-100000 | 8040026648 | |
| 24 | 14 | Galv | 14ga | 18 | 4222-2414-100000 | 8040026649 | |
| 24 | 15 | Galv | 14ga | 17 | 4222-2415-100000 | 8040026650 | |
| 24 | 16 | Galv | 14ga | 16 | 4222-2416-100000 | 8040026651 | |
| 24 | 17 | Galv | 14ga | 15 | 4222-2417-100000 | 8040026652 | |
| 24 | 18 | Galv | 14ga | 12 | 4222-2418-100000 | 8040026653 | |
| 24 | 19 | Galv | 14ga | 11 | 4222-2419-100000 | 8040026654 | |
| 24 | 20 | Galv | 14ga | 10 | 4222-2420-100000 | 8040026655 | |
| 24 | 21 | Galv | 14ga | 9 | 4222-2421-100000 | 8040026656 | |
| 24 | 22 | Galv | 14ga | 8 | 4222-2422-100000 | 8040026657 | |
| 24 | 23 | Galv | 14ga | 7 | 4222-2423-100000 | 8040026658 |
