ORDER EXEMPEL:

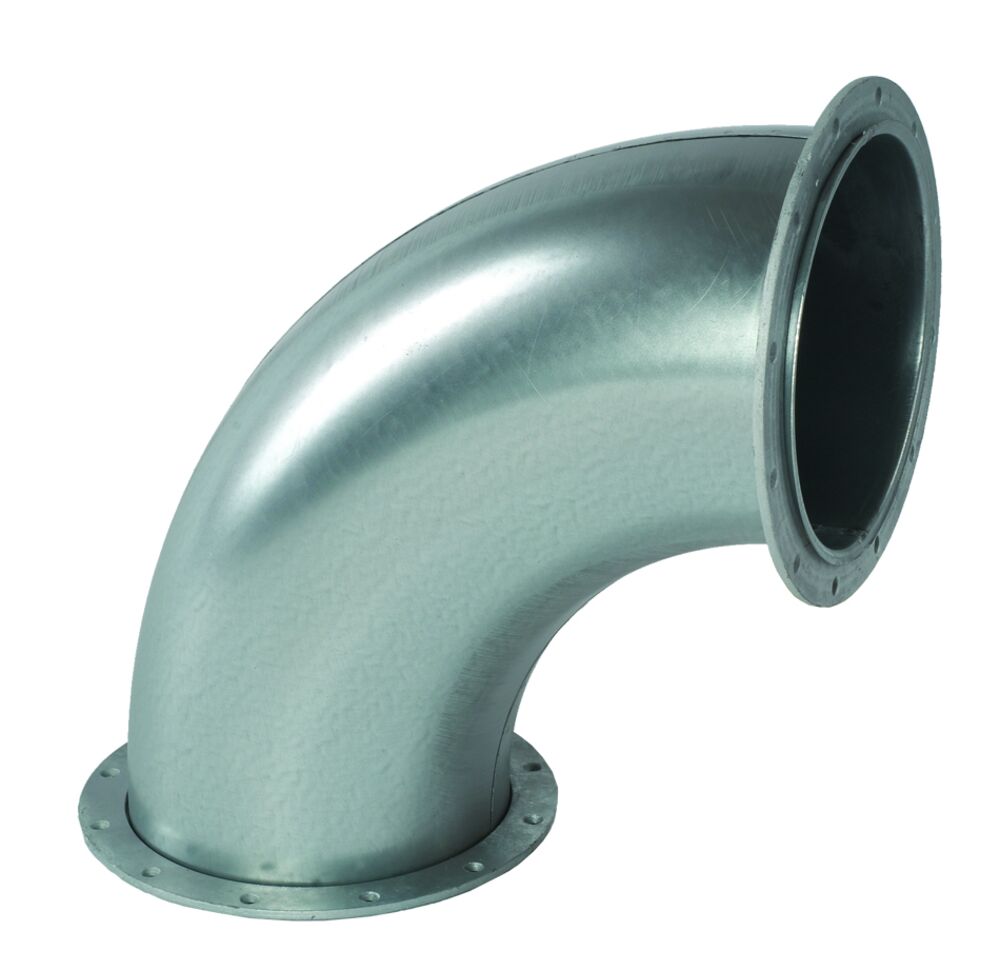

Pressad böj Galv 0,9mm 120FLI 15Deg R=1,5
ø A (mm) | AngleDegree | CenterLineRadius | Material | Thickness | Vikt kg | Art-nr |
---|---|---|---|---|---|---|
80 | 15 | 1.5 | Galv | 0,9mm | 0,1 | 8210000174 |
100 | 15 | 1.5 | Galv | 0,9mm | 0,96 | 8210002501 |
120 | 15 | 1.5 | Galv | 0,9mm | 1,01 | 8210002506 |
125 | 15 | 1.5 | Galv | 0,9mm | 1,01 | 8210002511 |
140 | 15 | 1.5 | Galv | 0,9mm | 1,76 | 8210002516 |
150 | 15 | 1.5 | Galv | 0,9mm | 0,99 | 8210002521 |
160 | 15 | 1.5 | Galv | 0,9mm | 1,01 | 8210002526 |
180 | 15 | 1.5 | Galv | 0,9mm | 1,2 | 8210002531 |
200 | 15 | 1.5 | Galv | 0,9mm | 2,35 | 8210002536 |
225 | 15 | 1.5 | Galv | 0,9mm | 3 | 8210002541 |
250 | 15 | 1.5 | Galv | 0,9mm | 2,86 | 8210002546 |
300 | 15 | 1.5 | Galv | 0,9mm | 3,5 | 8210002551 |
315 | 15 | 1.5 | Galv | 0,9mm | 4,09 | 8210002556 |
