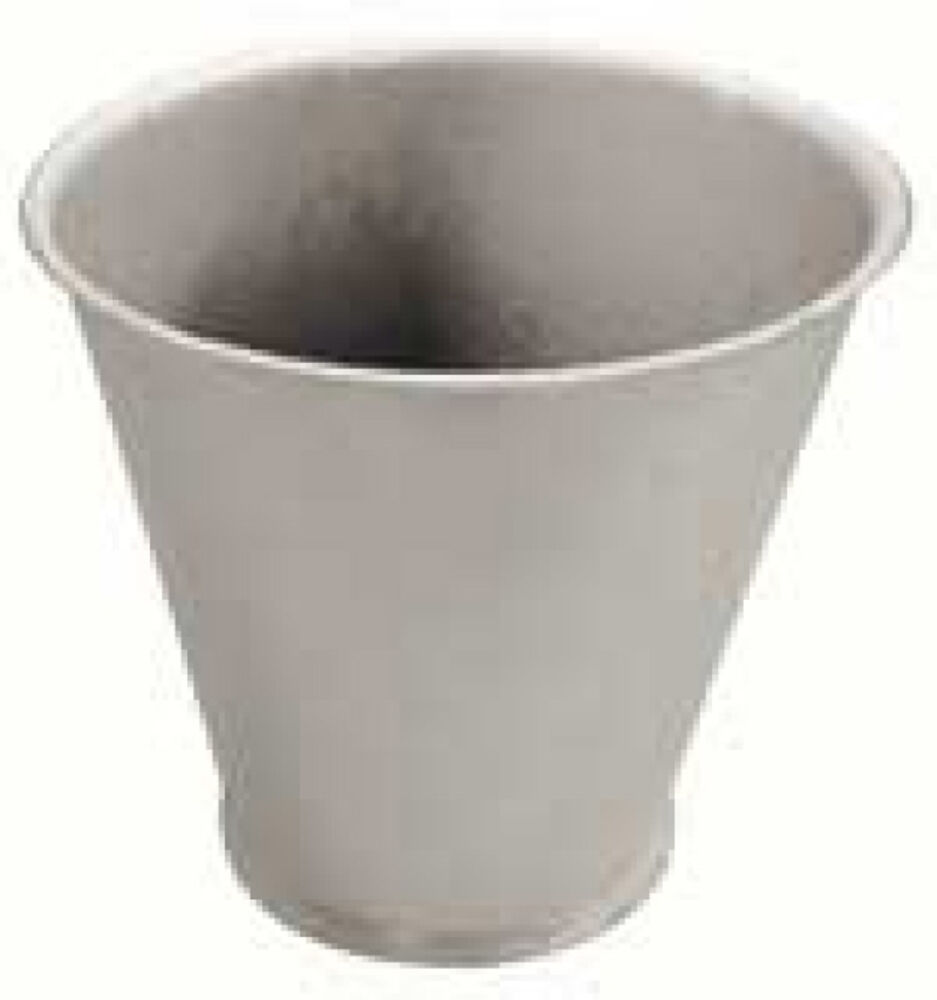

MS Reducering RRGE

Kona med klippt/svarvad kant i 3 mm svartplåt för industriell ventilation, vakuum och pneumatisk transport. Ø160 - 1000 mm. T = 3 mm, stålkvalitet SS1312, 50 µm RAL 7032 grå finish.

Nordfab Kona i svartplåt levereras med grund- och topplackering RAL 7032, 50 mikron. Högsta rekommenderade driftstemperatur för ytan är +80°C. Standardutförande med klippt kant. Flänsad version finns på begäran. Tillverkas även enligt kundspecifikation.

Vänligen ange ØA- och ØB-mått vid beställning.

Kanalrör av mjukt stål väljs ofta för att de är prisvärda jämfört med andra material. Om kostnaden är en viktig faktor i projektet för processventilation/dammutsugning och det inte finns några krav på korrosionsbeständighet är kanaler av mjukt stål en kostnadseffektiv lösning.

Grund- och täcklack RAL 7032, 50μm.
Max. rekommenderad arbetstemperatur för ytbehandling 80°C.
Standardutförande med spännbandskant. Flänsat utförande som tillval. Flänsar monteras lösa bakom uppkragning. Anslutningssidan förlängs då med 50 mm.
Tillverkas även kundspecifikt.
• RRGD 2,0 mm svartplåt SS1312. Spännband
• RRGE 3,0 mm svartplåt SS1312. Spännband
• RRFD 2,0 mm svartplåt försedd med fläns
• RFFE 3,0 mm svartplåt försedd med fläns

ø A (mm) Material Thickness Length Vikt kg Art-nr
160 MS 3,0mm 1,27 8240021858‍
160 MS 3,0mm 3,27 8240022033‍
180 MS 3,0mm 3,7 8240022035‍
180 MS 3,0mm 1,4 8240021860‍
180 MS 3,0mm 1,37 8240021859‍
180 MS 3,0mm 3,73 8240022034‍
200 MS 3,0mm 4,12 8240022038‍
200 MS 3,0mm 4,19 8240022037‍
200 MS 3,0mm 4,21 8240022036‍
200 MS 3,0mm 2,1 8240021861‍
200 MS 3,0mm 1,57 8240021863‍
200 MS 3,0mm 2,15 8240021862‍
225 MS 3,0mm 4,67 8240022042‍
225 MS 3,0mm 4,86 8240022040‍
225 MS 3,0mm 4,78 8240022041‍
225 MS 3,0mm 4,88 8240022039‍
225 MS 3,0mm 3,02 8240021865‍
225 MS 3,0mm 2,95 8240021864‍
225 MS 3,0mm 1,76 8240021867‍
225 MS 3,0mm 2,43 8240021866‍
250 MS 3,0mm 5,21 8240022047‍
250 MS 3,0mm 5,38 8240022046‍
250 MS 3,0mm 5,5 8240022045‍
250 MS 3,0mm 5,58 8240022044‍
250 MS 3,0mm 5,6 8240022043‍
250 MS 3,0mm 1,97 8240021872‍
250 MS 3,0mm 3,9 8240021868‍
250 MS 3,0mm 2,71 8240021871‍
250 MS 3,0mm 3,38 8240021870‍
250 MS 3,0mm 3,99 8240021869‍
300 MS 3,0mm 6,79 8240022052‍
300 MS 3,0mm 7,1 8240022050‍
300 MS 3,0mm 6,98 8240022051‍
300 MS 3,0mm 7,18 8240022049‍
300 MS 3,0mm 7,21 8240022048‍
300 MS 3,0mm 6,56 8240022053‍
300 MS 3,0mm 6,2 8240021874‍
300 MS 3,0mm 6,08 8240021873‍
300 MS 3,0mm 4,15 8240021877‍
300 MS 3,0mm 4,89 8240021876‍
300 MS 3,0mm 5,58 8240021875‍
300 MS 3,0mm 3,31 8240021878‍
315 MS 3,0mm 7,73 8240022054‍
315 MS 3,0mm 7,62 8240022056‍
315 MS 3,0mm 7,7 8240022055‍
315 MS 3,0mm 7,08 8240022059‍
315 MS 3,0mm 6,48 8240022060‍
315 MS 3,0mm 7,31 8240022058‍
315 MS 3,0mm 7,5 8240022057‍
315 MS 3,0mm 2,54 8240021885‍
315 MS 3,0mm 6,44 8240021880‍
315 MS 3,0mm 7,15 8240021879‍
315 MS 3,0mm 4,45 8240021884‍
315 MS 3,0mm 5,27 8240021883‍
315 MS 3,0mm 5,79 8240021881‍
315 MS 3,0mm 5,99 8240021882‍
350 MS 3,0mm 8,04 8240022068‍
350 MS 3,0mm 8,26 8240022067‍
350 MS 3,0mm 8,87 8240022066‍
350 MS 3,0mm 9,3 8240022064‍
350 MS 3,0mm 9,42 8240022063‍
350 MS 3,0mm 9,5 8240022062‍
350 MS 3,0mm 9,53 8240022061‍
350 MS 3,0mm 9,11 8240022065‍
350 MS 3,0mm 8,65 8240021886‍
350 MS 3,0mm 2,78 8240021893‍
350 MS 3,0mm 3,92 8240021892‍
350 MS 3,0mm 5,88 8240021891‍
350 MS 3,0mm 6,71 8240021890‍
350 MS 3,0mm 8,17 8240021888‍
350 MS 3,0mm 8,81 8240021887‍
350 MS 3,0mm 7,45 8240021889‍
400 MS 3,0mm 10 8240022077‍
400 MS 3,0mm 10,08 8240022076‍
400 MS 3,0mm 10,31 8240022075‍
400 MS 3,0mm 10,94 8240022074‍
400 MS 3,0mm 11,18 8240022073‍
400 MS 3,0mm 11,37 8240022072‍
400 MS 3,0mm 11,49 8240022071‍
400 MS 3,0mm 11,57 8240022070‍
400 MS 3,0mm 11,6 8240022069‍
400 MS 3,0mm 5,69 8240021901‍
400 MS 3,0mm 8,82 8240021899‍
400 MS 3,0mm 6,86 8240021900‍
400 MS 3,0mm 9,66 8240021898‍
400 MS 3,0mm 10,4 8240021897‍
400 MS 3,0mm 11,13 8240021896‍
400 MS 3,0mm 11,79 8240021895‍
400 MS 3,0mm 11,6 8240021894‍
400 MS 3,0mm 4,53 8240021902‍
450 MS 3,0mm 12,31 8240022086‍
450 MS 3,0mm 12,4 8240022085‍
450 MS 3,0mm 12,63 8240022084‍
450 MS 3,0mm 13,27 8240022083‍
450 MS 3,0mm 11,33 8240022087‍
450 MS 3,0mm 13,51 8240022082‍
450 MS 3,0mm 13,7 8240022081‍
450 MS 3,0mm 13,82 8240022080‍
450 MS 3,0mm 13,9 8240022079‍
450 MS 3,0mm 13,93 8240022078‍
450 MS 3,0mm 14,48 8240021905‍
450 MS 3,0mm 15,15 8240021904‍
450 MS 3,0mm 14,92 8240021903‍
450 MS 3,0mm 5,13 8240021912‍
450 MS 3,0mm 8,98 8240021910‍
450 MS 3,0mm 10,19 8240021909‍
450 MS 3,0mm 12,15 8240021908‍
450 MS 3,0mm 12,99 8240021907‍
450 MS 3,0mm 13,73 8240021906‍
450 MS 3,0mm 7,85 8240021911‍
500 MS 3,0mm 14,77 8240022095‍
500 MS 3,0mm 14,87 8240022094‍
500 MS 3,0mm 15,1 8240022093‍
500 MS 3,0mm 15,73 8240022092‍
500 MS 3,0mm 15,97 8240022091‍
500 MS 3,0mm 16,29 8240022089‍
500 MS 3,0mm 16,16 8240022090‍
500 MS 3,0mm 16,37 8240022088‍
500 MS 3,0mm 13,78 8240022096‍
500 MS 3,0mm 12,65 8240022097‍
500 MS 3,0mm 17,44 8240021915‍
500 MS 3,0mm 16,99 8240021914‍
500 MS 3,0mm 16,54 8240021913‍
500 MS 3,0mm 8,84 8240021921‍
500 MS 3,0mm 11,56 8240021920‍
500 MS 3,0mm 12,65 8240021919‍
500 MS 3,0mm 13,9 8240021918‍
500 MS 3,0mm 15,86 8240021917‍
500 MS 3,0mm 16,69 8240021916‍
500 MS 3,0mm 5,74 8240021922‍
550 MS 3,0mm 18,99 8240022098‍
550 MS 3,0mm 18,87 8240022099‍
550 MS 3,0mm 13,93 8240022107‍
550 MS 3,0mm 15,33 8240022106‍
550 MS 3,0mm 16,47 8240022105‍
550 MS 3,0mm 17,47 8240022104‍
550 MS 3,0mm 17,57 8240022103‍
550 MS 3,0mm 17,8 8240022102‍
550 MS 3,0mm 18,44 8240022101‍
550 MS 3,0mm 18,68 8240022100‍
550 MS 3,0mm 6,35 8240021932‍
550 MS 3,0mm 15,65 8240021929‍
550 MS 3,0mm 17,99 8240021927‍
550 MS 3,0mm 9,83 8240021931‍
550 MS 3,0mm 12,93 8240021930‍
550 MS 3,0mm 16,71 8240021928‍
550 MS 3,0mm 19,95 8240021926‍
550 MS 3,0mm 19,4 8240021925‍
550 MS 3,0mm 18,85 8240021924‍
550 MS 3,0mm 18,42 8240021923‍
600 MS 3,0mm 15,24 8240022117‍
600 MS 3,0mm 16,82 8240022116‍
600 MS 3,0mm 18,23 8240022115‍
600 MS 3,0mm 19,38 8240022114‍
600 MS 3,0mm 20,38 8240022113‍
600 MS 3,0mm 20,48 8240022112‍
600 MS 3,0mm 20,71 8240022111‍
600 MS 3,0mm 21,35 8240022110‍
600 MS 3,0mm 21,59 8240022109‍
600 MS 3,0mm 21,78 8240022108‍
600 MS 3,0mm 14,3 8240021940‍
600 MS 3,0mm 17,4 8240021939‍
600 MS 3,0mm 20,12 8240021938‍
600 MS 3,0mm 21,14 8240021937‍
600 MS 3,0mm 20,32 8240021933‍
600 MS 3,0mm 20,85 8240021934‍
600 MS 3,0mm 6,96 8240021942‍
600 MS 3,0mm 10,81 8240021941‍
600 MS 3,0mm 22,46 8240021936‍
600 MS 3,0mm 21,39 8240021935‍
630 MS 3,0mm 23,33 8240021945‍
630 MS 3,0mm 9,39 8240021951‍
630 MS 3,0mm 5,13 8240021952‍
630 MS 3,0mm 16,77 8240021949‍
630 MS 3,0mm 13,27 8240021950‍
630 MS 3,0mm 19,89 8240021948‍
630 MS 3,0mm 22,63 8240021947‍
630 MS 3,0mm 23,4 8240022118‍
630 MS 3,0mm 23,16 8240022119‍
630 MS 3,0mm 22,52 8240022120‍
630 MS 3,0mm 22,29 8240022121‍
630 MS 3,0mm 21,19 8240022123‍
630 MS 3,0mm 22,19 8240022122‍
630 MS 3,0mm 15,28 8240022127‍
630 MS 3,0mm 17,03 8240022126‍
630 MS 3,0mm 18,62 8240022125‍
630 MS 3,0mm 20,04 8240022124‍
630 MS 3,0mm 21,75 8240021943‍
630 MS 3,0mm 22,28 8240021944‍
630 MS 3,0mm 23,65 8240021946‍
650 MS 3,0mm 5,31 8240021962‍
650 MS 3,0mm 7,56 8240021961‍
650 MS 3,0mm 11,8 8240021960‍
650 MS 3,0mm 19,15 8240021958‍
650 MS 3,0mm 24,97 8240021956‍
650 MS 3,0mm 23,92 8240021954‍
650 MS 3,0mm 22,88 8240021953‍
650 MS 3,0mm 24,24 8240021955‍
650 MS 3,0mm 15,66 8240021959‍
650 MS 3,0mm 22,25 8240021957‍
650 MS 3,0mm 15,35 8240022137‍
650 MS 3,0mm 16,52 8240022136‍
650 MS 3,0mm 18,3 8240022135‍
650 MS 3,0mm 19,89 8240022134‍
650 MS 3,0mm 21,31 8240022133‍
650 MS 3,0mm 23,56 8240022130‍
650 MS 3,0mm 22,46 8240022132‍
650 MS 3,0mm 23,46 8240022131‍
650 MS 3,0mm 23,8 8240022129‍
650 MS 3,0mm 24,43 8240022128‍
700 MS 3,0mm 25,75 8240021964‍
700 MS 3,0mm 25,44 8240021963‍
700 MS 3,0mm 26,46 8240021965‍
700 MS 3,0mm 27,48 8240021966‍
700 MS 3,0mm 20,9 8240021968‍
700 MS 3,0mm 24,38 8240021967‍
700 MS 3,0mm 8,17 8240021972‍
700 MS 3,0mm 10,54 8240021971‍
700 MS 3,0mm 12,79 8240021970‍
700 MS 3,0mm 17,03 8240021969‍
700 MS 3,0mm 23,21 8240022143‍
700 MS 3,0mm 17,8 8240022147‍
700 MS 3,0mm 18,61 8240022146‍
700 MS 3,0mm 26,89 8240022139‍
700 MS 3,0mm 27,12 8240022138‍
700 MS 3,0mm 26,79 8240022140‍
700 MS 3,0mm 25,79 8240022141‍
700 MS 3,0mm 24,64 8240022142‍
700 MS 3,0mm 19,82 8240022145‍
700 MS 3,0mm 21,61 8240022144‍
750 MS 3,0mm 8,78 8240021982‍
750 MS 3,0mm 13,78 8240021981‍
750 MS 3,0mm 16,17 8240021980‍
750 MS 3,0mm 18,4 8240021979‍
750 MS 3,0mm 22,65 8240021978‍
750 MS 3,0mm 28,99 8240021975‍
750 MS 3,0mm 30 8240021976‍
750 MS 3,0mm 28 8240021974‍
750 MS 3,0mm 27,31 8240021973‍
750 MS 3,0mm 26,51 8240021977‍
750 MS 3,0mm 23,34 8240022155‍
750 MS 3,0mm 26,36 8240022153‍
750 MS 3,0mm 29,39 8240022151‍
750 MS 3,0mm 30,54 8240022150‍
750 MS 3,0mm 20,34 8240022157‍
750 MS 3,0mm 22,52 8240022156‍
750 MS 3,0mm 24,56 8240022154‍
750 MS 3,0mm 31,54 8240022149‍
750 MS 3,0mm 31,64 8240022148‍
750 MS 3,0mm 27,96 8240022152‍
800 MS 3,0mm 9,38 8240021992‍
800 MS 3,0mm 14,76 8240021991‍
800 MS 3,0mm 19,77 8240021990‍
800 MS 3,0mm 22,18 8240021989‍
800 MS 3,0mm 28,64 8240021987‍
800 MS 3,0mm 24,4 8240021988‍
800 MS 3,0mm 32,51 8240021986‍
800 MS 3,0mm 31,53 8240021985‍
800 MS 3,0mm 30,56 8240021984‍
800 MS 3,0mm 29,6 8240021983‍
800 MS 3,0mm 22,94 8240022167‍
800 MS 3,0mm 24,11 8240022166‍
800 MS 3,0mm 26,32 8240022165‍
800 MS 3,0mm 35,36 8240022158‍
800 MS 3,0mm 27,15 8240022164‍
800 MS 3,0mm 30,17 8240022162‍
800 MS 3,0mm 28,36 8240022163‍
800 MS 3,0mm 31,77 8240022161‍
800 MS 3,0mm 33,2 8240022160‍
800 MS 3,0mm 34,35 8240022159‍
850 MS 3,0mm 28,57 8240021998‍
850 MS 3,0mm 30,77 8240021997‍
850 MS 3,0mm 35,02 8240021996‍
850 MS 3,0mm 34,06 8240021995‍
850 MS 3,0mm 32,19 8240021993‍
850 MS 3,0mm 33,12 8240021994‍
850 MS 3,0mm 26,15 8240021999‍
850 MS 3,0mm 24,41 8240022177‍
850 MS 3,0mm 26,92 8240022176‍
850 MS 3,0mm 28,11 8240022175‍
850 MS 3,0mm 31,16 8240022173‍
850 MS 3,0mm 34,19 8240022171‍
850 MS 3,0mm 32,38 8240022172‍
850 MS 3,0mm 35,79 8240022170‍
850 MS 3,0mm 37,22 8240022169‍
850 MS 3,0mm 38,38 8240022168‍
850 MS 3,0mm 30,33 8240022174‍
850 MS 3,0mm 9,99 8240022002‍
850 MS 3,0mm 15,75 8240022001‍
850 MS 3,0mm 21,14 8240022000‍
900 MS 3,0mm 22,51 8240022010‍
900 MS 3,0mm 10,6 8240022012‍
900 MS 3,0mm 16,74 8240022011‍
900 MS 3,0mm 34,55 8240022183‍
900 MS 3,0mm 35,38 8240022182‍
900 MS 3,0mm 36,6 8240022181‍
900 MS 3,0mm 38,41 8240022180‍
900 MS 3,0mm 40,02 8240022179‍
900 MS 3,0mm 41,45 8240022178‍
900 MS 3,0mm 32,33 8240022184‍
900 MS 3,0mm 31,13 8240022185‍
900 MS 3,0mm 25,87 8240022187‍
900 MS 3,0mm 28,59 8240022186‍
900 MS 3,0mm 32,9 8240022008‍
900 MS 3,0mm 35,35 8240022007‍
900 MS 3,0mm 37,53 8240022006‍
900 MS 3,0mm 36,6 8240022005‍
900 MS 3,0mm 35,68 8240022004‍
900 MS 3,0mm 34,78 8240022003‍
900 MS 3,0mm 27,9 8240022009‍
950 MS 3,0mm 11,2 8240022022‍
950 MS 3,0mm 23,87 8240022020‍
950 MS 3,0mm 29,65 8240022019‍
950 MS 3,0mm 35,04 8240022018‍
950 MS 3,0mm 40,04 8240022017‍
950 MS 3,0mm 39,13 8240022015‍
950 MS 3,0mm 39,68 8240022016‍
950 MS 3,0mm 37,37 8240022013‍
950 MS 3,0mm 38,24 8240022014‍
950 MS 3,0mm 17,73 8240022021‍
950 MS 3,0mm 27,33 8240022197‍
950 MS 3,0mm 33 8240022195‍
950 MS 3,0mm 35,56 8240022194‍
950 MS 3,0mm 36,76 8240022193‍
950 MS 3,0mm 38,98 8240022192‍
950 MS 3,0mm 39,81 8240022191‍
950 MS 3,0mm 41,04 8240022190‍
950 MS 3,0mm 42,85 8240022189‍
950 MS 3,0mm 44,45 8240022188‍
950 MS 3,0mm 30,26 8240022196‍
1000 MS 3,0mm 25,24 8240022030‍
1000 MS 3,0mm 31,39 8240022029‍
1000 MS 3,0mm 37,17 8240022028‍
1000 MS 3,0mm 42,56 8240022027‍
1000 MS 3,0mm 41,67 8240022026‍
1000 MS 3,0mm 41,32 8240022025‍
1000 MS 3,0mm 40,8 8240022024‍
1000 MS 3,0mm 39,96 8240022023‍
1000 MS 3,0mm 28,79 8240022207‍
1000 MS 3,0mm 34,88 8240022205‍
1000 MS 3,0mm 37,63 8240022204‍
1000 MS 3,0mm 40,19 8240022203‍
1000 MS 3,0mm 41,4 8240022202‍
1000 MS 3,0mm 43,62 8240022201‍
1000 MS 3,0mm 44,45 8240022200‍
1000 MS 3,0mm 45,68 8240022199‍
1000 MS 3,0mm 47,49 8240022198‍
1000 MS 3,0mm 11,81 8240022032‍
1000 MS 3,0mm 18,71 8240022031‍
1000 MS 3,0mm 31,92 8240022206‍

Kontakta Nordfab Europe

+45 86 47 11 00 - [email protected]

It looks like you're coming from United States.

Would you like to go to the United States site?
