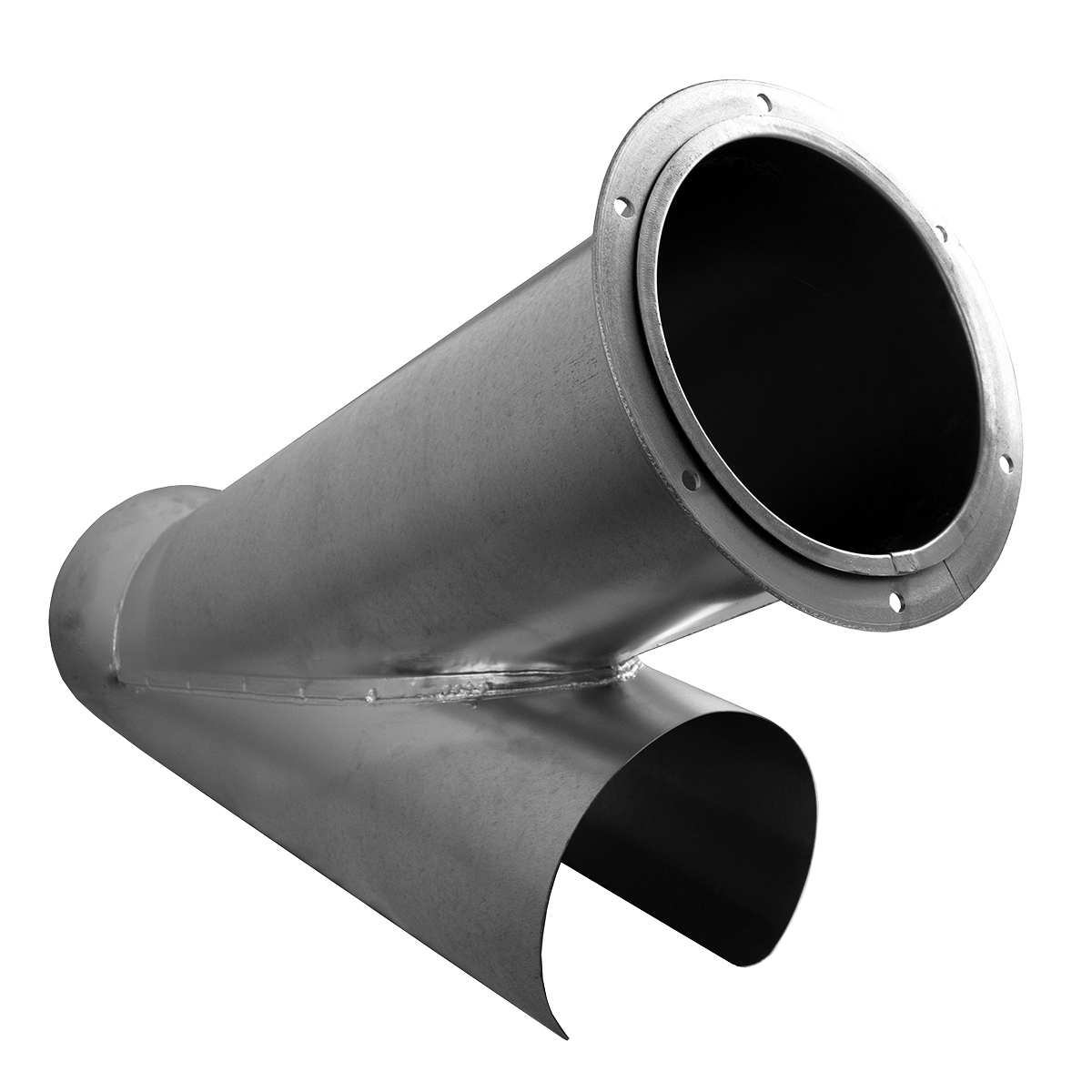

Flanged In Cut 16 Gauge

Flanged In Cut duct fittings are used to adding into existing lines of industrial ductwork. In-cuts are also known as “saddle taps”.

In-cuts are standard 30° or optional 45°.

Provided with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

16 gauge steel material provides extra durability for high wear applications.

• When ordering In Cuts, specify A and C diameters.
• Saddle length and width = 3" all directions from Branch Tube C.
• Available in galvanized steel and 304SS
• Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
• Other material gauges available include standard 22 and 20, 18, 14, 12 and 10
• Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
