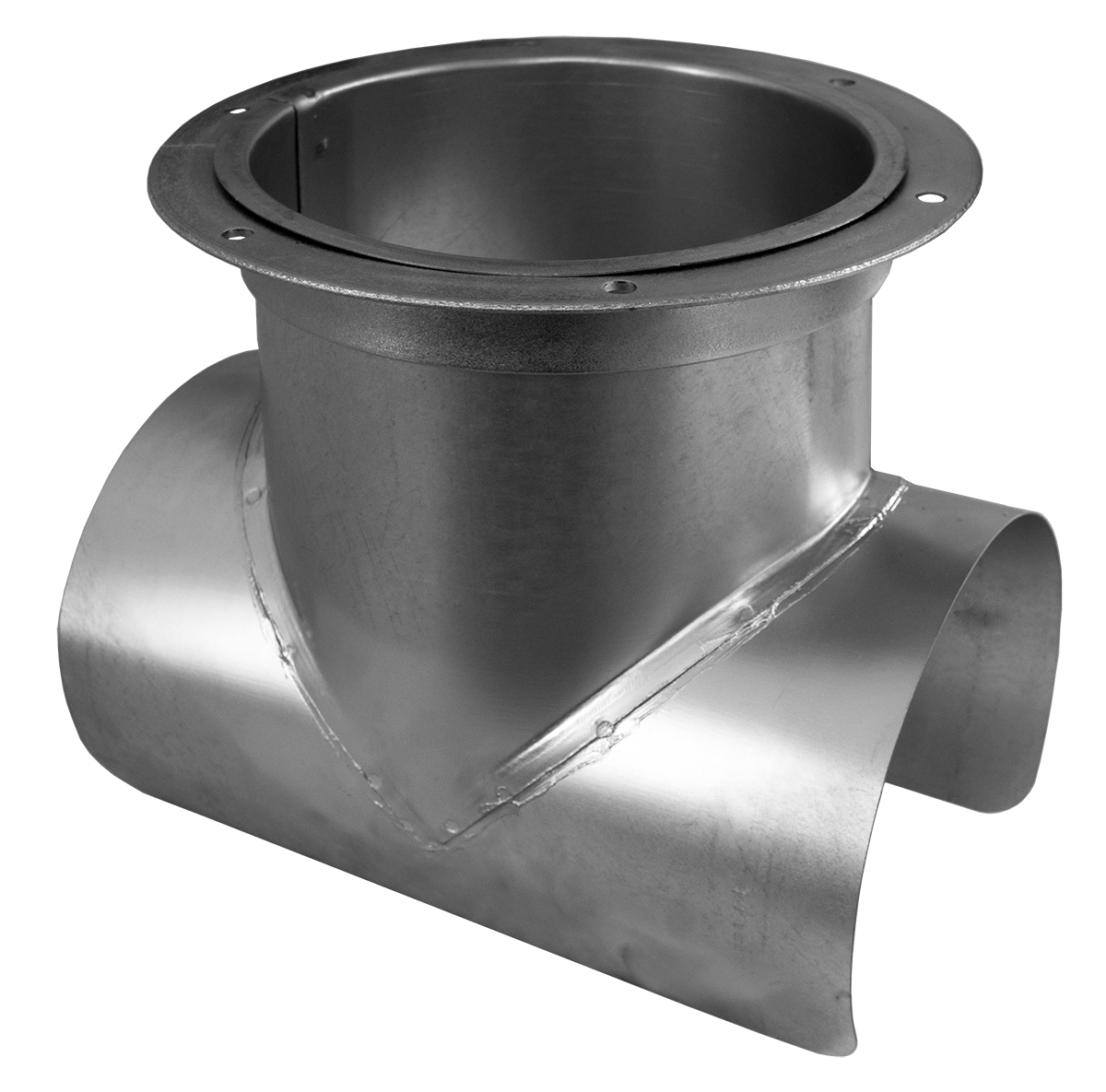

Flanged Tap In 14 Gauge

Flanged Tap In duct fittings are used to add new duct into existing lines of industrial ductwork.

Provided with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

14 gauge steel material provides extra durability for high wear applications. 14 Gauge Tap Ins have leak-free, solid welded seams; elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

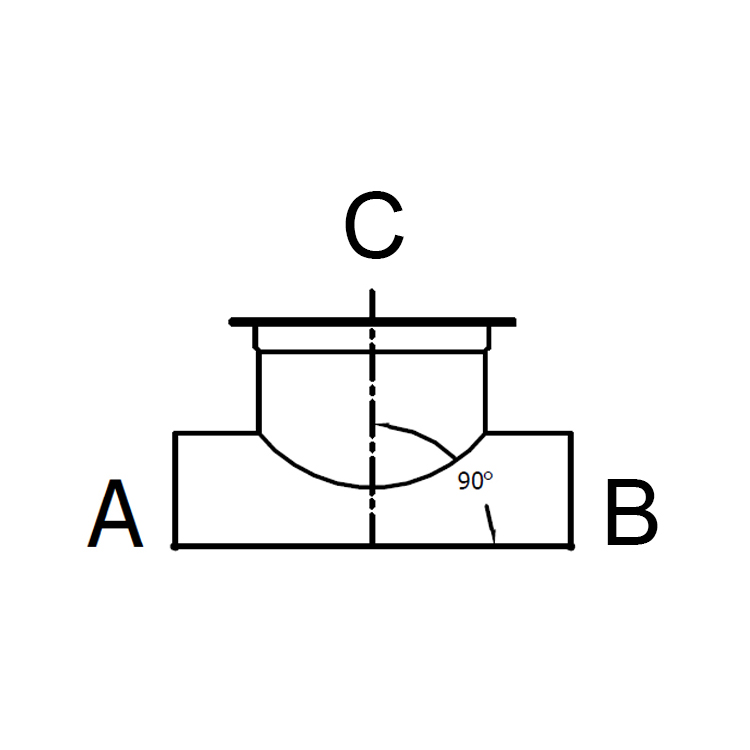

• When ordering, specify A (existing pipe diameter) and C diameter.
• Saddle length and width = 3" all directions from Branch Tube C
• Constructed of 14 gauge galvanized steel material
• Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
• Other material gauges available include standard 22 and 20, 18, 16, 12 and 10
• Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
