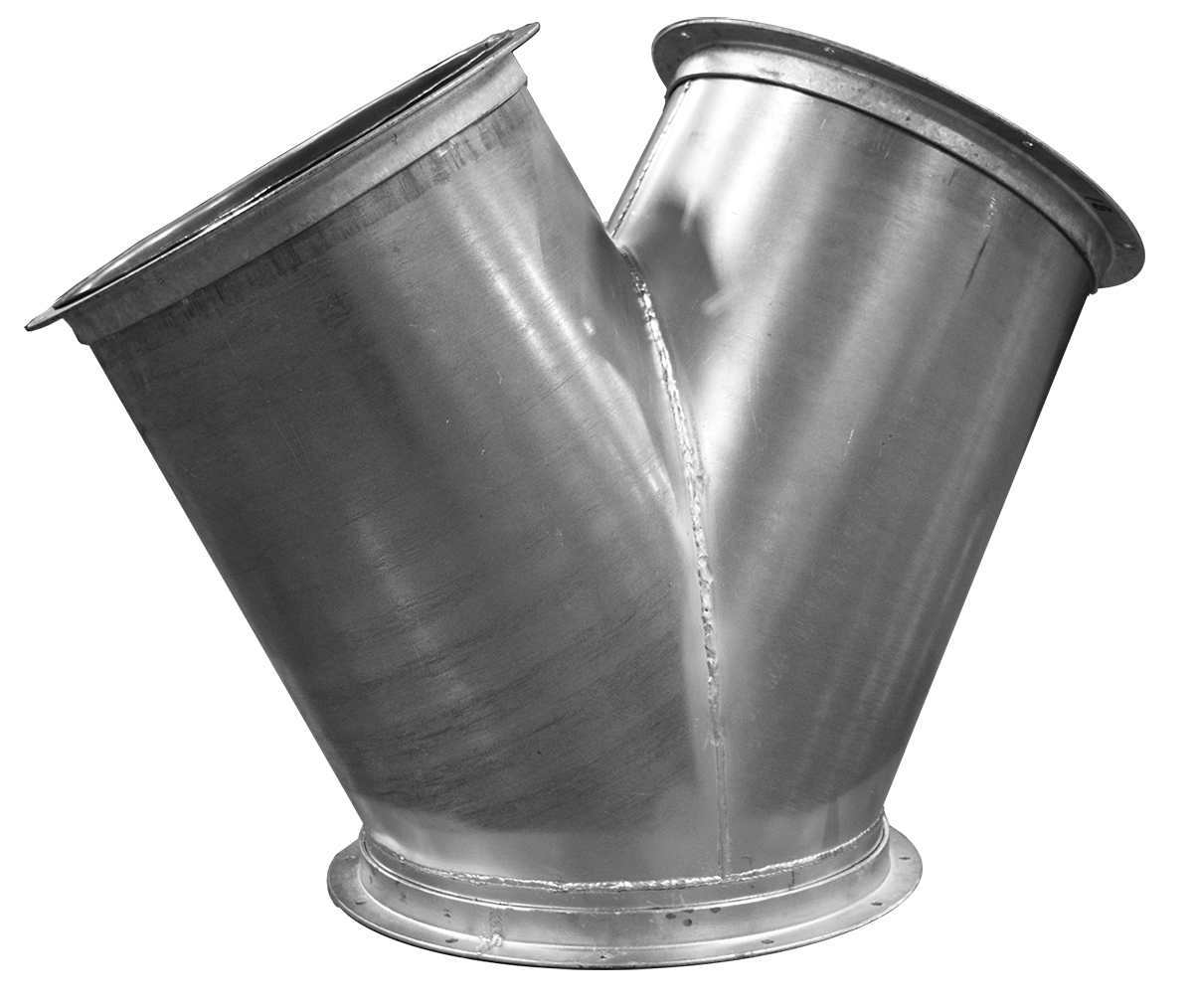

Flanged Y Branch 14 Gauge 90°

Nordfab 14 Gauge Y Branches (sometimes called “true wyes” or "breeches" branches) are standard 60º between legs, optional 90º (90º Y Branch item numbers shown below).

14 gauge steel material provides extra durability for high wear applications. 14 Gauge Y-Branches have leak-free, solid welded seams; elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

Flanged Y Branches are standard with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

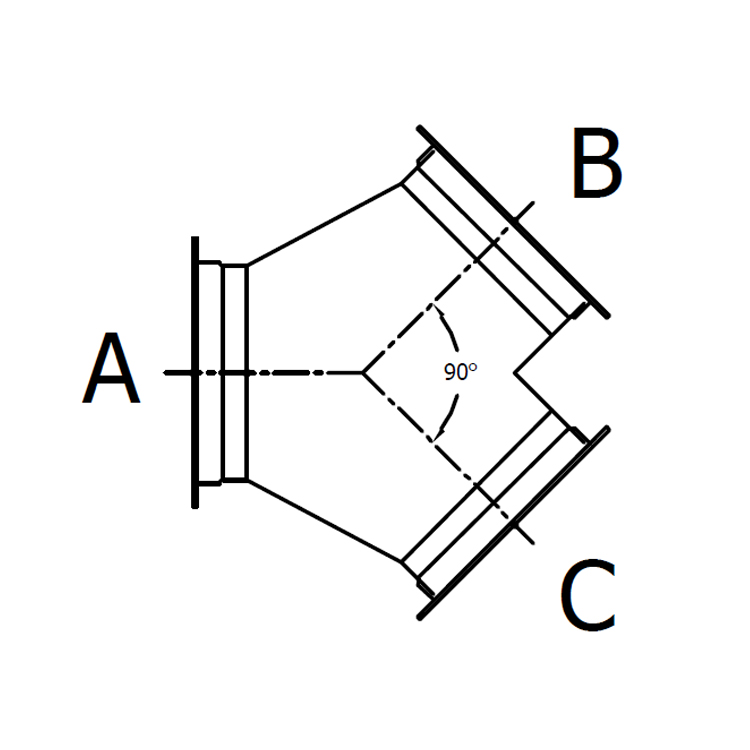

• When ordering, specify A, B, C.  Both B & C each must be at least 50% of A, with B or C being at least 80% of the opposite leg.
• Use the following formula to determine length: L = A + 4”
• Use the following formula to determine length: L = C X 2 + 15"
• Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
• Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
• Other material gauges available include standard 22 and 20, 18, 16, 12 and 10
• Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
