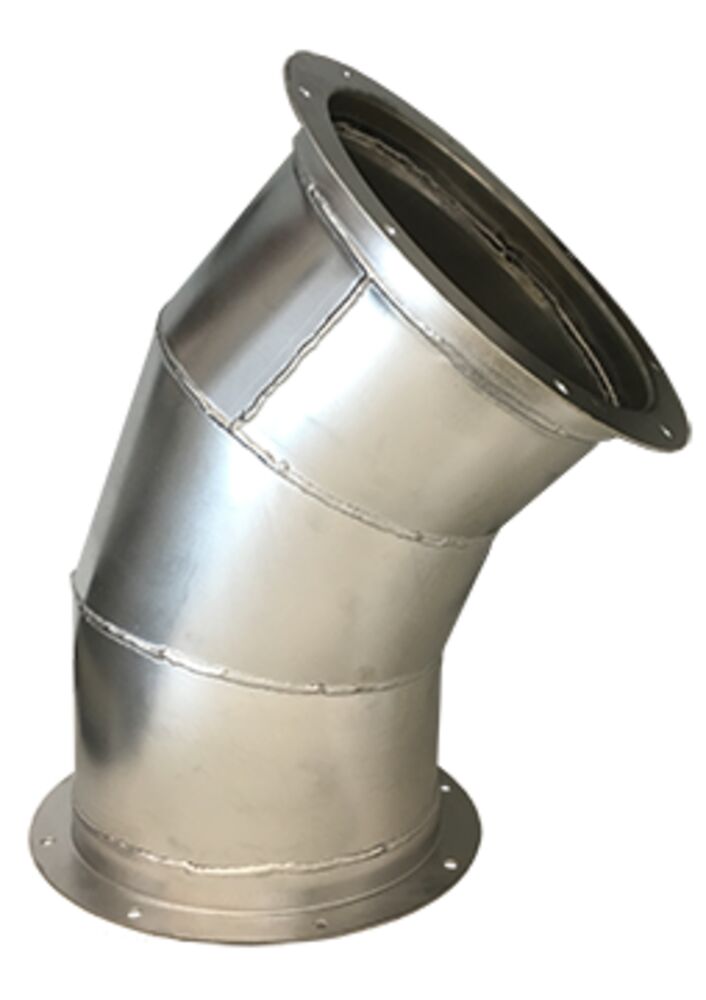

14 Gauge Flanged Elbows (bends) allow airflow direction change in a line of dust collection ducting. 14 gauge galvanized steel Flanged Elbows are standard with Angle Flange (ANGFL) ends. Angle Flanges are attached loosely and retained via a vanstone lip.
All Nordfab Elbows are available in 90°, 60°, 45°, and 30° bends.
14 Gauge Elbows are supplied in solid-welded construction, providing a leak-free seam. Elimination of air leakage improves dust collection system efficiency, providing energy cost savings.
14 gauge steel construction provides extra durability for high wear applications.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| ø A in | Angle degree | Center line radius | Material | T mm | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 8 | 90 | 1.5 | Galv | 14ga | 4211-0890-112000 | 8040400428 | |
| 8 | 60 | 1.5 | Galv | 14ga | 4211-0860-112000 | 8040400427 | |
| 8 | 45 | 1.5 | Galv | 14ga | 4211-0845-112000 | 8040400426 | |
| 8 | 30 | 1.5 | Galv | 14ga | 4211-0830-112000 | 8040400425 | |
| 9 | 90 | 1.5 | Galv | 14ga | 4211-0990-113500 | 8040400432 | |
| 9 | 60 | 1.5 | Galv | 14ga | 4211-0960-113500 | 8040400431 | |
| 9 | 45 | 1.5 | Galv | 14ga | 4211-0945-113500 | 8040400430 | |
| 9 | 30 | 1.5 | Galv | 14ga | 4211-0930-113500 | 8040400429 | |
| 10 | 90 | 1.5 | Galv | 14ga | 4211-1090-115000 | 8040400436 | |
| 10 | 60 | 1.5 | Galv | 14ga | 4211-1060-115000 | 8040400435 | |
| 10 | 45 | 1.5 | Galv | 14ga | 4211-1045-115000 | 8040400434 | |
| 10 | 30 | 1.5 | Galv | 14ga | 4211-1030-115000 | 8040400433 | |
| 11 | 90 | 1.5 | Galv | 14ga | 4211-1190-116500 | 8040400440 | |
| 11 | 60 | 1.5 | Galv | 14ga | 4211-1160-116500 | 8040400439 | |
| 11 | 45 | 1.5 | Galv | 14ga | 4211-1145-116500 | 8040400438 | |
| 11 | 30 | 1.5 | Galv | 14ga | 4211-1130-116500 | 8040400437 | |
| 12 | 90 | 1.5 | Galv | 14ga | 4211-1290-118000 | 8040400444 | |
| 12 | 60 | 1.5 | Galv | 14ga | 4211-1260-118000 | 8040400443 | |
| 12 | 45 | 1.5 | Galv | 14ga | 4211-1245-118000 | 8040400442 | |
| 12 | 30 | 1.5 | Galv | 14ga | 4211-1230-118000 | 8040400441 | |
| 13 | 90 | 1.5 | Galv | 14ga | 4211-1390-119500 | 8040400448 | |
| 13 | 60 | 1.5 | Galv | 14ga | 4211-1360-119500 | 8040400447 | |
| 13 | 45 | 1.5 | Galv | 14ga | 4211-1345-119500 | 8040400446 | |
| 13 | 30 | 1.5 | Galv | 14ga | 4211-1330-119500 | 8040400445 | |
| 14 | 90 | 1.5 | Galv | 14ga | 4211-1490-121000 | 8040400452 | |
| 14 | 60 | 1.5 | Galv | 14ga | 4211-1460-121000 | 8040400451 | |
| 14 | 45 | 1.5 | Galv | 14ga | 4211-1445-121000 | 8040400450 | |
| 14 | 30 | 1.5 | Galv | 14ga | 4211-1430-121000 | 8040400449 | |
| 15 | 90 | 1.5 | Galv | 14ga | 4211-1590-122500 | 8040400456 | |
| 15 | 60 | 1.5 | Galv | 14ga | 4211-1560-122500 | 8040400455 | |
| 15 | 45 | 1.5 | Galv | 14ga | 4211-1545-122500 | 8040400454 | |
| 15 | 30 | 1.5 | Galv | 14ga | 4211-1530-122500 | 8040400453 | |
| 16 | 90 | 1.5 | Galv | 14ga | 4211-1690-124000 | 8040400460 | |
| 16 | 60 | 1.5 | Galv | 14ga | 4211-1660-124000 | 8040400459 | |
| 16 | 45 | 1.5 | Galv | 14ga | 4211-1645-124000 | 8040400458 | |
| 16 | 30 | 1.5 | Galv | 14ga | 4211-1630-124000 | 8040400457 | |
| 17 | 90 | 1.5 | Galv | 14ga | 4211-1790-125500 | 8040400464 | |
| 17 | 60 | 1.5 | Galv | 14ga | 4211-1760-125500 | 8040400463 | |
| 17 | 45 | 1.5 | Galv | 14ga | 4211-1745-125500 | 8040400462 | |
| 17 | 30 | 1.5 | Galv | 14ga | 4211-1730-125500 | 8040400461 | |
| 18 | 90 | 1.5 | Galv | 14ga | 4211-1890-127000 | 8040400468 | |
| 18 | 60 | 1.5 | Galv | 14ga | 4211-1860-127000 | 8040400467 | |
| 18 | 45 | 1.5 | Galv | 14ga | 4211-1845-127000 | 8040400466 | |
| 18 | 30 | 1.5 | Galv | 14ga | 4211-1830-127000 | 8040400465 | |
| 19 | 90 | 1.5 | Galv | 14ga | 4211-1990-128500 | 8040400472 | |
| 19 | 60 | 1.5 | Galv | 14ga | 4211-1960-128500 | 8040400471 | |
| 19 | 45 | 1.5 | Galv | 14ga | 4211-1945-128500 | 8040400470 | |
| 19 | 30 | 1.5 | Galv | 14ga | 4211-1930-128500 | 8040400469 | |
| 20 | 90 | 1.5 | Galv | 14ga | 4211-2090-130000 | 8040400476 | |
| 20 | 60 | 1.5 | Galv | 14ga | 4211-2060-130000 | 8040400475 | |
| 20 | 45 | 1.5 | Galv | 14ga | 4211-2045-130000 | 8040400474 | |
| 20 | 30 | 1.5 | Galv | 14ga | 4211-2030-130000 | 8040400473 | |
| 21 | 90 | 1.5 | Galv | 14ga | 4211-2190-131500 | 8040400480 | |
| 21 | 60 | 1.5 | Galv | 14ga | 4211-2160-131500 | 8040400479 | |
| 21 | 45 | 1.5 | Galv | 14ga | 4211-2145-131500 | 8040400478 | |
| 21 | 30 | 1.5 | Galv | 14ga | 4211-2130-131500 | 8040400477 | |
| 22 | 90 | 1.5 | Galv | 14ga | 4211-2290-133000 | 8040400484 | |
| 22 | 60 | 1.5 | Galv | 14ga | 4211-2260-133000 | 8040400483 | |
| 22 | 45 | 1.5 | Galv | 14ga | 4211-2245-133000 | 8040400482 | |
| 22 | 30 | 1.5 | Galv | 14ga | 4211-2230-133000 | 8040400481 | |
| 23 | 90 | 1.5 | Galv | 14ga | 4211-2390-134500 | 8040400488 | |
| 23 | 60 | 1.5 | Galv | 14ga | 4211-2360-134500 | 8040400487 | |
| 23 | 45 | 1.5 | Galv | 14ga | 4211-2345-134500 | 8040400486 | |
| 23 | 30 | 1.5 | Galv | 14ga | 4211-2330-134500 | 8040400485 | |
| 24 | 90 | 1.5 | Galv | 14ga | 4211-2490-136000 | 8040400492 | |
| 24 | 60 | 1.5 | Galv | 14ga | 4211-2460-136000 | 8040400491 | |
| 24 | 45 | 1.5 | Galv | 14ga | 4211-2445-136000 | 8040400490 | |
| 24 | 30 | 1.5 | Galv | 14ga | 4211-2430-136000 | 8040400489 | |
| 26 | 90 | 1.5 | Galv | 14ga | 4211-2690-139000 | 8040400496 | |
| 26 | 60 | 1.5 | Galv | 14ga | 4211-2660-139000 | 8040400495 | |
| 26 | 45 | 1.5 | Galv | 14ga | 4211-2645-139000 | 8040400494 | |
| 26 | 30 | 1.5 | Galv | 14ga | 4211-2630-139000 | 8040400493 | |
| 28 | 90 | 1.5 | Galv | 14ga | 4211-2890-142000 | 8040400500 | |
| 28 | 60 | 1.5 | Galv | 14ga | 4211-2860-142000 | 8040400499 | |
| 28 | 45 | 1.5 | Galv | 14ga | 4211-2845-142000 | 8040400498 | |
| 28 | 30 | 1.5 | Galv | 14ga | 4211-2830-142000 | 8040400497 | |
| 30 | 90 | 1.5 | Galv | 14ga | 4211-3090-145000 | 8040400504 | |
| 30 | 60 | 1.5 | Galv | 14ga | 4211-3060-145000 | 8040400503 | |
| 30 | 45 | 1.5 | Galv | 14ga | 4211-3045-145000 | 8040400502 | |
| 30 | 30 | 1.5 | Galv | 14ga | 4211-3030-145000 | 8040400501 | |
| 32 | 90 | 1.5 | Galv | 14ga | 4211-3290-148000 | 8040400508 | |
| 32 | 60 | 1.5 | Galv | 14ga | 4211-3260-148000 | 8040400507 | |
| 32 | 45 | 1.5 | Galv | 14ga | 4211-3245-148000 | 8040400506 | |
| 32 | 30 | 1.5 | Galv | 14ga | 4211-3230-148000 | 8040400505 | |
| 34 | 90 | 1.5 | Galv | 14ga | 4211-3490-151000 | 8040400512 | |
| 34 | 60 | 1.5 | Galv | 14ga | 4211-3460-151000 | 8040400511 | |
| 34 | 45 | 1.5 | Galv | 14ga | 4211-3445-151000 | 8040400510 | |
| 34 | 30 | 1.5 | Galv | 14ga | 4211-3430-151000 | 8040400509 | |
| 36 | 90 | 1.5 | Galv | 14ga | 4211-3690-154000 | 8040400516 | |
| 36 | 60 | 1.5 | Galv | 14ga | 4211-3660-154000 | 8040400515 | |
| 36 | 45 | 1.5 | Galv | 14ga | 4211-3645-154000 | 8040400514 | |
| 36 | 30 | 1.5 | Galv | 14ga | 4211-3630-154000 | 8040400513 | |
| 38 | 90 | 1.5 | Galv | 14ga | 4211-3890-157000 | 8040400520 | |
| 38 | 60 | 1.5 | Galv | 14ga | 4211-3860-157000 | 8040400519 | |
| 38 | 45 | 1.5 | Galv | 14ga | 4211-3845-157000 | 8040400518 | |
| 38 | 30 | 1.5 | Galv | 14ga | 4211-3830-157000 | 8040400517 | |
| 40 | 90 | 1.5 | Galv | 14ga | 4211-4090-160000 | 8040400524 | |
| 40 | 60 | 1.5 | Galv | 14ga | 4211-4060-160000 | 8040400523 | |
| 40 | 45 | 1.5 | Galv | 14ga | 4211-4045-160000 | 8040400522 | |
| 40 | 30 | 1.5 | Galv | 14ga | 4211-4030-160000 | 8040400521 | |
| 42 | 90 | 1.5 | Galv | 14ga | 4211-4290-163000 | 8040400528 | |
| 42 | 60 | 1.5 | Galv | 14ga | 4211-4260-163000 | 8040400527 | |
| 42 | 45 | 1.5 | Galv | 14ga | 4211-4245-163000 | 8040400526 | |
| 42 | 30 | 1.5 | Galv | 14ga | 4211-4230-163000 | 8040400525 | |
| 44 | 90 | 1.5 | Galv | 14ga | 4211-4490-166000 | 8040400532 | |
| 44 | 60 | 1.5 | Galv | 14ga | 4211-4460-166000 | 8040400531 | |
| 44 | 45 | 1.5 | Galv | 14ga | 4211-4445-166000 | 8040400530 | |
| 44 | 30 | 1.5 | Galv | 14ga | 4211-4430-166000 | 8040400529 | |
| 46 | 90 | 1.5 | Galv | 14ga | 4211-4690-169000 | 8040400536 | |
| 46 | 60 | 1.5 | Galv | 14ga | 4211-4660-169000 | 8040400535 | |
| 46 | 45 | 1.5 | Galv | 14ga | 4211-4645-169000 | 8040400534 | |
| 46 | 30 | 1.5 | Galv | 14ga | 4211-4630-169000 | 8040400533 | |
| 48 | 90 | 1.5 | Galv | 14ga | 4211-4890-172000 | 8040400540 | |
| 48 | 60 | 1.5 | Galv | 14ga | 4211-4860-172000 | 8040400539 | |
| 48 | 45 | 1.5 | Galv | 14ga | 4211-4845-172000 | 8040400538 | |
| 48 | 30 | 1.5 | Galv | 14ga | 4211-4830-172000 | 8040400537 | |
| 50 | 90 | 1.5 | Galv | 14ga | 4211-5090-175000 | 8040400544 | |
| 50 | 60 | 1.5 | Galv | 14ga | 4211-5060-175000 | 8040400543 | |
| 50 | 45 | 1.5 | Galv | 14ga | 4211-5045-175000 | 8040400542 | |
| 50 | 30 | 1.5 | Galv | 14ga | 4211-5030-175000 | 8040400541 |
