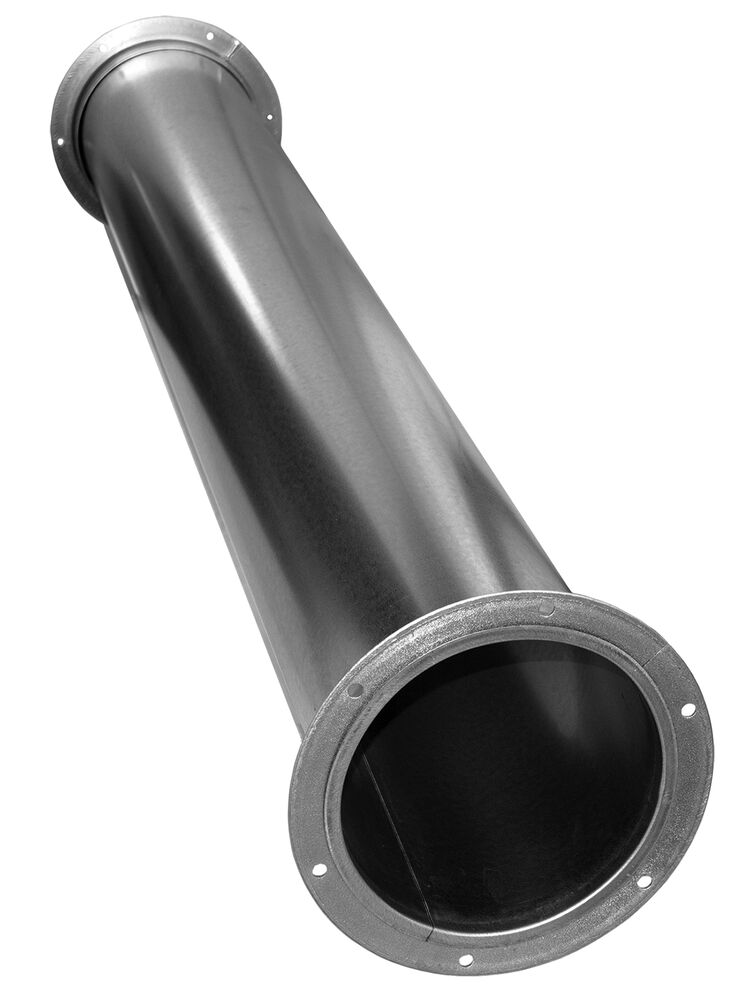

Nordfab Flanged Duct Pipe is for applications requiring pipe sizes greater than 24″ diameter or where flanged connections are required.
The rotational industry-standard Angle Flanges on our Flanged Pipes are retained by Van Stone lips on the pipe ends. Pipe length is nominally 5′.
Contact Nordfab or your local Nordfab dealer for assistance with optional end types, larger sizes, and material / gauge options.
| ø A in | Material | T mm | Length (in) | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|
| 3 | Galv | 22ga | 59 | 5.4 | 3201-03LW-100000 | 8040206827 |
| 4 | Galv | 22ga | 59 | 7.05 | 3201-04LW-100000 | 8040206828 |
| 5 | Galv | 22ga | 59 | 9.05 | 3201-05LW-100000 | 8040206829 |
| 6 | Galv | 22ga | 59 | 10.73 | 3201-06LW-100000 | 8040206830 |
| 7 | Galv | 22ga | 59 | 15.7 | 3201-07LW-100000 | 8040206831 |
| 8 | Galv | 22ga | 59 | 17.75 | 3201-08LW-100000 | 8040206832 |
| 9 | Galv | 22ga | 59 | 19.92 | 3201-09LW-100000 | 8040206833 |
| 10 | Galv | 22ga | 59 | 23.1 | 3201-10LW-100000 | 8040206834 |
| 11 | Galv | 22ga | 59 | 25.1 | 3201-11LW-100000 | 8040206835 |
| 12 | Galv | 22ga | 59 | 27.75 | 3201-12LW-100000 | 8040206836 |
| 13 | Galv | 20ga | 59 | 29.9 | 3201-13LW-100000 | 8040206837 |
| 14 | Galv | 20ga | 59 | 36.8 | 3201-14LW-100000 | 8040206838 |
| 15 | Galv | 20ga | 59 | 44.25 | 3201-15LW-100000 | 8040206839 |
| 16 | Galv | 20ga | 59 | 47.15 | 3201-16LW-100000 | 8040206840 |
| 17 | Galv | 20ga | 59 | 49.59 | 3201-17LW-100000 | 8040206841 |
| 18 | Galv | 20ga | 59 | 51 | 3201-18LW-100000 | 8040206842 |
| 19 | Galv | 20ga | 59 | 55 | 3201-19LW-100000 | 8040206843 |
| 20 | Galv | 20ga | 59 | 57 | 3201-20LW-100000 | 8040206844 |
| 21 | Galv | 20ga | 59 | 59.5 | 3201-21LW-100000 | 8040206845 |
| 22 | Galv | 20ga | 59 | 63.5 | 3201-22LW-100000 | 8040206846 |
| 23 | Galv | 20ga | 59 | 65.5 | 3201-23LW-100000 | 8040206847 |
| 24 | Galv | 20ga | 59 | 68.82 | 3201-24LW-100000 | 8040206848 |
| 3 | 304SS | 22ga | 59 | 5.4 | 3201-03LW-200000 | 8040206849 |
| 4 | 304SS | 22ga | 59 | 7.05 | 3201-04LW-200000 | 8040206850 |
| 5 | 304SS | 22ga | 59 | 9.05 | 3201-05LW-200000 | 8040206851 |
| 6 | 304SS | 22ga | 59 | 10.73 | 3201-06LW-200000 | 8040206852 |
| 7 | 304SS | 22ga | 59 | 15.7 | 3201-07LW-200000 | 8040206853 |
| 8 | 304SS | 22ga | 59 | 17.75 | 3201-08LW-200000 | 8040206854 |
| 9 | 304SS | 22ga | 59 | 19.92 | 3201-09LW-200000 | 8040206855 |
| 10 | 304SS | 22ga | 59 | 23.1 | 3201-10LW-200000 | 8040206856 |
| 11 | 304SS | 22ga | 59 | 25.1 | 3201-11LW-200000 | 8040206857 |
| 12 | 304SS | 22ga | 59 | 27.75 | 3201-12LW-200000 | 8040206858 |
| 13 | 304SS | 20ga | 59 | 29.9 | 3201-13LW-200000 | 8040206859 |
| 14 | 304SS | 20ga | 59 | 36.8 | 3201-14LW-200000 | 8040206860 |
| 15 | 304SS | 20ga | 59 | 44.25 | 3201-15LW-200000 | 8040206861 |
| 16 | 304SS | 20ga | 59 | 47.15 | 3201-16LW-200000 | 8040206862 |
| 17 | 304SS | 20ga | 59 | 49.59 | 3201-17LW-200000 | 8040206863 |
| 18 | 304SS | 20ga | 59 | 51 | 3201-18LW-200000 | 8040206864 |
| 19 | 304SS | 20ga | 59 | 55 | 3201-19LW-200000 | 8040206865 |
| 20 | 304SS | 20ga | 59 | 57 | 3201-20LW-200000 | 8040206866 |
| 21 | 304SS | 20ga | 59 | 59.5 | 3201-21LW-200000 | 8040206867 |
| 22 | 304SS | 20ga | 59 | 63.5 | 3201-22LW-200000 | 8040206868 |
| 23 | 304SS | 20ga | 59 | 65.5 | 3201-23LW-200000 | 8040206869 |
| 24 | 304SS | 20ga | 59 | 68.82 | 3201-24LW-200000 | 8040206870 |
