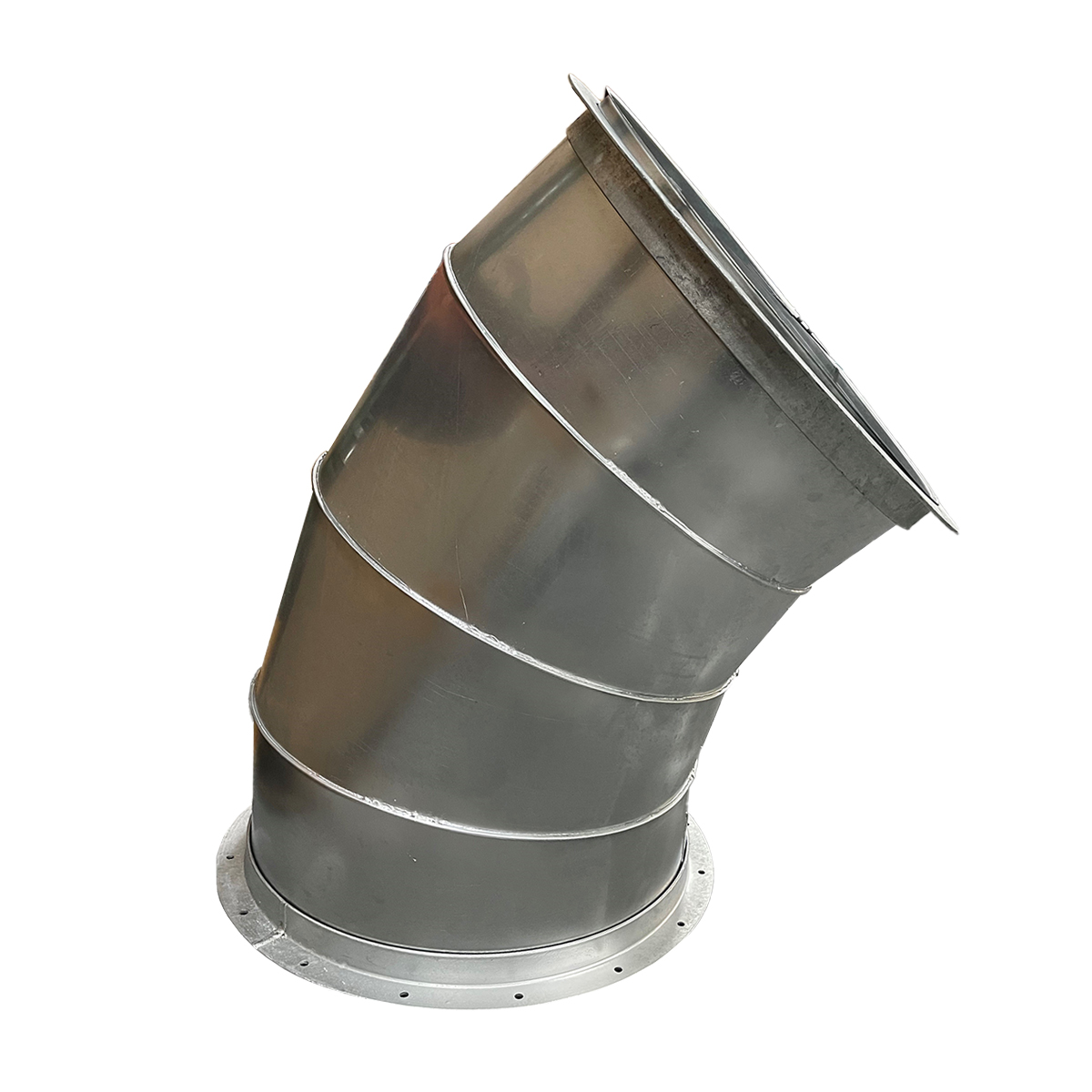

18 Gauge Flanged Elbows (bends) allow airflow direction change in a line of dust collection ducting. 18 gauge galvanized steel Flanged Elbows are standard with Angle Flange (ANGFL) ends. Angle Flanges are attached loosely and retained via a vanstone lip.
All Nordfab Elbows are available in 90°, 60°, 45°, and 30° bends.
18 gauge steel construction provides extra durability for high wear applications.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| ø A in | Angle degree | Center line radius | Material | T mm | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 8 | 90 | 1.5 | Galv | 18ga | 8211-0890-112000 | 8040402111 | |
| 8 | 60 | 1.5 | Galv | 18ga | 8211-0860-112000 | 8040402109 | |
| 8 | 45 | 1.5 | Galv | 18ga | 8211-0845-112000 | 8040402107 | |
| 8 | 30 | 1.5 | Galv | 18ga | 8211-0830-112000 | 8040402105 | |
| 9 | 90 | 1.5 | Galv | 18ga | 8211-0990-113500 | 8040402127 | |
| 9 | 60 | 1.5 | Galv | 18ga | 8211-0960-113500 | 8040402125 | |
| 9 | 45 | 1.5 | Galv | 18ga | 8211-0945-113500 | 8040402123 | |
| 9 | 30 | 1.5 | Galv | 18ga | 8211-0930-113500 | 8040402121 | |
| 10 | 90 | 1.5 | Galv | 18ga | 8211-1090-115000 | 8040402143 | |
| 10 | 60 | 1.5 | Galv | 18ga | 8211-1060-115000 | 8040402141 | |
| 10 | 45 | 1.5 | Galv | 18ga | 8211-1045-115000 | 8040402139 | |
| 10 | 30 | 1.5 | Galv | 18ga | 8211-1030-115000 | 8040402137 | |
| 11 | 90 | 1.5 | Galv | 18ga | 8211-1190-116500 | 8040402159 | |
| 11 | 60 | 1.5 | Galv | 18ga | 8211-1160-116500 | 8040402157 | |
| 11 | 45 | 1.5 | Galv | 18ga | 8211-1145-116500 | 8040402155 | |
| 11 | 30 | 1.5 | Galv | 18ga | 8211-1130-116500 | 8040402153 | |
| 12 | 90 | 1.5 | Galv | 18ga | 8211-1290-118000 | 8040402175 | |
| 12 | 60 | 1.5 | Galv | 18ga | 8211-1260-118000 | 8040402173 | |
| 12 | 45 | 1.5 | Galv | 18ga | 8211-1245-118000 | 8040402171 | |
| 12 | 30 | 1.5 | Galv | 18ga | 8211-1230-118000 | 8040402169 | |
| 13 | 90 | 1.5 | Galv | 18ga | 8211-1390-119500 | 8040402191 | |
| 13 | 60 | 1.5 | Galv | 18ga | 8211-1360-119500 | 8040402189 | |
| 13 | 45 | 1.5 | Galv | 18ga | 8211-1345-119500 | 8040402187 | |
| 13 | 30 | 1.5 | Galv | 18ga | 8211-1330-119500 | 8040402185 | |
| 14 | 90 | 1.5 | Galv | 18ga | 8211-1490-121000 | 8040402207 | |
| 14 | 60 | 1.5 | Galv | 18ga | 8211-1460-121000 | 8040402205 | |
| 14 | 45 | 1.5 | Galv | 18ga | 8211-1445-121000 | 8040402203 | |
| 14 | 30 | 1.5 | Galv | 18ga | 8211-1430-121000 | 8040402201 | |
| 15 | 90 | 1.5 | Galv | 18ga | 8211-1590-122500 | 8040402223 | |
| 15 | 60 | 1.5 | Galv | 18ga | 8211-1560-122500 | 8040402221 | |
| 15 | 45 | 1.5 | Galv | 18ga | 8211-1545-122500 | 8040402219 | |
| 15 | 30 | 1.5 | Galv | 18ga | 8211-1530-122500 | 8040402217 | |
| 16 | 90 | 1.5 | Galv | 18ga | 8211-1690-124000 | 8040402239 | |
| 16 | 60 | 1.5 | Galv | 18ga | 8211-1660-124000 | 8040402237 | |
| 16 | 45 | 1.5 | Galv | 18ga | 8211-1645-124000 | 8040402235 | |
| 16 | 30 | 1.5 | Galv | 18ga | 8211-1630-124000 | 8040402233 | |
| 17 | 90 | 1.5 | Galv | 18ga | 8211-1790-125500 | 8040402255 | |
| 17 | 60 | 1.5 | Galv | 18ga | 8211-1760-125500 | 8040402253 | |
| 17 | 45 | 1.5 | Galv | 18ga | 8211-1745-125500 | 8040402251 | |
| 17 | 30 | 1.5 | Galv | 18ga | 8211-1730-125500 | 8040402249 | |
| 18 | 90 | 1.5 | Galv | 18ga | 8211-1890-127000 | 8040402271 | |
| 18 | 60 | 1.5 | Galv | 18ga | 8211-1860-127000 | 8040402269 | |
| 18 | 45 | 1.5 | Galv | 18ga | 8211-1845-127000 | 8040402267 | |
| 18 | 30 | 1.5 | Galv | 18ga | 8211-1830-127000 | 8040402265 | |
| 19 | 90 | 1.5 | Galv | 18ga | 8211-1990-128500 | 8040402287 | |
| 19 | 60 | 1.5 | Galv | 18ga | 8211-1960-128500 | 8040402285 | |
| 19 | 45 | 1.5 | Galv | 18ga | 8211-1945-128500 | 8040402283 | |
| 19 | 30 | 1.5 | Galv | 18ga | 8211-1930-128500 | 8040402281 | |
| 20 | 90 | 1.5 | Galv | 18ga | 8211-2090-130000 | 8040402303 | |
| 20 | 60 | 1.5 | Galv | 18ga | 8211-2060-130000 | 8040402301 | |
| 20 | 45 | 1.5 | Galv | 18ga | 8211-2045-130000 | 8040402299 | |
| 20 | 30 | 1.5 | Galv | 18ga | 8211-2030-130000 | 8040402297 | |
| 21 | 90 | 1.5 | Galv | 18ga | 8211-2190-131500 | 8040402319 | |
| 21 | 60 | 1.5 | Galv | 18ga | 8211-2160-131500 | 8040402317 | |
| 21 | 45 | 1.5 | Galv | 18ga | 8211-2145-131500 | 8040402315 | |
| 21 | 30 | 1.5 | Galv | 18ga | 8211-2130-131500 | 8040402313 | |
| 22 | 90 | 1.5 | Galv | 18ga | 8211-2290-133000 | 8040402335 | |
| 22 | 60 | 1.5 | Galv | 18ga | 8211-2260-133000 | 8040402333 | |
| 22 | 45 | 1.5 | Galv | 18ga | 8211-2245-133000 | 8040402331 | |
| 22 | 30 | 1.5 | Galv | 18ga | 8211-2230-133000 | 8040402329 | |
| 23 | 90 | 1.5 | Galv | 18ga | 8211-2390-134500 | 8040402351 | |
| 23 | 60 | 1.5 | Galv | 18ga | 8211-2360-134500 | 8040402349 | |
| 23 | 45 | 1.5 | Galv | 18ga | 8211-2345-134500 | 8040402347 | |
| 23 | 30 | 1.5 | Galv | 18ga | 8211-2330-134500 | 8040402345 | |
| 24 | 90 | 1.5 | Galv | 18ga | 8211-2490-136000 | 8040402367 | |
| 24 | 60 | 1.5 | Galv | 18ga | 8211-2460-136000 | 8040402365 | |
| 24 | 45 | 1.5 | Galv | 18ga | 8211-2445-136000 | 8040402363 | |
| 24 | 30 | 1.5 | Galv | 18ga | 8211-2430-136000 | 8040402361 |
