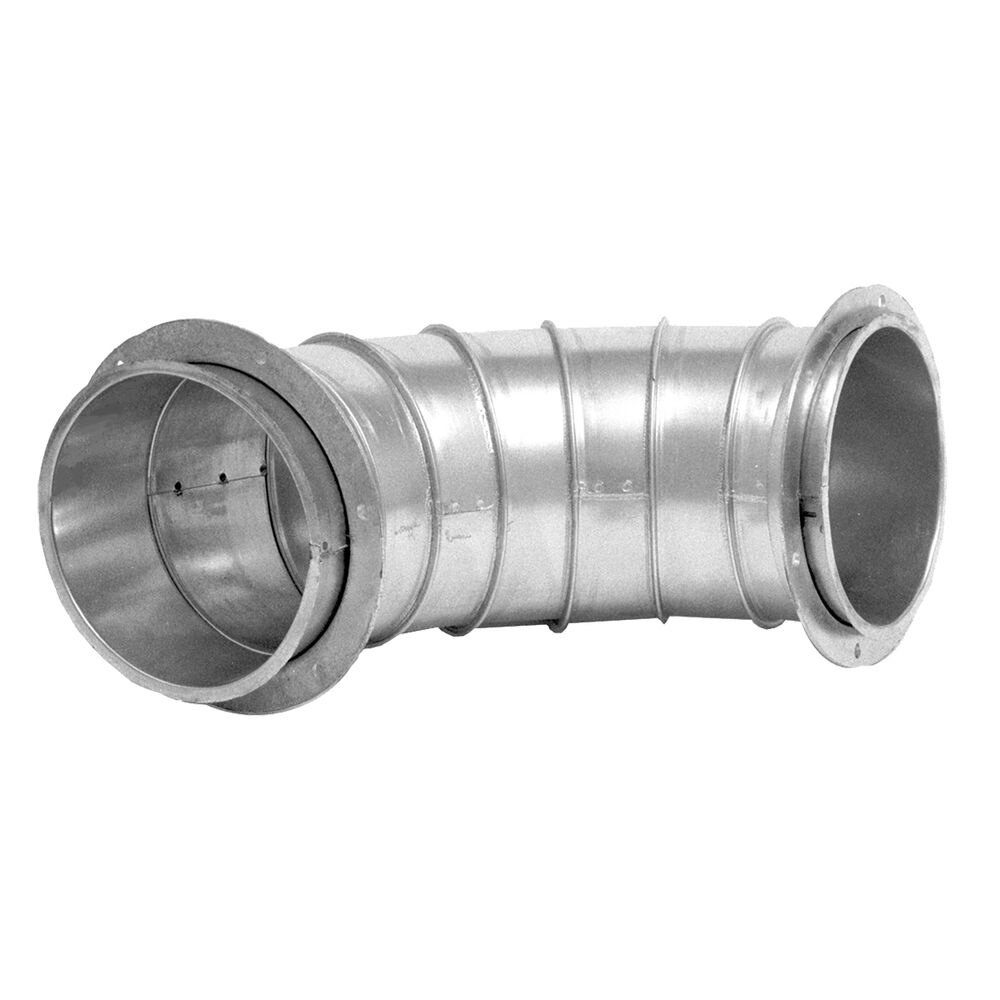

18 Gauge Long Radius Elbows (bends) allow airflow direction change in a line of dust collection ducting. 18 gauge galvanized steel elbows are standard with Angle Flange (ANGFL) ends. Angle Flanges are attached loosely and retained via a vanstone lip.
All Nordfab Elbows are available in 90°, 60°, 45°, and 30° bends.
18 gauge steel construction provides extra durability for high wear applications.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| ø A in | Angle degree | Center line radius | Material | T mm | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 8 | 90 | 2.5 | Galv | 18ga | 20 | 8211-0890-120000 | 8040402112 |
| 8 | 60 | 2.5 | Galv | 18ga | 15 | 8211-0860-120000 | 8040402110 |
| 8 | 45 | 2.5 | Galv | 18ga | 13 | 8211-0845-120000 | 8040402108 |
| 8 | 30 | 2.5 | Galv | 18ga | 11 | 8211-0830-120000 | 8040402106 |
| 9 | 90 | 2.5 | Galv | 18ga | 25 | 8211-0990-122500 | 8040402128 |
| 9 | 60 | 2.5 | Galv | 18ga | 19 | 8211-0960-122500 | 8040402126 |
| 9 | 45 | 2.5 | Galv | 18ga | 16 | 8211-0945-122500 | 8040402124 |
| 9 | 30 | 2.5 | Galv | 18ga | 13 | 8211-0930-122500 | 8040402122 |
| 10 | 90 | 2.5 | Galv | 18ga | 31 | 8211-1090-125000 | 8040402144 |
| 10 | 60 | 2.5 | Galv | 18ga | 23 | 8211-1060-125000 | 8040402142 |
| 10 | 45 | 2.5 | Galv | 18ga | 20 | 8211-1045-125000 | 8040402140 |
| 10 | 30 | 2.5 | Galv | 18ga | 16 | 8211-1030-125000 | 8040402138 |
| 11 | 90 | 2.5 | Galv | 18ga | 36 | 8211-1190-127500 | 8040402160 |
| 11 | 60 | 2.5 | Galv | 18ga | 27 | 8211-1160-127500 | 8040402158 |
| 11 | 45 | 2.5 | Galv | 18ga | 22 | 8211-1145-127500 | 8040402156 |
| 11 | 30 | 2.5 | Galv | 18ga | 18 | 8211-1130-127500 | 8040402154 |
| 12 | 90 | 2.5 | Galv | 18ga | 42 | 8211-1290-130000 | 8040402176 |
| 12 | 60 | 2.5 | Galv | 18ga | 32 | 8211-1260-130000 | 8040402174 |
| 12 | 45 | 2.5 | Galv | 18ga | 26 | 8211-1245-130000 | 8040402172 |
| 12 | 30 | 2.5 | Galv | 18ga | 21 | 8211-1230-130000 | 8040402170 |
| 13 | 90 | 2.5 | Galv | 18ga | 49 | 8211-1390-132500 | 8040402192 |
| 13 | 60 | 2.5 | Galv | 18ga | 36 | 8211-1360-132500 | 8040402190 |
| 13 | 45 | 2.5 | Galv | 18ga | 30 | 8211-1345-132500 | 8040402188 |
| 13 | 30 | 2.5 | Galv | 18ga | 24 | 8211-1330-132500 | 8040402186 |
| 14 | 90 | 2.5 | Galv | 18ga | 56 | 8211-1490-135000 | 8040402208 |
| 14 | 60 | 2.5 | Galv | 18ga | 42 | 8211-1460-135000 | 8040402206 |
| 14 | 45 | 2.5 | Galv | 18ga | 34 | 8211-1445-135000 | 8040402204 |
| 14 | 30 | 2.5 | Galv | 18ga | 27 | 8211-1430-135000 | 8040402202 |
| 15 | 90 | 2.5 | Galv | 18ga | 68 | 8211-1590-137500 | 8040402224 |
| 15 | 60 | 2.5 | Galv | 18ga | 51 | 8211-1560-137500 | 8040402222 |
| 15 | 45 | 2.5 | Galv | 18ga | 43 | 8211-1545-137500 | 8040402220 |
| 15 | 30 | 2.5 | Galv | 18ga | 34 | 8211-1530-137500 | 8040402218 |
| 16 | 90 | 2.5 | Galv | 18ga | 76 | 8211-1690-140000 | 8040402240 |
| 16 | 60 | 2.5 | Galv | 18ga | 57 | 8211-1660-140000 | 8040402238 |
| 16 | 45 | 2.5 | Galv | 18ga | 48 | 8211-1645-140000 | 8040402236 |
| 16 | 30 | 2.5 | Galv | 18ga | 38 | 8211-1630-140000 | 8040402234 |
| 17 | 90 | 2.5 | Galv | 18ga | 84 | 8211-1790-142500 | 8040402256 |
| 17 | 60 | 2.5 | Galv | 18ga | 63 | 8211-1760-142500 | 8040402254 |
| 17 | 45 | 2.5 | Galv | 18ga | 52 | 8211-1745-142500 | 8040402252 |
| 17 | 30 | 2.5 | Galv | 18ga | 42 | 8211-1730-142500 | 8040402250 |
| 18 | 90 | 2.5 | Galv | 18ga | 93 | 8211-1890-145000 | 8040402272 |
| 18 | 60 | 2.5 | Galv | 18ga | 69 | 8211-1860-145000 | 8040402270 |
| 18 | 45 | 2.5 | Galv | 18ga | 57 | 8211-1845-145000 | 8040402268 |
| 18 | 30 | 2.5 | Galv | 18ga | 45 | 8211-1830-145000 | 8040402266 |
| 19 | 90 | 2.5 | Galv | 18ga | 102 | 8211-1990-147500 | 8040402288 |
| 19 | 60 | 2.5 | Galv | 18ga | 75 | 8211-1960-147500 | 8040402286 |
| 19 | 45 | 2.5 | Galv | 18ga | 62 | 8211-1945-147500 | 8040402284 |
| 19 | 30 | 2.5 | Galv | 18ga | 48 | 8211-1930-147500 | 8040402282 |
| 20 | 90 | 2.5 | Galv | 18ga | 112 | 8211-2090-150000 | 8040402304 |
| 20 | 90 | 2.5 | Galv | 18ga | 8211-2090-150000 | 8040402304 | |
| 20 | 60 | 2.5 | Galv | 18ga | 8211-2060-150000 | 8040402302 | |
| 20 | 60 | 2.5 | Galv | 18ga | 82 | 8211-2060-150000 | 8040402302 |
| 20 | 45 | 2.5 | Galv | 18ga | 68 | 8211-2045-150000 | 8040402300 |
| 20 | 30 | 2.5 | Galv | 18ga | 53 | 8211-2030-150000 | 8040402298 |
| 20 | 30 | 2.5 | Galv | 18ga | 8211-2030-150000 | 8040402298 | |
| 21 | 90 | 2.5 | Galv | 18ga | 8211-2190-152500 | 8040402320 | |
| 21 | 90 | 2.5 | Galv | 18ga | 123 | 8211-2190-152500 | 8040402320 |
| 21 | 60 | 2.5 | Galv | 18ga | 8211-2160-152500 | 8040402318 | |
| 21 | 60 | 2.5 | Galv | 18ga | 90 | 8211-2160-152500 | 8040402318 |
| 21 | 45 | 2.5 | Galv | 18ga | 74 | 8211-2145-152500 | 8040402316 |
| 21 | 45 | 2.5 | Galv | 18ga | 8211-2145-152500 | 8040402316 | |
| 21 | 30 | 2.5 | Galv | 18ga | 8211-2130-152500 | 8040402314 | |
| 21 | 30 | 2.5 | Galv | 18ga | 58 | 8211-2130-152500 | 8040402314 |
| 22 | 90 | 2.5 | Galv | 18ga | 133 | 8211-2290-155000 | 8040402336 |
| 22 | 90 | 2.5 | Galv | 18ga | 8211-2290-155000 | 8040402336 | |
| 22 | 60 | 0 | Galv | 18ga | 8211-2260-155000 | 8040402334 | |
| 22 | 60 | Galv | 18ga | 98 | 8211-2260-155000 | 8040402334 | |
| 22 | 45 | 2.5 | Galv | 18ga | 8211-2245-155000 | 8040402332 | |
| 22 | 45 | 2.5 | Galv | 18ga | 80 | 8211-2245-155000 | 8040402332 |
| 22 | 30 | 2.5 | Galv | 18ga | 62 | 8211-2230-155000 | 8040402330 |
| 22 | 30 | 2.5 | Galv | 18ga | 8211-2230-155000 | 8040402330 | |
| 23 | 90 | 2.5 | Galv | 18ga | 145 | 8211-2390-157500 | 8040402352 |
| 23 | 60 | 2.5 | Galv | 18ga | 105 | 8211-2360-157500 | 8040402350 |
| 23 | 45 | 2.5 | Galv | 18ga | 86 | 8211-2345-157500 | 8040402348 |
| 23 | 30 | 2.5 | Galv | 18ga | 66 | 8211-2330-157500 | 8040402346 |
| 24 | 90 | 2.5 | Galv | 18ga | 156 | 8211-2490-160000 | 8040402368 |
| 24 | 60 | 2.5 | Galv | 18ga | 113 | 8211-2460-160000 | 8040402366 |
| 24 | 45 | 2.5 | Galv | 18ga | 92 | 8211-2445-160000 | 8040402364 |
| 24 | 30 | 2.5 | Galv | 18ga | 71 | 8211-2430-160000 | 8040402362 |
