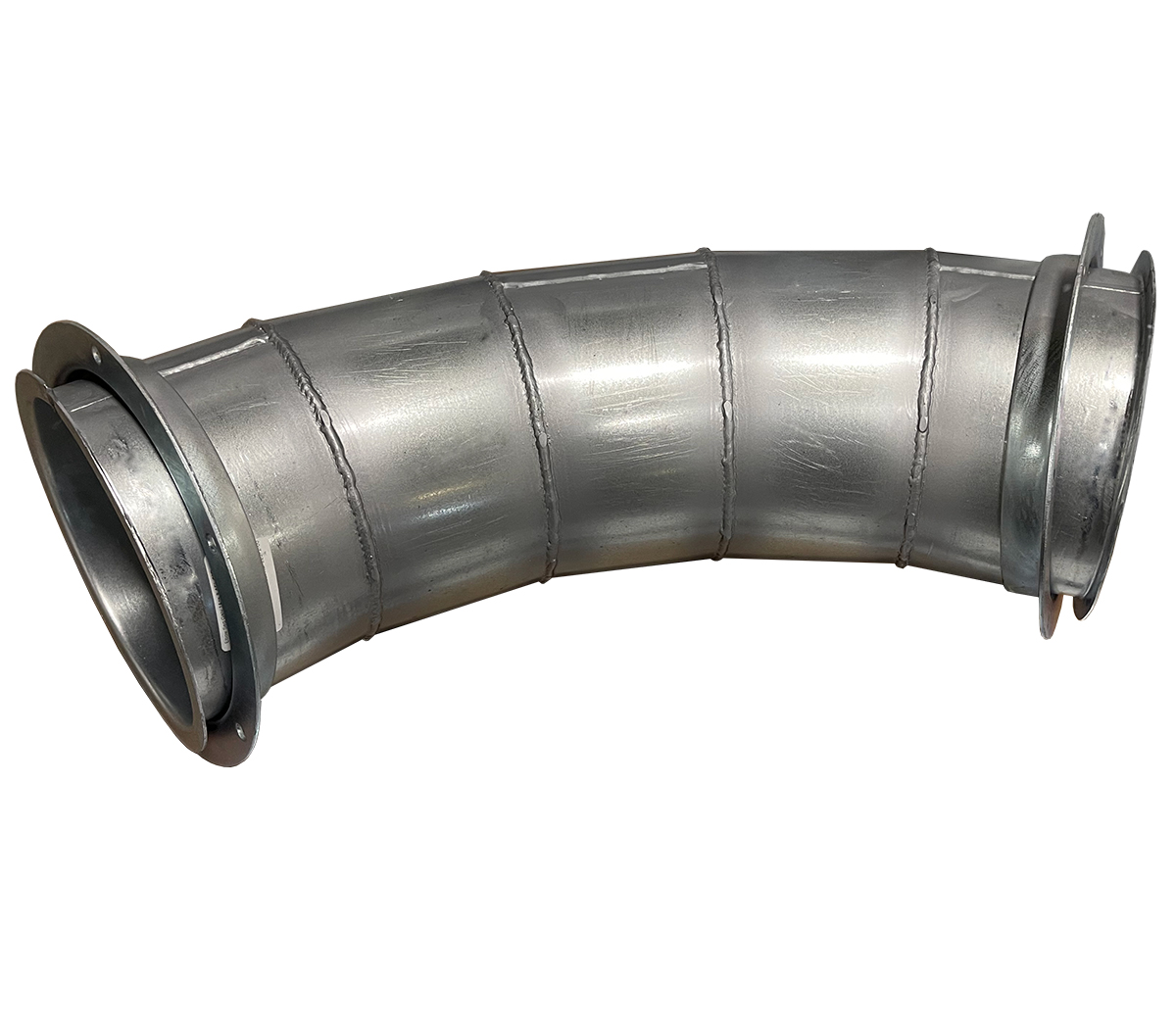

Les coudes à long rayon bridés (courbures) permettent de changer la direction du flux d’air dans des conduits de dépoussiérage.
Tous les coudes de calibre 10 sont fournis dans une construction solidement soudée, offrant une couture sans fuite. L'élimination des fuites d'air améliore l'efficacité du système de dépoussiérage, ce qui permet de réaliser des économies d'énergie. Une construction plus lourde réduit la fréquence et le coût de remplacement des coudes usés dans les applications fortement abrasives ou à forte usure.
Les brides sont montées de manière lâche et retenues par une lèvre Van Stone.
Les coudes Nordfab standard, également appelés courbures, sont disponibles en tailles 90, 60, 45, et 30 °F. Les coudes dans les tailles 10 à 72 po sont segmentés (plissés).
Contactez Nordfab ou votre revendeur Nordfab local pour obtenir de l’aide avec les tailles plus grandes et les matériaux/calibres en option.
| ø A (po) | Angle degree | Center line radius | Materiel | Calibre | Poids en livres | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 12 | 90 | 2.5 | Galv | 10ga | 100 | 0211-1290-130000 | 8040401540 |
| 12 | 60 | 2.5 | Galv | 10ga | 71 | 0211-1260-130000 | 8040401539 |
| 12 | 45 | 2.5 | Galv | 10ga | 57 | 0211-1245-130000 | 8040401538 |
| 12 | 30 | 2.5 | Galv | 10ga | 43 | 0211-1230-130000 | 8040401537 |
| 13 | 90 | 2.5 | Galv | 10ga | 116 | 0211-1390-132500 | 8040401544 |
| 13 | 60 | 2.5 | Galv | 10ga | 83 | 0211-1360-132500 | 8040401543 |
| 13 | 45 | 2.5 | Galv | 10ga | 66 | 0211-1345-132500 | 8040401542 |
| 13 | 30 | 2.5 | Galv | 10ga | 49 | 0211-1330-132500 | 8040401541 |
| 14 | 90 | 2.5 | Galv | 10ga | 134 | 0211-1490-135000 | 8040401548 |
| 14 | 60 | 2.5 | Galv | 10ga | 95 | 0211-1460-135000 | 8040401547 |
| 14 | 45 | 2.5 | Galv | 10ga | 75 | 0211-1445-135000 | 8040401546 |
| 14 | 30 | 2.5 | Galv | 10ga | 56 | 0211-1430-135000 | 8040401545 |
| 15 | 90 | 2.5 | Galv | 10ga | 156 | 0211-1590-137500 | 8040401552 |
| 15 | 60 | 2.5 | Galv | 10ga | 112 | 0211-1560-137500 | 8040401551 |
| 15 | 45 | 2.5 | Galv | 10ga | 89 | 0211-1545-137500 | 8040401550 |
| 16 | 90 | 2.5 | Galv | 10ga | 177 | 0211-1690-140000 | 8040401556 |
| 16 | 60 | 2.5 | Galv | 10ga | 126 | 0211-1660-140000 | 8040401555 |
| 16 | 45 | 2.5 | Galv | 10ga | 101 | 0211-1645-140000 | 8040401554 |
| 16 | 30 | 2.5 | Galv | 10ga | 67 | 0211-1530-137500 | 8040401549 |
| 16 | 30 | 2.5 | Galv | 10ga | 75 | 0211-1630-140000 | 8040401553 |
| 17 | 90 | 2.5 | Galv | 10ga | 197 | 0211-1790-142500 | 8040401560 |
| 17 | 60 | 2.5 | Galv | 10ga | 140 | 0211-1760-142500 | 8040401559 |
| 17 | 45 | 2.5 | Galv | 10ga | 111 | 0211-1745-142500 | 8040401558 |
| 17 | 30 | 2.5 | Galv | 10ga | 83 | 0211-1730-142500 | 8040401557 |
| 18 | 90 | 2.5 | Galv | 10ga | 219 | 0211-1890-145000 | 8040401564 |
| 18 | 60 | 2.5 | Galv | 10ga | 155 | 0211-1860-145000 | 8040401563 |
| 18 | 45 | 2.5 | Galv | 10ga | 123 | 0211-1845-145000 | 8040401562 |
| 18 | 30 | 2.5 | Galv | 10ga | 91 | 0211-1830-145000 | 8040401561 |
| 19 | 90 | 2.5 | Galv | 10ga | 242 | 0211-1990-147500 | 8040401568 |
| 19 | 60 | 2.5 | Galv | 10ga | 171 | 0211-1960-147500 | 8040401567 |
| 19 | 45 | 2.5 | Galv | 10ga | 135 | 0211-1945-147500 | 8040401566 |
| 19 | 30 | 2.5 | Galv | 10ga | 99 | 0211-1930-147500 | 8040401565 |
| 20 | 90 | 2.5 | Galv | 10ga | 267 | 0211-2090-150000 | 8040401572 |
| 20 | 60 | 2.5 | Galv | 10ga | 188 | 0211-2060-150000 | 8040401571 |
| 20 | 45 | 2.5 | Galv | 10ga | 148 | 0211-2045-150000 | 8040401570 |
| 20 | 30 | 2.5 | Galv | 10ga | 109 | 0211-2030-150000 | 8040401569 |
| 21 | 90 | 2.5 | Galv | 10ga | 294 | 0211-2190-152500 | 8040401576 |
| 21 | 60 | 2.5 | Galv | 10ga | 206 | 0211-2160-152500 | 8040401575 |
| 21 | 45 | 2.5 | Galv | 10ga | 163 | 0211-2145-152500 | 8040401574 |
| 21 | 30 | 2.5 | Galv | 10ga | 119 | 0211-2130-152500 | 8040401573 |
| 22 | 90 | 2.5 | Galv | 10ga | 321 | 0211-2290-155000 | 8040401580 |
| 22 | 60 | 2.5 | Galv | 10ga | 225 | 0211-2260-155000 | 8040401579 |
| 22 | 45 | 2.5 | Galv | 10ga | 177 | 0211-2245-155000 | 8040401578 |
| 22 | 30 | 2.5 | Galv | 10ga | 129 | 0211-2230-155000 | 8040401577 |
| 23 | 90 | 2.5 | Galv | 10ga | 349 | 0211-2390-157500 | 8040401584 |
| 23 | 60 | 2.5 | Galv | 10ga | 244 | 0211-2360-157500 | 8040401583 |
| 23 | 45 | 2.5 | Galv | 10ga | 192 | 0211-2345-157500 | 8040401582 |
| 23 | 30 | 2.5 | Galv | 10ga | 139 | 0211-2330-157500 | 8040401581 |
| 24 | 90 | 2.5 | Galv | 10ga | 378 | 0211-2490-160000 | 8040401588 |
| 24 | 60 | 2.5 | Galv | 10ga | 264 | 0211-2460-160000 | 8040401587 |
| 24 | 45 | 2.5 | Galv | 10ga | 207 | 0211-2445-160000 | 8040401586 |
| 24 | 30 | 2.5 | Galv | 10ga | 150 | 0211-2430-160000 | 8040401585 |
| 26 | 90 | 2.5 | Galv | 10ga | 449 | 0211-2690-165000 | 8040401592 |
| 26 | 60 | 2.5 | Galv | 10ga | 315 | 0211-2660-165000 | 8040401591 |
| 26 | 45 | 2.5 | Galv | 10ga | 248 | 0211-2645-165000 | 8040401590 |
| 26 | 30 | 2.5 | Galv | 10ga | 181 | 0211-2630-165000 | 8040401589 |
| 28 | 90 | 2.5 | Galv | 10ga | 517 | 0211-2890-170000 | 8040401596 |
| 28 | 60 | 2.5 | Galv | 10ga | 361 | 0211-2860-170000 | 8040401595 |
| 28 | 45 | 2.5 | Galv | 10ga | 284 | 0211-2845-170000 | 8040401594 |
| 28 | 30 | 2.5 | Galv | 10ga | 206 | 0211-2830-170000 | 8040401593 |
| 30 | 90 | 2.5 | Galv | 10ga | 590 | 0211-3090-175000 | 8040401600 |
| 30 | 60 | 2.5 | Galv | 10ga | 411 | 0211-3060-175000 | 8040401599 |
| 30 | 45 | 2.5 | Galv | 10ga | 322 | 0211-3045-175000 | 8040401598 |
| 30 | 30 | 2.5 | Galv | 10ga | 233 | 0211-3030-175000 | 8040401597 |
| 32 | 90 | 2.5 | Galv | 10ga | 667 | 0211-3290-180000 | 8040401604 |
| 32 | 60 | 2.5 | Galv | 10ga | 464 | 0211-3260-180000 | 8040401603 |
| 32 | 45 | 2.5 | Galv | 10ga | 362 | 0211-3245-180000 | 8040401602 |
| 32 | 30 | 2.5 | Galv | 10ga | 261 | 0211-3230-180000 | 8040401601 |
| 34 | 90 | 2.5 | Galv | 10ga | 749 | 0211-3490-185000 | 8040401608 |
| 34 | 60 | 2.5 | Galv | 10ga | 520 | 0211-3460-185000 | 8040401607 |
| 34 | 45 | 2.5 | Galv | 10ga | 405 | 0211-3445-185000 | 8040401606 |
| 34 | 30 | 2.5 | Galv | 10ga | 291 | 0211-3430-185000 | 8040401605 |
| 36 | 90 | 2.5 | Galv | 10ga | 835 | 0211-3690-190000 | 8040401612 |
| 36 | 60 | 2.5 | Galv | 10ga | 578 | 0211-3660-190000 | 8040401611 |
| 36 | 45 | 2.5 | Galv | 10ga | 450 | 0211-3645-190000 | 8040401610 |
| 36 | 30 | 2.5 | Galv | 10ga | 321 | 0211-3630-190000 | 8040401609 |
| 38 | 90 | 2.5 | Galv | 10ga | 927 | 0211-3890-195000 | 8040401616 |
| 38 | 60 | 2.5 | Galv | 10ga | 641 | 0211-3860-195000 | 8040401615 |
| 38 | 45 | 2.5 | Galv | 10ga | 498 | 0211-3845-195000 | 8040401614 |
| 38 | 30 | 2.5 | Galv | 10ga | 355 | 0211-3830-195000 | 8040401613 |
| 40 | 90 | 2.5 | Galv | 10ga | 1023 | 0211-4090-110000 | 8040401620 |
| 40 | 60 | 2.5 | Galv | 10ga | 706 | 0211-4060-110000 | 8040401619 |
| 40 | 45 | 2.5 | Galv | 10ga | 548 | 0211-4045-110000 | 8040401618 |
| 40 | 30 | 2.5 | Galv | 10ga | 389 | 0211-4030-110000 | 8040401617 |
| 42 | 90 | 2.5 | Galv | 10ga | 1123 | 0211-4290-110500 | 8040401624 |
| 42 | 60 | 2.5 | Galv | 10ga | 774 | 0211-4260-110500 | 8040401623 |
| 42 | 45 | 2.5 | Galv | 10ga | 599 | 0211-4245-110500 | 8040401622 |
| 42 | 30 | 2.5 | Galv | 10ga | 424 | 0211-4230-110500 | 8040401621 |
| 44 | 90 | 2.5 | Galv | 10ga | 1229 | 0211-4490-111000 | 8040401628 |
| 44 | 60 | 2.5 | Galv | 10ga | 846 | 0211-4460-111000 | 8040401627 |
| 44 | 45 | 2.5 | Galv | 10ga | 654 | 0211-4445-111000 | 8040401626 |
| 44 | 30 | 2.5 | Galv | 10ga | 462 | 0211-4430-111000 | 8040401625 |
| 46 | 90 | 2.5 | Galv | 10ga | 1339 | 0211-4690-111500 | 8040401632 |
| 46 | 60 | 2.5 | Galv | 10ga | 920 | 0211-4660-111500 | 8040401631 |
| 46 | 45 | 2.5 | Galv | 10ga | 711 | 0211-4645-111500 | 8040401630 |
| 46 | 30 | 2.5 | Galv | 10ga | 501 | 0211-4630-111500 | 8040401629 |
| 48 | 90 | 2.5 | Galv | 10ga | 1456 | 0211-4890-112000 | 8040401636 |
| 48 | 60 | 2.5 | Galv | 10ga | 999 | 0211-4860-112000 | 8040401635 |
| 48 | 45 | 2.5 | Galv | 10ga | 771 | 0211-4845-112000 | 8040401634 |
| 48 | 30 | 2.5 | Galv | 10ga | 543 | 0211-4830-112000 | 8040401633 |
| 50 | 90 | 2.5 | Galv | 10ga | 1578 | 0211-5090-112500 | 8040401640 |
| 50 | 60 | 2.5 | Galv | 10ga | 1082 | 0211-5060-112500 | 8040401639 |
| 50 | 45 | 2.5 | Galv | 10ga | 835 | 0211-5045-112500 | 8040401638 |
| 50 | 30 | 2.5 | Galv | 10ga | 587 | 0211-5030-112500 | 8040401637 |
| 52 | 90 | 2.5 | Galv | 10ga | 1702 | 0211-5290-113000 | 8040401644 |
| 52 | 60 | 2.5 | Galv | 10ga | 1166 | 0211-5260-113000 | 8040401643 |
| 52 | 45 | 2.5 | Galv | 10ga | 898 | 0211-5245-113000 | 8040401642 |
| 52 | 30 | 2.5 | Galv | 10ga | 630 | 0211-5230-113000 | 8040401641 |
| 54 | 90 | 2.5 | Galv | 10ga | 1832 | 0211-5490-113500 | 8040401648 |
| 54 | 60 | 2.5 | Galv | 10ga | 1254 | 0211-5460-113500 | 8040401647 |
| 54 | 45 | 2.5 | Galv | 10ga | 965 | 0211-5445-113500 | 8040401646 |
| 54 | 30 | 2.5 | Galv | 10ga | 676 | 0211-5430-113500 | 8040401645 |
| 56 | 90 | 2.5 | Galv | 10ga | 1966 | 0211-5690-114000 | 8040401652 |
| 56 | 60 | 2.5 | Galv | 10ga | 1344 | 0211-5660-114000 | 8040401651 |
| 56 | 45 | 2.5 | Galv | 10ga | 1034 | 0211-5645-114000 | 8040401650 |
| 56 | 30 | 2.5 | Galv | 10ga | 723 | 0211-5630-114000 | 8040401649 |
| 58 | 90 | 2.5 | Galv | 10ga | 2105 | 0211-5890-114500 | 8040401656 |
| 58 | 60 | 2.5 | Galv | 10ga | 1439 | 0211-5860-114500 | 8040401655 |
| 58 | 45 | 2.5 | Galv | 10ga | 1105 | 0211-5845-114500 | 8040401654 |
| 58 | 30 | 2.5 | Galv | 10ga | 772 | 0211-5830-114500 | 8040401653 |
| 60 | 90 | 2.5 | Galv | 10ga | 2248 | 0211-6090-115000 | 8040401660 |
| 60 | 60 | 2.5 | Galv | 10ga | 1535 | 0211-6060-115000 | 8040401659 |
| 60 | 45 | 2.5 | Galv | 10ga | 1179 | 0211-6045-115000 | 8040401658 |
| 60 | 30 | 2.5 | Galv | 10ga | 822 | 0211-6030-115000 | 8040401657 |
| 62 | 90 | 2.5 | Galv | 10ga | 2396 | 0211-6290-115500 | 8040401664 |
| 62 | 60 | 2.5 | Galv | 10ga | 1635 | 0211-6260-115500 | 8040401663 |
| 62 | 45 | 2.5 | Galv | 10ga | 1254 | 0211-6245-115500 | 8040401662 |
| 62 | 30 | 2.5 | Galv | 10ga | 873 | 0211-6230-115500 | 8040401661 |
| 64 | 90 | 2.5 | Galv | 10ga | 2551 | 0211-6490-116000 | 8040401668 |
| 64 | 60 | 2.5 | Galv | 10ga | 1740 | 0211-6460-116000 | 8040401667 |
| 64 | 45 | 2.5 | Galv | 10ga | 1334 | 0211-6445-116000 | 8040401666 |
| 64 | 30 | 2.5 | Galv | 10ga | 928 | 0211-6430-116000 | 8040401665 |
| 66 | 90 | 2.5 | Galv | 10ga | 2709 | 0211-6690-116500 | 8040401672 |
| 66 | 60 | 2.5 | Galv | 10ga | 1846 | 0211-6660-116500 | 8040401671 |
| 66 | 45 | 2.5 | Galv | 10ga | 1414 | 0211-6645-116500 | 8040401670 |
| 66 | 30 | 2.5 | Galv | 10ga | 983 | 0211-6630-116500 | 8040401669 |
| 68 | 90 | 2.5 | Galv | 10ga | 2871 | 0211-6890-117000 | 8040401676 |
| 68 | 60 | 2.5 | Galv | 10ga | 1955 | 0211-6860-117000 | 8040401675 |
| 68 | 45 | 2.5 | Galv | 10ga | 1497 | 0211-6845-117000 | 8040401674 |
| 68 | 30 | 2.5 | Galv | 10ga | 1039 | 0211-6830-117000 | 8040401673 |
| 70 | 90 | 2.5 | Galv | 10ga | 3039 | 0211-7090-117500 | 8040401680 |
| 70 | 60 | 2.5 | Galv | 10ga | 2068 | 0211-7060-117500 | 8040401679 |
| 70 | 45 | 2.5 | Galv | 10ga | 1583 | 0211-7045-117500 | 8040401678 |
| 70 | 30 | 2.5 | Galv | 10ga | 1098 | 0211-7030-117500 | 8040401677 |
| 72 | 90 | 2.5 | Galv | 10ga | 3214 | 0211-7290-118000 | 8040401684 |
| 72 | 60 | 2.5 | Galv | 10ga | 2187 | 0211-7260-118000 | 8040401683 |
| 72 | 45 | 2.5 | Galv | 10ga | 1673 | 0211-7245-118000 | 8040401682 |
| 72 | 30 | 2.5 | Galv | 10ga | 1160 | 0211-7230-118000 | 8040401681 |
