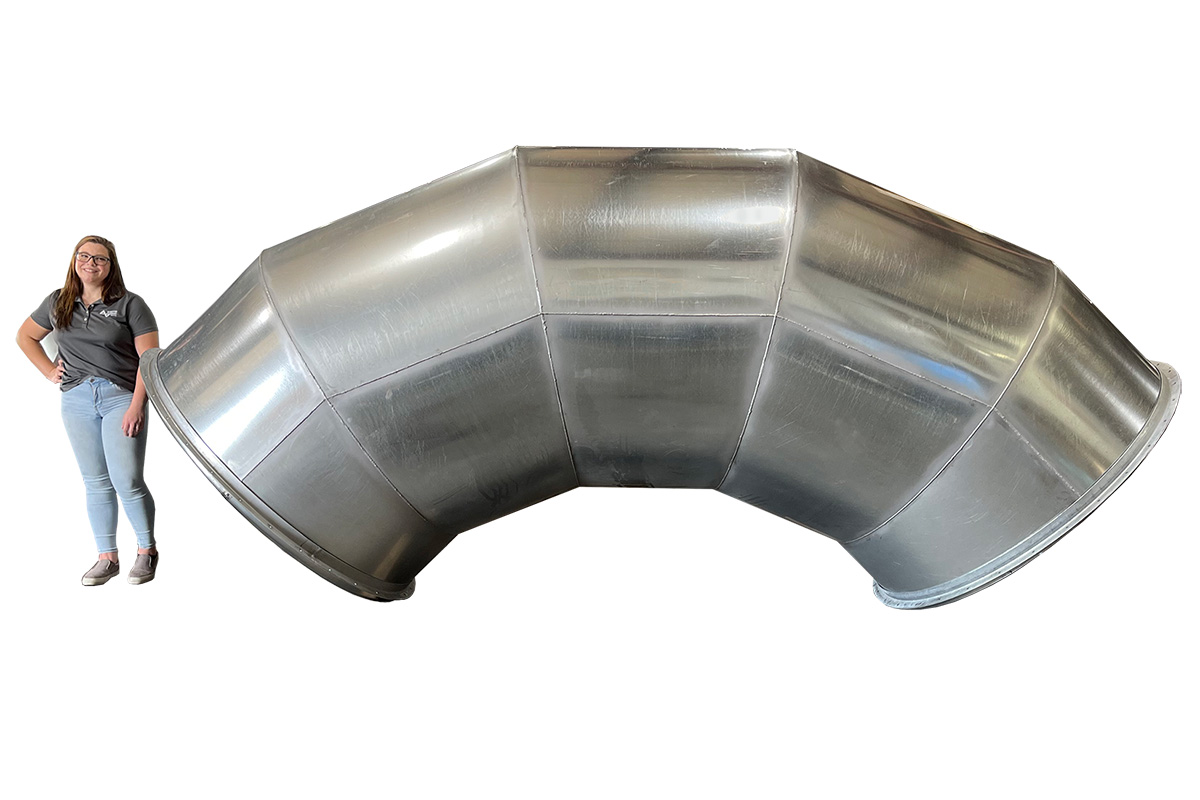

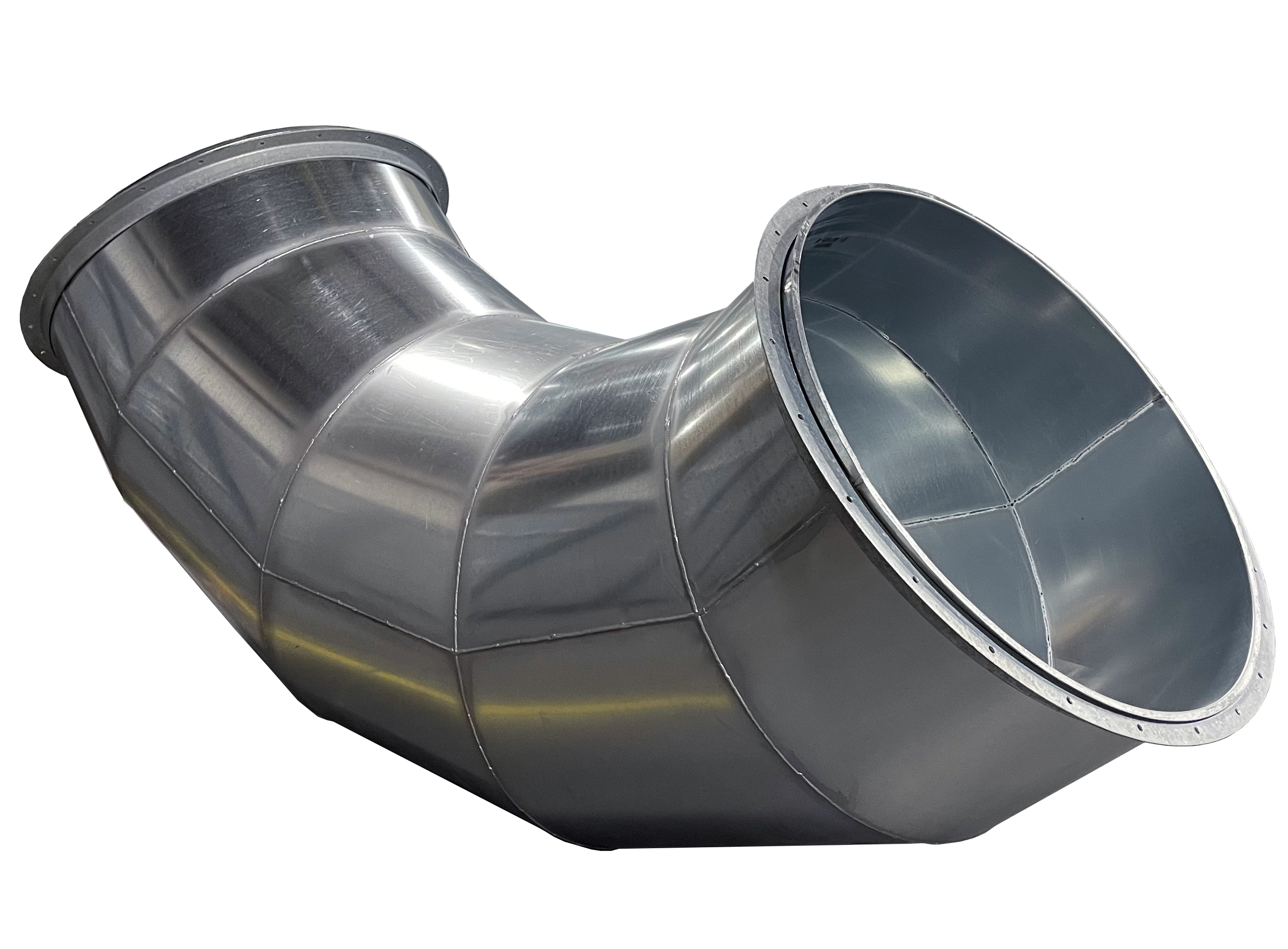

Les coudes bridés (courbures) permettent de changer la direction du flux d’air dans des conduits de dépoussiérage.
Tous les coudes de calibre 12 sont fournis dans une construction solidement soudée, offrant une couture sans fuite. L'élimination des fuites d'air améliore l'efficacité du système de dépoussiérage, ce qui permet de réaliser des économies d'énergie. Une construction plus lourde réduit la fréquence et le coût de remplacement des coudes usés dans les applications fortement abrasives ou à forte usure.
Les brides sont montées de manière lâche et retenues par une lèvre Van Stone.
Les coudes Nordfab standard, également appelés courbures, sont disponibles en tailles 90, 60, 45, et 30 °F. Les coudes dans les tailles 10 à 72 po sont segmentés (plissés).
Contactez Nordfab ou votre revendeur Nordfab local pour obtenir de l’aide avec les tailles plus grandes et les matériaux/calibres en option.
| ø A (po) | Angle degree | Center line radius | Materiel | Calibre | Poids en livres | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 10 | 90 | 1.5 | Galv | 12ga | 2211-1090-115000 | 8040400548 | |
| 10 | 60 | 1.5 | Galv | 12ga | 2211-1060-115000 | 8040400547 | |
| 10 | 45 | 1.5 | Galv | 12ga | 2211-1045-115000 | 8040400546 | |
| 10 | 30 | 1.5 | Galv | 12ga | 2211-1030-115000 | 8040400545 | |
| 11 | 90 | 1.5 | Galv | 12ga | 2211-1190-116500 | 8040400552 | |
| 11 | 60 | 1.5 | Galv | 12ga | 2211-1160-116500 | 8040400551 | |
| 11 | 45 | 1.5 | Galv | 12ga | 2211-1145-116500 | 8040400550 | |
| 11 | 30 | 1.5 | Galv | 12ga | 2211-1130-116500 | 8040400549 | |
| 12 | 90 | 1.5 | Galv | 12ga | 2211-1290-118000 | 8040400556 | |
| 12 | 60 | 1.5 | Galv | 12ga | 2211-1260-118000 | 8040400555 | |
| 12 | 45 | 1.5 | Galv | 12ga | 2211-1245-118000 | 8040400554 | |
| 12 | 30 | 1.5 | Galv | 12ga | 2211-1230-118000 | 8040400553 | |
| 13 | 90 | 1.5 | Galv | 12ga | 2211-1390-119500 | 8040400560 | |
| 13 | 60 | 1.5 | Galv | 12ga | 2211-1360-119500 | 8040400559 | |
| 13 | 45 | 1.5 | Galv | 12ga | 2211-1345-119500 | 8040400558 | |
| 13 | 30 | 1.5 | Galv | 12ga | 2211-1330-119500 | 8040400557 | |
| 14 | 90 | 1.5 | Galv | 12ga | 2211-1490-121000 | 8040400564 | |
| 14 | 60 | 1.5 | Galv | 12ga | 2211-1460-121000 | 8040400563 | |
| 14 | 45 | 1.5 | Galv | 12ga | 2211-1445-121000 | 8040400562 | |
| 14 | 30 | 1.5 | Galv | 12ga | 2211-1430-121000 | 8040400561 | |
| 15 | 90 | 1.5 | Galv | 12ga | 2211-1590-122500 | 8040400568 | |
| 15 | 60 | 1.5 | Galv | 12ga | 2211-1560-122500 | 8040400567 | |
| 15 | 45 | 1.5 | Galv | 12ga | 2211-1545-122500 | 8040400566 | |
| 15 | 30 | 1.5 | Galv | 12ga | 2211-1530-122500 | 8040400565 | |
| 16 | 90 | 1.5 | Galv | 12ga | 2211-1690-124000 | 8040400572 | |
| 16 | 60 | 1.5 | Galv | 12ga | 2211-1660-124000 | 8040400571 | |
| 16 | 45 | 1.5 | Galv | 12ga | 2211-1645-124000 | 8040400570 | |
| 16 | 30 | 1.5 | Galv | 12ga | 2211-1630-124000 | 8040400569 | |
| 17 | 90 | 1.5 | Galv | 12ga | 2211-1790-125500 | 8040400576 | |
| 17 | 60 | 1.5 | Galv | 12ga | 2211-1760-125500 | 8040400575 | |
| 17 | 45 | 1.5 | Galv | 12ga | 2211-1745-125500 | 8040400574 | |
| 17 | 30 | 1.5 | Galv | 12ga | 2211-1730-125500 | 8040400573 | |
| 18 | 90 | 1.5 | Galv | 12ga | 2211-1890-127000 | 8040400580 | |
| 18 | 60 | 1.5 | Galv | 12ga | 2211-1860-127000 | 8040400579 | |
| 18 | 45 | 1.5 | Galv | 12ga | 2211-1845-127000 | 8040400578 | |
| 18 | 30 | 1.5 | Galv | 12ga | 2211-1830-127000 | 8040400577 | |
| 19 | 90 | 1.5 | Galv | 12ga | 2211-1990-128500 | 8040400584 | |
| 19 | 60 | 1.5 | Galv | 12ga | 2211-1960-128500 | 8040400583 | |
| 19 | 45 | 1.5 | Galv | 12ga | 2211-1945-128500 | 8040400582 | |
| 19 | 30 | 1.5 | Galv | 12ga | 2211-1930-128500 | 8040400581 | |
| 20 | 90 | 1.5 | Galv | 12ga | 2211-2090-130000 | 8040400588 | |
| 20 | 60 | 1.5 | Galv | 12ga | 2211-2060-130000 | 8040400587 | |
| 20 | 45 | 1.5 | Galv | 12ga | 2211-2045-130000 | 8040400586 | |
| 20 | 30 | 1.5 | Galv | 12ga | 2211-2030-130000 | 8040400585 | |
| 21 | 90 | 1.5 | Galv | 12ga | 2211-2190-131500 | 8040400592 | |
| 21 | 60 | 1.5 | Galv | 12ga | 2211-2160-131500 | 8040400591 | |
| 21 | 45 | 1.5 | Galv | 12ga | 2211-2145-131500 | 8040400590 | |
| 21 | 30 | 1.5 | Galv | 12ga | 2211-2130-131500 | 8040400589 | |
| 22 | 90 | 1.5 | Galv | 12ga | 2211-2290-133000 | 8040400596 | |
| 22 | 60 | 1.5 | Galv | 12ga | 2211-2260-133000 | 8040400595 | |
| 22 | 45 | 1.5 | Galv | 12ga | 2211-2245-133000 | 8040400594 | |
| 22 | 30 | 1.5 | Galv | 12ga | 2211-2230-133000 | 8040400593 | |
| 23 | 90 | 1.5 | Galv | 12ga | 2211-2390-134500 | 8040400600 | |
| 23 | 60 | 1.5 | Galv | 12ga | 2211-2360-134500 | 8040400599 | |
| 23 | 45 | 1.5 | Galv | 12ga | 2211-2345-134500 | 8040400598 | |
| 23 | 30 | 1.5 | Galv | 12ga | 2211-2330-134500 | 8040400597 | |
| 24 | 90 | 1.5 | Galv | 12ga | 2211-2490-136000 | 8040400604 | |
| 24 | 60 | 1.5 | Galv | 12ga | 2211-2460-136000 | 8040400603 | |
| 24 | 45 | 1.5 | Galv | 12ga | 2211-2445-136000 | 8040400602 | |
| 24 | 30 | 1.5 | Galv | 12ga | 2211-2430-136000 | 8040400601 | |
| 26 | 90 | 1.5 | Galv | 12ga | 2211-2690-139000 | 8040400608 | |
| 26 | 60 | 1.5 | Galv | 12ga | 2211-2660-139000 | 8040400607 | |
| 26 | 45 | 1.5 | Galv | 12ga | 2211-2645-139000 | 8040400606 | |
| 26 | 30 | 1.5 | Galv | 12ga | 2211-2630-139000 | 8040400605 | |
| 28 | 90 | 1.5 | Galv | 12ga | 2211-2890-142000 | 8040400612 | |
| 28 | 60 | 1.5 | Galv | 12ga | 2211-2860-142000 | 8040400611 | |
| 28 | 45 | 1.5 | Galv | 12ga | 2211-2845-142000 | 8040400610 | |
| 28 | 30 | 1.5 | Galv | 12ga | 2211-2830-142000 | 8040400609 | |
| 30 | 90 | 1.5 | Galv | 12ga | 2211-3090-145000 | 8040400616 | |
| 30 | 60 | 1.5 | Galv | 12ga | 2211-3060-145000 | 8040400615 | |
| 30 | 45 | 1.5 | Galv | 12ga | 2211-3045-145000 | 8040400614 | |
| 30 | 30 | 1.5 | Galv | 12ga | 2211-3030-145000 | 8040400613 | |
| 32 | 90 | 1.5 | Galv | 12ga | 2211-3290-148000 | 8040400620 | |
| 32 | 60 | 1.5 | Galv | 12ga | 2211-3260-148000 | 8040400619 | |
| 32 | 45 | 1.5 | Galv | 12ga | 2211-3245-148000 | 8040400618 | |
| 32 | 30 | 1.5 | Galv | 12ga | 2211-3230-148000 | 8040400617 | |
| 34 | 90 | 1.5 | Galv | 12ga | 2211-3490-151000 | 8040400624 | |
| 34 | 60 | 1.5 | Galv | 12ga | 2211-3460-151000 | 8040400623 | |
| 34 | 45 | 1.5 | Galv | 12ga | 2211-3445-151000 | 8040400622 | |
| 34 | 30 | 1.5 | Galv | 12ga | 2211-3430-151000 | 8040400621 | |
| 36 | 90 | 1.5 | Galv | 12ga | 2211-3690-154000 | 8040400628 | |
| 36 | 60 | 1.5 | Galv | 12ga | 2211-3660-154000 | 8040400627 | |
| 36 | 45 | 1.5 | Galv | 12ga | 2211-3645-154000 | 8040400626 | |
| 36 | 30 | 1.5 | Galv | 12ga | 2211-3630-154000 | 8040400625 | |
| 38 | 90 | 1.5 | Galv | 12ga | 2211-3890-157000 | 8040400632 | |
| 38 | 60 | 1.5 | Galv | 12ga | 2211-3860-157000 | 8040400631 | |
| 38 | 45 | 1.5 | Galv | 12ga | 2211-3845-157000 | 8040400630 | |
| 38 | 30 | 1.5 | Galv | 12ga | 2211-3830-157000 | 8040400629 | |
| 40 | 90 | 1.5 | Galv | 12ga | 2211-4090-160000 | 8040400636 | |
| 40 | 60 | 1.5 | Galv | 12ga | 2211-4060-160000 | 8040400635 | |
| 40 | 45 | 1.5 | Galv | 12ga | 2211-4045-160000 | 8040400634 | |
| 40 | 30 | 1.5 | Galv | 12ga | 2211-4030-160000 | 8040400633 | |
| 42 | 90 | 1.5 | Galv | 12ga | 2211-4290-163000 | 8040400640 | |
| 42 | 60 | 1.5 | Galv | 12ga | 2211-4260-163000 | 8040400639 | |
| 42 | 45 | 1.5 | Galv | 12ga | 2211-4245-163000 | 8040400638 | |
| 42 | 30 | 1.5 | Galv | 12ga | 2211-4230-163000 | 8040400637 | |
| 44 | 90 | 1.5 | Galv | 12ga | 2211-4490-166000 | 8040400644 | |
| 44 | 60 | 1.5 | Galv | 12ga | 2211-4460-166000 | 8040400643 | |
| 44 | 45 | 1.5 | Galv | 12ga | 2211-4445-166000 | 8040400642 | |
| 44 | 30 | 1.5 | Galv | 12ga | 2211-4430-166000 | 8040400641 | |
| 46 | 90 | 1.5 | Galv | 12ga | 2211-4690-169000 | 8040400648 | |
| 46 | 60 | 1.5 | Galv | 12ga | 2211-4660-169000 | 8040400647 | |
| 46 | 45 | 1.5 | Galv | 12ga | 2211-4645-169000 | 8040400646 | |
| 46 | 30 | 1.5 | Galv | 12ga | 2211-4630-169000 | 8040400645 | |
| 48 | 90 | 1.5 | Galv | 12ga | 2211-4890-172000 | 8040400652 | |
| 48 | 60 | 1.5 | Galv | 12ga | 2211-4860-172000 | 8040400651 | |
| 48 | 45 | 1.5 | Galv | 12ga | 2211-4845-172000 | 8040400650 | |
| 48 | 30 | 1.5 | Galv | 12ga | 2211-4830-172000 | 8040400649 | |
| 50 | 90 | 1.5 | Galv | 12ga | 2211-5090-175000 | 8040400656 | |
| 50 | 60 | 1.5 | Galv | 12ga | 2211-5060-175000 | 8040400655 | |
| 50 | 45 | 1.5 | Galv | 12ga | 2211-5045-175000 | 8040400654 | |
| 50 | 30 | 1.5 | Galv | 12ga | 2211-5030-175000 | 8040400653 | |
| 52 | 90 | 1.5 | Galv | 12ga | 2211-5290-178000 | 8040400660 | |
| 52 | 60 | 1.5 | Galv | 12ga | 2211-5260-178000 | 8040400659 | |
| 52 | 45 | 1.5 | Galv | 12ga | 2211-5245-178000 | 8040400658 | |
| 52 | 30 | 1.5 | Galv | 12ga | 2211-5230-178000 | 8040400657 | |
| 54 | 90 | 1.5 | Galv | 12ga | 2211-5490-181000 | 8040400664 | |
| 54 | 60 | 1.5 | Galv | 12ga | 2211-5460-181000 | 8040400663 | |
| 54 | 45 | 1.5 | Galv | 12ga | 2211-5445-181000 | 8040400662 | |
| 54 | 30 | 1.5 | Galv | 12ga | 2211-5430-181000 | 8040400661 | |
| 56 | 90 | 1.5 | Galv | 12ga | 2211-5690-184000 | 8040400668 | |
| 56 | 60 | 1.5 | Galv | 12ga | 2211-5660-184000 | 8040400667 | |
| 56 | 45 | 1.5 | Galv | 12ga | 2211-5645-184000 | 8040400666 | |
| 56 | 30 | 1.5 | Galv | 12ga | 2211-5630-184000 | 8040400665 | |
| 58 | 90 | 1.5 | Galv | 12ga | 2211-5890-187000 | 8040400672 | |
| 58 | 60 | 1.5 | Galv | 12ga | 2211-5860-187000 | 8040400671 | |
| 58 | 45 | 1.5 | Galv | 12ga | 2211-5845-187000 | 8040400670 | |
| 58 | 30 | 1.5 | Galv | 12ga | 2211-5830-187000 | 8040400669 | |
| 60 | 90 | 1.5 | Galv | 12ga | 2211-6090-190000 | 8040400676 | |
| 60 | 60 | 1.5 | Galv | 12ga | 2211-6060-190000 | 8040400675 | |
| 60 | 45 | 1.5 | Galv | 12ga | 2211-6045-190000 | 8040400674 | |
| 60 | 30 | 1.5 | Galv | 12ga | 2211-6030-190000 | 8040400673 | |
| 62 | 90 | 1.5 | Galv | 12ga | 2211-6290-193000 | 8040400680 | |
| 62 | 60 | 1.5 | Galv | 12ga | 2211-6260-193000 | 8040400679 | |
| 62 | 45 | 1.5 | Galv | 12ga | 2211-6245-193000 | 8040400678 | |
| 62 | 30 | 1.5 | Galv | 12ga | 2211-6230-193000 | 8040400677 | |
| 64 | 90 | 1.5 | Galv | 12ga | 2211-6490-196000 | 8040400684 | |
| 64 | 60 | 1.5 | Galv | 12ga | 2211-6460-196000 | 8040400683 | |
| 64 | 45 | 1.5 | Galv | 12ga | 2211-6445-196000 | 8040400682 | |
| 64 | 30 | 1.5 | Galv | 12ga | 2211-6430-196000 | 8040400681 | |
| 66 | 90 | 1.5 | Galv | 12ga | 2211-6690-199000 | 8040400688 | |
| 66 | 60 | 1.5 | Galv | 12ga | 2211-6660-199000 | 8040400687 | |
| 66 | 45 | 1.5 | Galv | 12ga | 2211-6645-199000 | 8040400686 | |
| 66 | 30 | 1.5 | Galv | 12ga | 2211-6630-199000 | 8040400685 | |
| 68 | 90 | 1.5 | Galv | 12ga | 2211-6890-110200 | 8040400692 | |
| 68 | 60 | 1.5 | Galv | 12ga | 2211-6860-110200 | 8040400691 | |
| 68 | 45 | 1.5 | Galv | 12ga | 2211-6845-110200 | 8040400690 | |
| 68 | 30 | 1.5 | Galv | 12ga | 2211-6830-110200 | 8040400689 | |
| 70 | 90 | 1.5 | Galv | 12ga | 2211-7090-110500 | 8040400696 | |
| 70 | 60 | 1.5 | Galv | 12ga | 2211-7060-110500 | 8040400695 | |
| 70 | 45 | 1.5 | Galv | 12ga | 2211-7045-110500 | 8040400694 | |
| 70 | 30 | 1.5 | Galv | 12ga | 2211-7030-110500 | 8040400693 | |
| 72 | 90 | 1.5 | Galv | 12ga | 2211-7290-110800 | 8040400700 | |
| 72 | 60 | 1.5 | Galv | 12ga | 2211-7260-110800 | 8040400699 | |
| 72 | 45 | 1.5 | Galv | 12ga | 2211-7245-110800 | 8040400698 | |
| 72 | 30 | 1.5 | Galv | 12ga | 2211-7230-110800 | 8040400697 |
