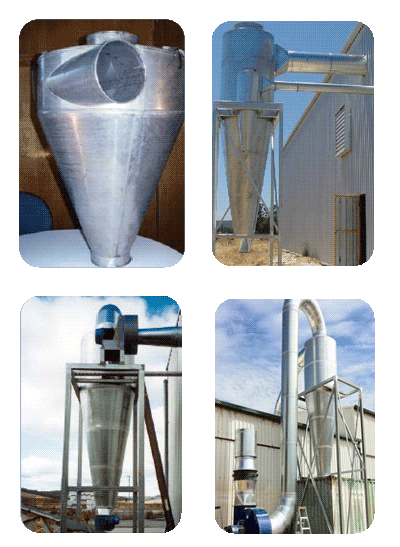

Nordfab manufactures a large range of cyclones. We have several designs to choose from, or they can be fabricated to customers’ requirements. Cyclones are manufactured from galvanized steel or in stainless or mild steel or as requested.
| Cyclone Type C.V | A mm | B mm | C mm | D mm | E mm | F m3/hr | G mm | H mm | I mm | J mm | K mm | S mm |
| CV400 | 285 | 125 | 250 | 400 | 200 | 1600 | 1100 | 1790 | 1020 | 710 | 400 | 2 |
| CV500 | 350 | 160 | 250 | 500 | 200 | 2500 | 1200 | 1790 | 1020 | 710 | 400 | 2 |
| CV700 | 445 | 200 | 400 | 700 | 300 | 5000 | 1400 | 2500 | 1405 | 995 | 419 | 2 |
| CV1000 | 560 | 300 | 550 | 1000 | 400 | 8000 | 1700 | 3725 | 2050 | 1500 | 615 | 2 |
| CV1300 | 750 | 400 | 700 | 1300 | 450 | 15000 | 2000 | 5090 | 2820 | 2000 | 780 | 3 |
| CV1600 | 1100 | 500 | 800 | 1600 | 550 | 25000 | 2300 | 5420 | 3150 | 2000 | 1050 | 3 |
| CV1800 | 1500 | 500 | 1000 | 1800 | 650 | 35000 | 2500 | 6250 | 3450 | 2500 | 1150 | 3 |
