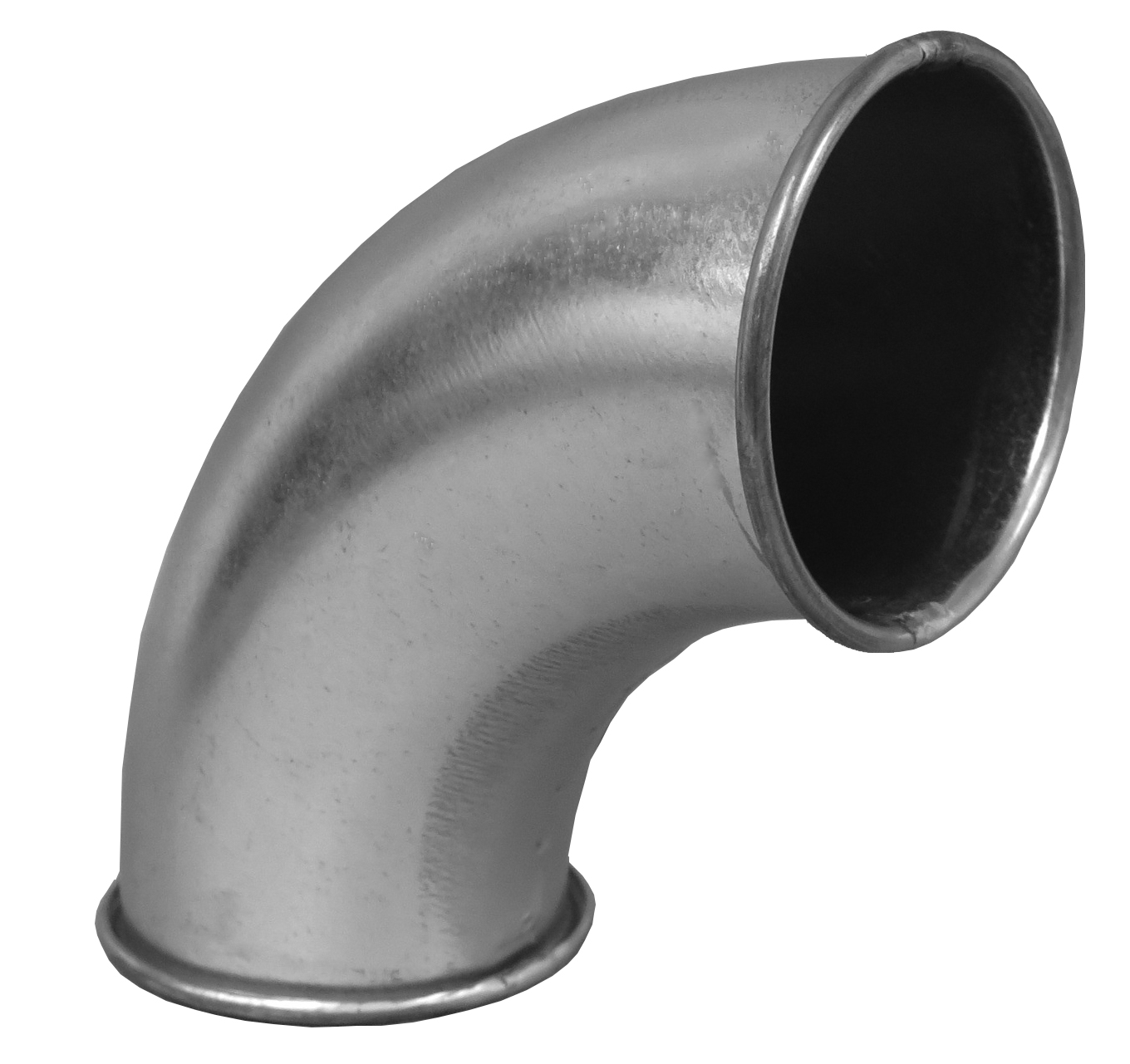

Nordfab's Quick-Fit (QF) bends allow airflow direction change in a run of a duct. Standard Quick-Fit (QF) Pressed Bends are available in 90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clamp-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clamp when installing, extending, or taking apart runs of duct.
Visit our Catalogues section to download our QF & QFS Ducting catalogue or product technical data sheets.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 80 | 90 | 1.5 | Galv | 0,9mm | 0,5 | 8210000178 |
| 100 | 90 | 1.5 | Galv | 0,9mm | 0,8 | 8210000183 |
| 125 | 90 | 1.5 | Galv | 0,9mm | 0,8 | 8210000188 |
| 140 | 90 | 1.5 | Galv | 0,9mm | 1,1 | 8210000193 |
| 150 | 90 | 1.5 | Galv | 0,9mm | 1,1 | 8210000198 |
| 160 | 90 | 1.5 | Galv | 0,9mm | 1,2 | 8210000203 |
| 180 | 90 | 1.5 | Galv | 0,9mm | 1,6 | 8210000208 |
| 200 | 90 | 1.5 | Galv | 0,9mm | 1,9 | 8210000213 |
| 224 | 90 | 1.5 | Galv | 0,9mm | 2,4 | 8210000218 |
| 250 | 90 | 1.5 | Galv | 0,9mm | 3 | 8210000223 |
| 300 | 90 | 1.5 | Galv | 0,9mm | 3,2 | 8210000228 |
| 315 | 90 | 1.5 | Galv | 0,9mm | 5 | 8210000233 |
