The world's fastest ducting

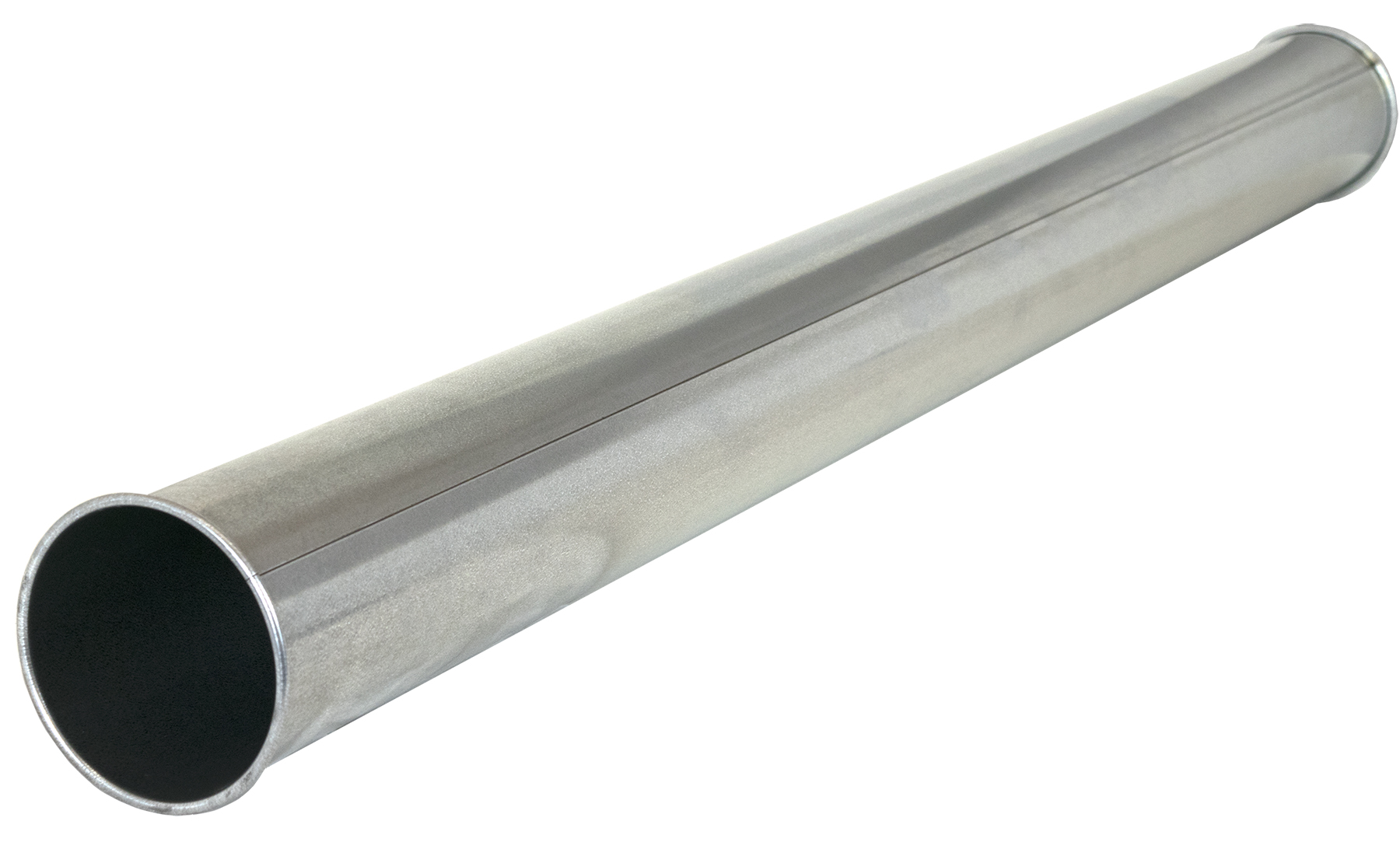

For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.

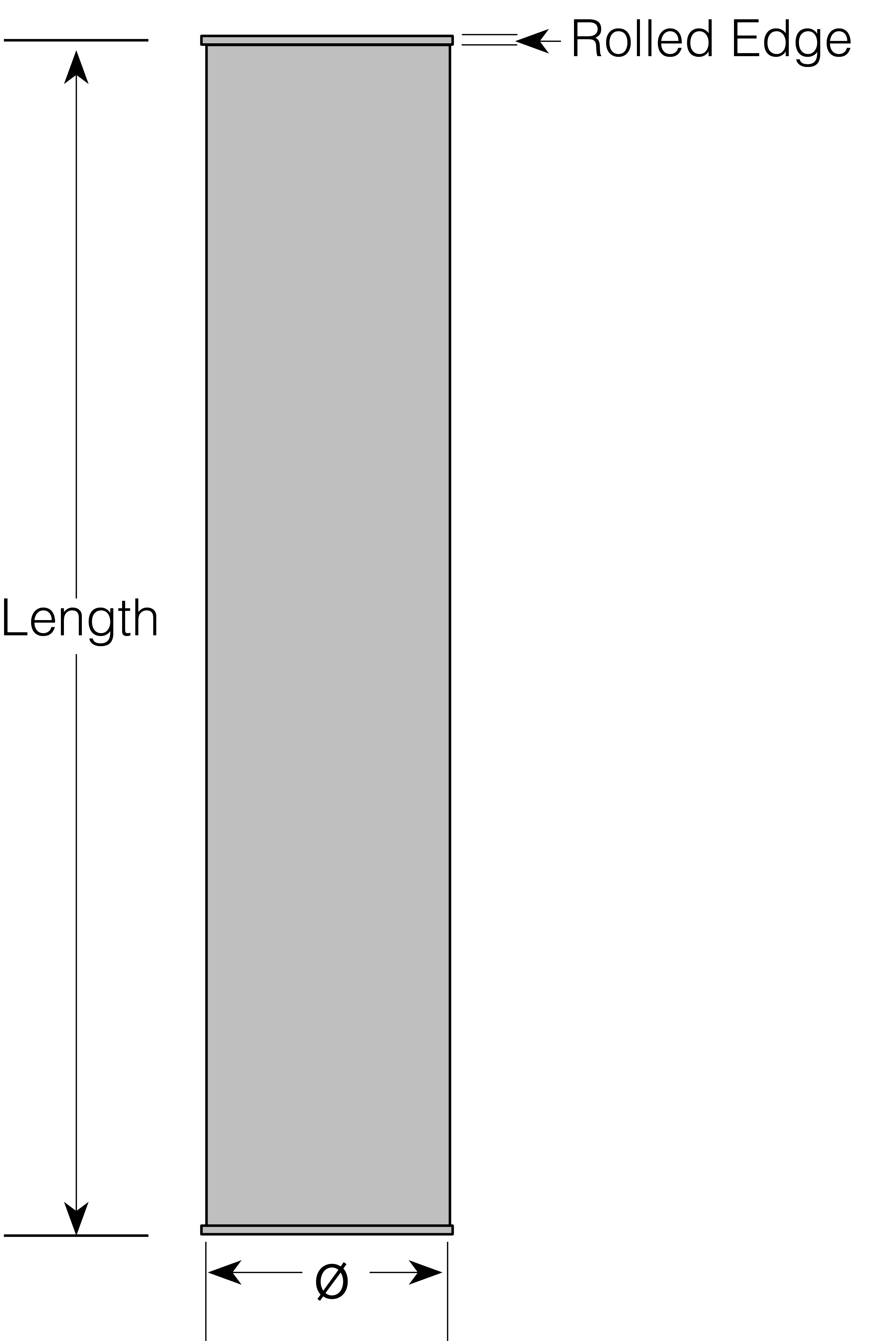

| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 0,7mm | 1200 | 2.3 | 8210008071 |
| 100 | Galv | 0,7mm | 1500 | 2,8 | 8210000906 |
| 125 | Galv | 0,7mm | 1500 | 3,4 | 8210000907 |
| 140 | Galv | 0,7mm | 1500 | 4 | 8210000908 |
| 150 | Galv | 0,7mm | 1500 | 4,2 | 8210000909 |
| 160 | Galv | 0,7mm | 1500 | 4,5 | 8210000910 |
| 180 | Galv | 0,7mm | 1500 | 5,1 | 8210000911 |
| 200 | Galv | 0,7mm | 1500 | 5,7 | 8210000912 |
| 224 | Galv | 0,7mm | 1500 | 6,2 | 8210000913 |
| 250 | Galv | 0,7mm | 1500 | 7,1 | 8210000914 |
| 280 | Galv | 0,7mm | 1500 | 8 | 8210008072 |
| 300 | Galv | 0,7mm | 1500 | 8,5 | 8210000915 |
| 315 | Galv | 0,7mm | 1500 | 8,8 | 8210000916 |
| 350 | Galv | 0,7mm | 1500 | 9,9 | 8210000917 |
| 400 | Galv | 0,9mm | 1500 | 13,6 | 8210000918 |
| 450 | Galv | 0,9mm | 1467 | 15,3 | 8210000919 |
| 500 | Galv | 0,9mm | 1467 | 17,54 | 8210000920 |
| 560 | Galv | 0,9mm | 1467 | 18,7 | 8210000921 |
| 630 | Galv | 0,9mm | 1467 | 21,6 | 8210000922 |
| 710 | Galv | 0,9mm | 1467 | 24,41 | 8210000923 |
| 80 | 304SS | 0,7mm | 1478 | 2,2 | 8210000945 |
| 100 | 304SS | 0,7mm | 1478 | 2,6 | 8210000946 |
| 125 | 304SS | 0,7mm | 1478 | 3,2 | 8210000947 |
| 140 | 304SS | 0,7mm | 1478 | 3,6 | 8210000948 |
| 150 | 304SS | 0,7mm | 1478 | 3,8 | 8210000949 |
| 160 | 304SS | 0,7mm | 1478 | 4,1 | 8210000950 |
| 180 | 304SS | 0,7mm | 1471 | 3,95 | 8210000951 |
| 200 | 304SS | 0,7mm | 1471 | 4,45 | 8210000952 |
| 224 | 304SS | 0,7mm | 1471 | 4,95 | 8210000953 |
| 250 | 304SS | 0,7mm | 1471 | 5,55 | 8210000954 |
| 300 | 304SS | 0,7mm | 1462 | 6,65 | 8210000955 |
| 315 | 304SS | 0,7mm | 1462 | 6,95 | 8210000956 |
| 350 | 304SS | 0,7mm | 1462 | 7,75 | 8210000957 |
| 400 | 304SS | 0,9mm | 1462 | 13,3 | 8210000958 |
| 450 | 304SS | 0,9mm | 1462 | 11,6 | 8210000959 |
| 500 | 304SS | 0,9mm | 1462 | 12,9 | 8210000960 |
| 560 | 304SS | 0,9mm | 1462 | 18,6 | 8210000961 |
| 630 | 304SS | 0,9mm | 1462 | 20,9 | 8210000962 |
| 710 | 304SS | 0,9mm | 1462 | 23,6 | 8210000963 |
